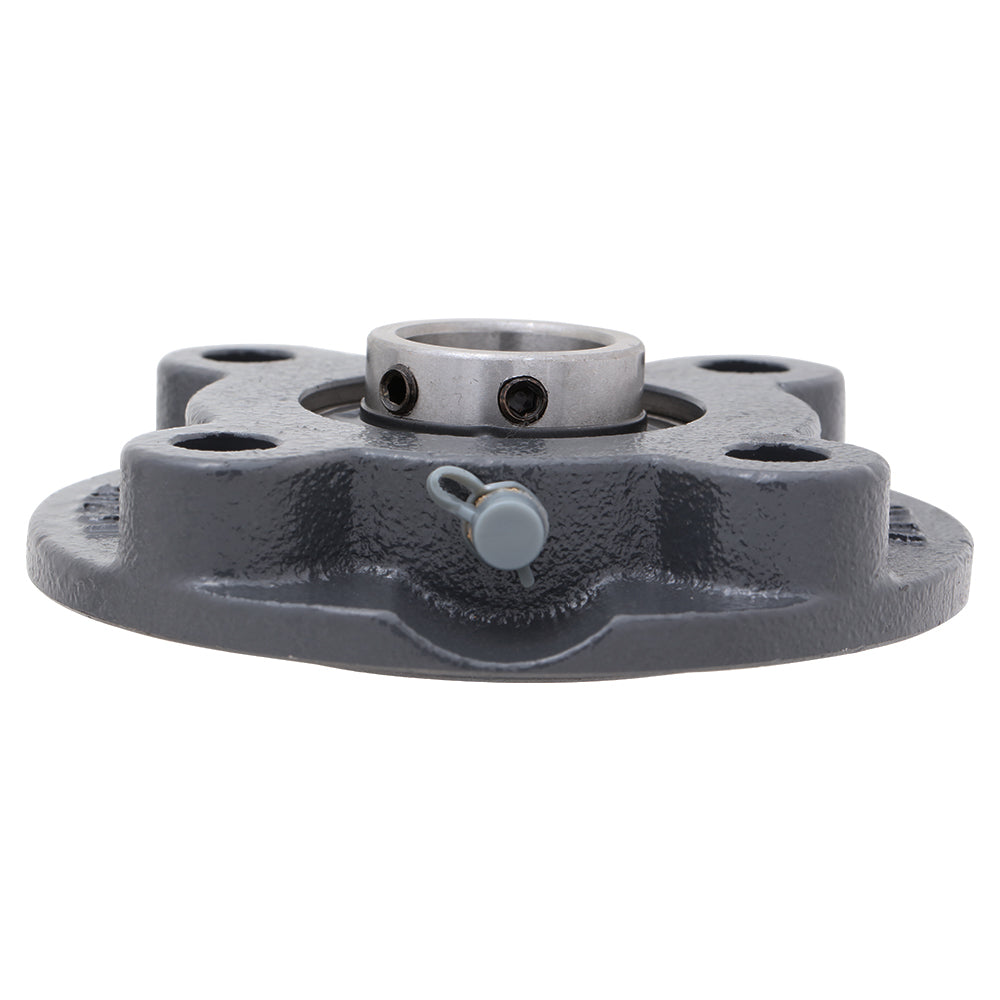

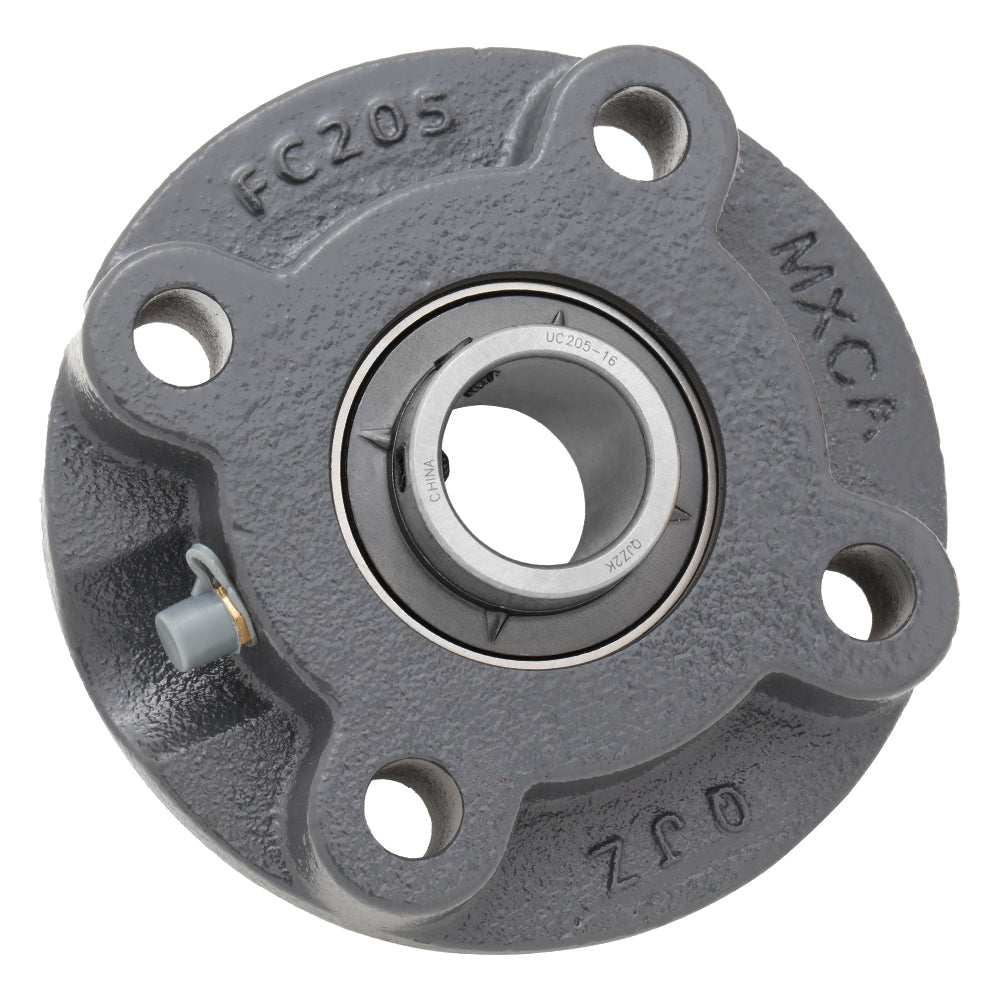

UCFC205, 4-Bolt Flange Mounted Ball Bearing, 0.984"Bore (ID), Insert Bearing: UC205, Housing: FC205

In stock
SKU: UCFC205
All of our mounted unit bearings are supplied fully assembled. Please contact us if you require a specific dimension that is not listed.
$17.99

Product details

  • Type Mounted Unit Bearings
    • Part Number UCFC205
    • Insert Bearing UC205
    • Housing FC205
    • Bore (ID) 0.98 in
    • Flange Length 4.528 in | 115 mm
    • Flange Height (Thickness) 1.169 in | 29.7 mm
Description

4-Bolt Flange Mounted Unit Ball Bearing

The UCFC series 4-bolt flange mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit features a round flange housing with secure locking insert bearing for stable mounting and long service life.

Part Number UCFC205
Shaft Bore (ID) 0.984 in | 25 mm
Bolt Circle Diameter 3.543 in | 90 mm
Height 1.169 in | 29.7 mm
Length 4.528 in | 115 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
