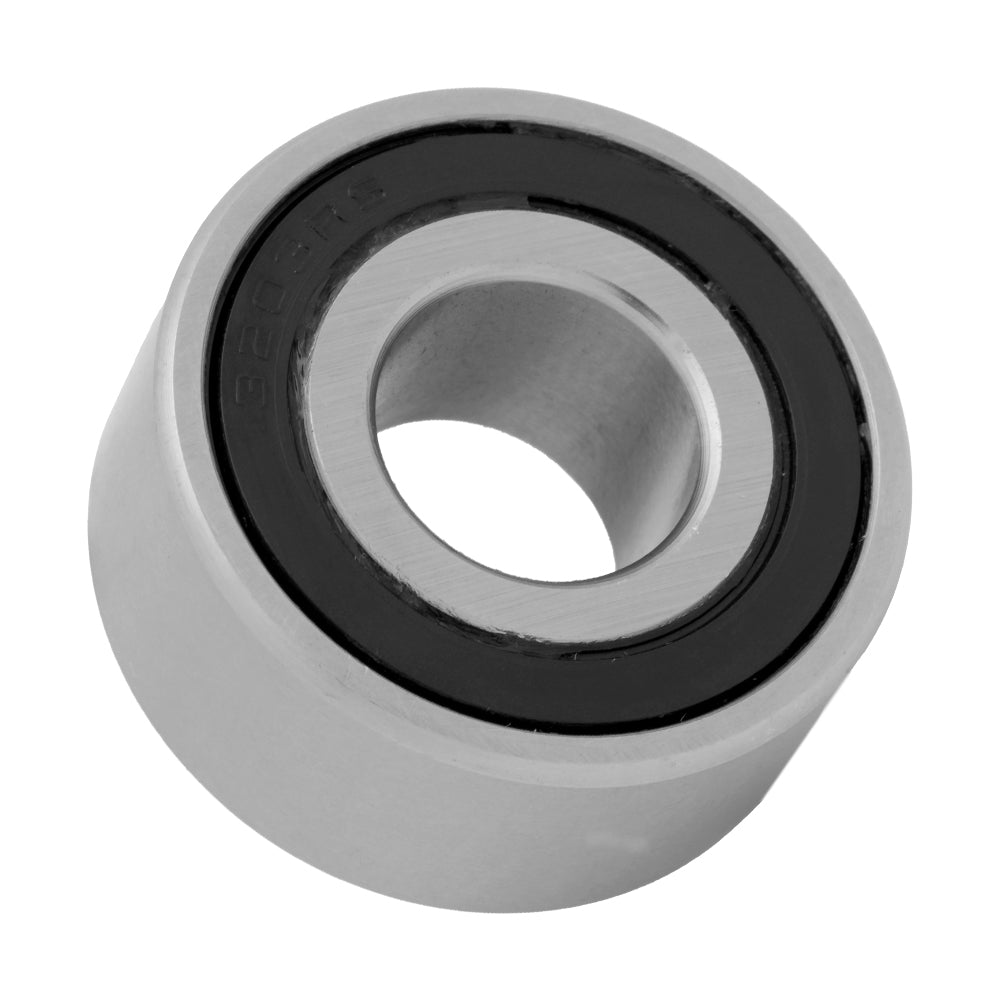

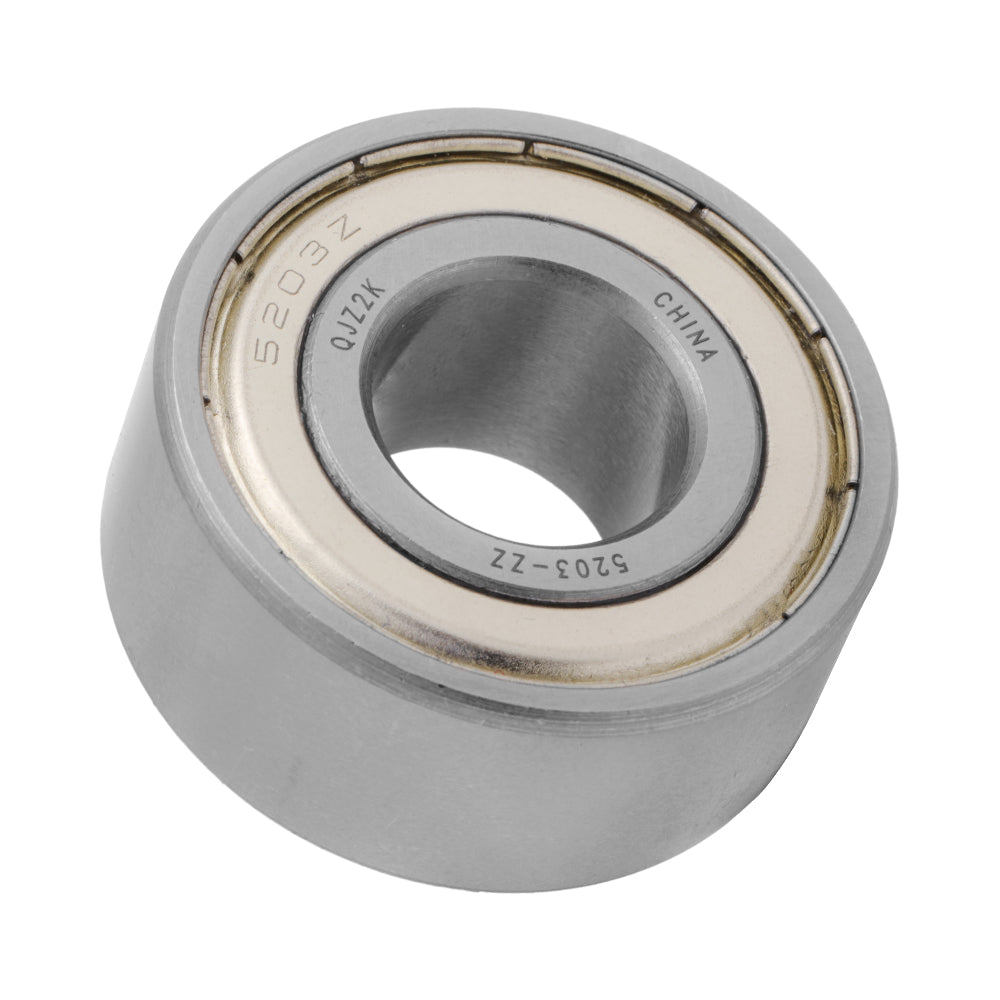

5203 - Angular Contact Ball Bearing

In stock
Seal Type
Please verify the ball bearing width. Open (no seal) bearings may have a different width than sealed versions.
We offer bundled pricing for all ball bearings. Discounts for packs of 2, 5, 10, 50, and 100 units are automatically applied at checkout.
$4.95
Product details
  • Type Ball Bearings
  • Part Number 5203
  • Bore (Inner Diameter) 0.669 in | 17 mm
  • Outer Diameter 1.575 in | 40 mm
  • Width 0.687 in | 17.462 mm
Description

Premium Angular Contact Ball Bearing Design

The 5000 series angular contact ball bearings are double-row bearings designed to support combined radial and axial loads. Their precision construction provides reliable performance, high load capacity, and smooth operation in a wide range of industrial and mechanical applications.

Part Number 5203
Inner Diameter (ID) 0.669 in | 17 mm
Outer Diameter (OD) 1.575 in | 40 mm
Width 0.687 in | 17.462 mm

Cross Reference (Interchangeable Numbers)

5203RS, 5203.2RSJ1, 5203.2RSR, 5203PP, 5203-2NSL, 5203DDU, 5203LLB, 5203LLU, 5203.2RU, 5203VV, 5203A2RS, 5203SBKZZ, 3203B.2RSR, 5203 2RS, 5203 RS, 5203Z, 5203.2ZJ1, 5203ZZ, 5203.2ZR, 5203.2Z, 5203KDD, 5203A2Z, 5203SBKFF, 55503, 5203KDD3, 3203B.2ZR, 5203A-2ZTN9, 3203B.2ZR.TVH, 5203BZZ, 3203.2Z, 3203B.2ZR.TNG, 3203B.2ZR.TNH, 3203A-2ZTN9, 3203B-2ZTNG, 3203B-2ZTNH, 5203 ZZ, 5203 Z



Applications

  • Electric motors
  • Pumps and compressors
  • Gearboxes and transmissions
  • Machine tool spindles
  • General industrial machinery
