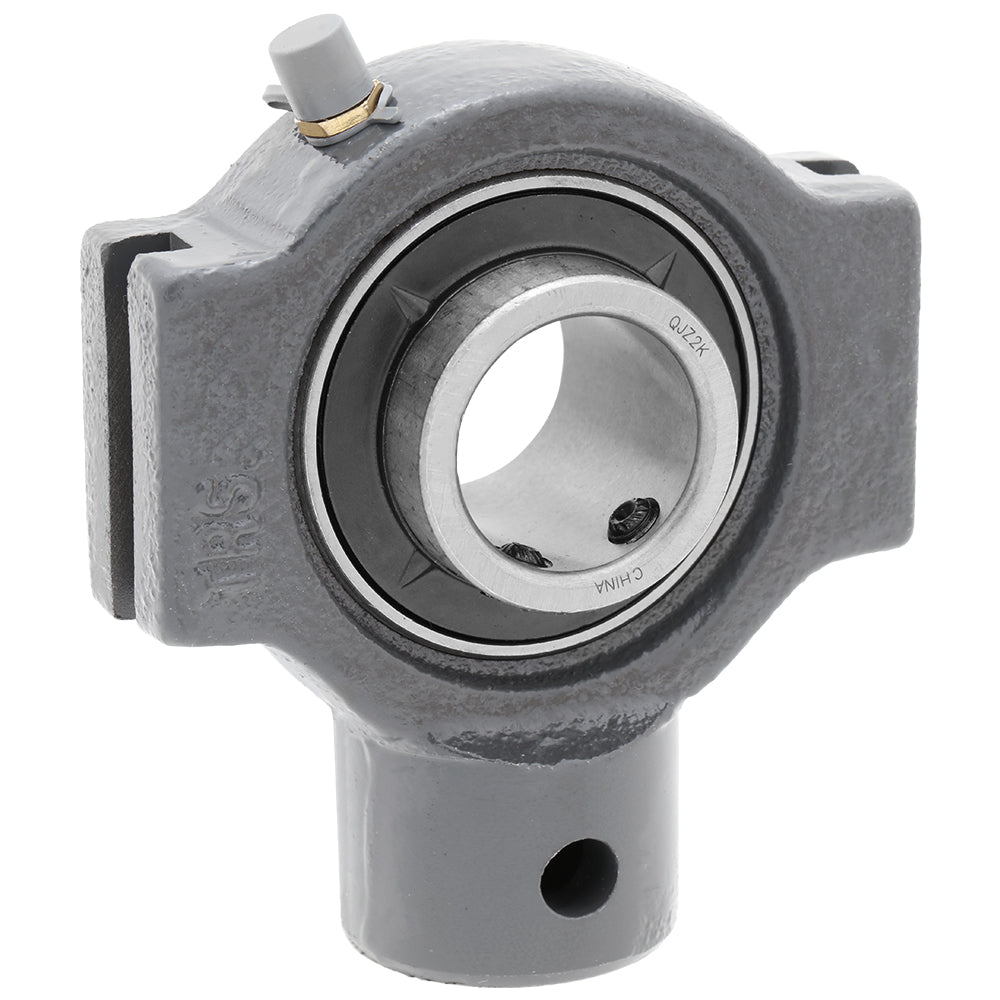

UCTRS208-25, Take-Up Mounted Unit Bearing, 1.5625 in Bore (ID), Insert Bearing: UC208-25, Housing: TRS208
All of our mounted unit bearings are provided fully assembled. Should you require to receive insert bearing and housing separately, please contact us for assistance.
Regular price
$27.99
Couldn't load pickup availability
Take-Up Unit Bearing
The UC series Take-Up Unit Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and take-up housing with set-screw locking for secure shaft attachment, easy installation, and long service life. Includes lubrication hole on the outer surface of the bearing.
| Part Number | UCTRS208-25 |
|---|---|
| Shaft Bore (ID) | 1.563 in | 39.688 mm |
| Length | 1.181 in | 30 mm |
| Height | 5.394 in | 137 mm |
| Width | 4 in | 101.6 mm |
| Slot Width | 0.311 in | 7.9 mm |
| Slot to Slot Distance | 2.992 in | 76 mm |
| Rod End Diameter | 0.748 in | 19 mm |
| Base to Center | 1.181 in | 30 mm |
| Insert Bearing | UC208-25 |
| Housing | TRS208 |
Applications
- Conveyor systems
- Agricultural machinery
- Material handling
- General industrial machinery
