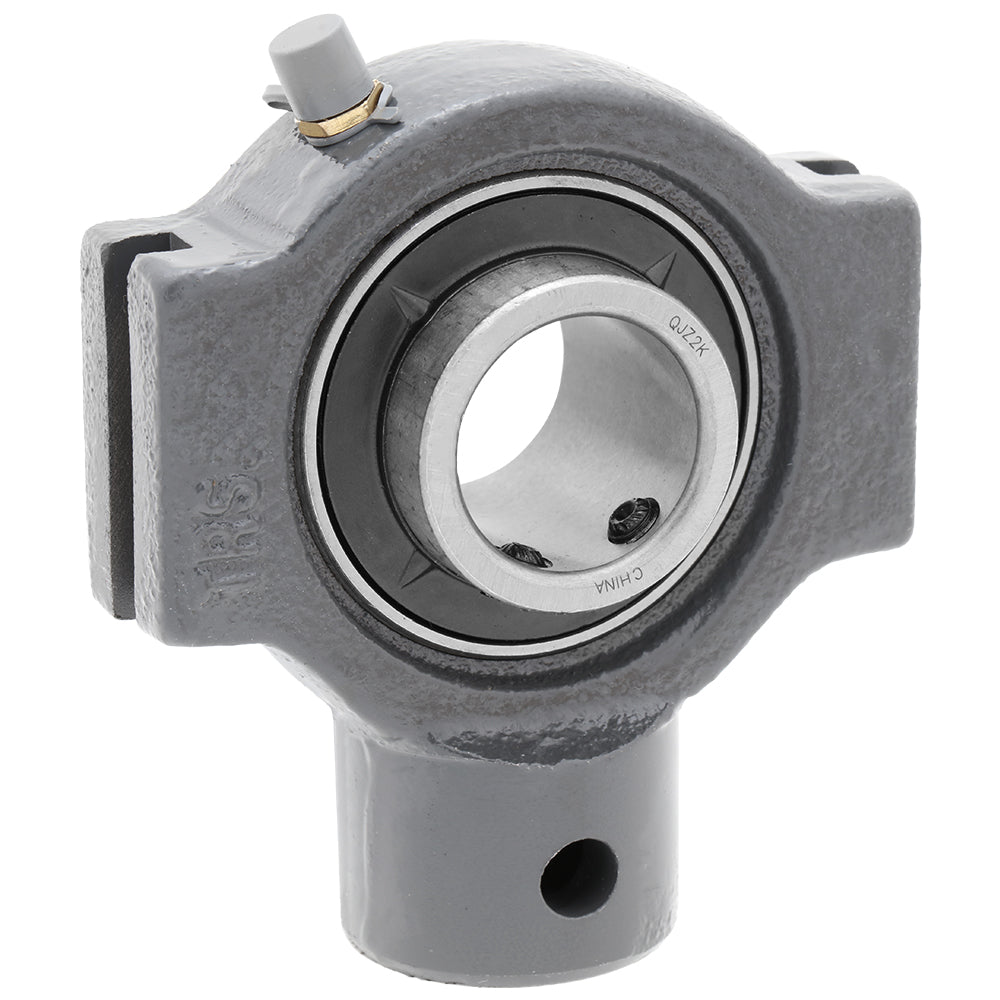

UCTRS207, Take-Up Mounted Unit Bearing, 1.378 in Bore (ID), Insert Bearing: UC207, Housing: TRS207
All of our mounted unit bearings are provided fully assembled. Should you require to receive insert bearing and housing separately, please contact us for assistance.
Regular price
$22.95
Couldn't load pickup availability
Take-Up Unit Bearing
The UC series Take-Up Unit Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and take-up housing with set-screw locking for secure shaft attachment, easy installation, and long service life. Includes lubrication hole on the outer surface of the bearing.
| Part Number | UCTRS207 |
|---|---|
| Shaft Bore (ID) | 1.378 in | 35 mm |
| Length | 0.984 in | 25 mm |
| Height | 4.488 in | 114 mm |
| Width | 3.5 in | 88.9 mm |
| Slot Width | 0.311 in | 7.9 mm |
| Slot to Slot Distance | 2.52 in | 64 mm |
| Rod End Diameter | 0.689 in | 17.5 mm |
| Base to Center | 0.984 in | 25 mm |
| Insert Bearing | UC207 |
| Housing | TRS207 |
Applications
- Conveyor systems
- Agricultural machinery
- Material handling
- General industrial machinery
