UCTRS206-20, Take-Up Mounted Unit Bearing, 1.25 in Bore (ID), Insert Bearing: UC206-20, Housing: TRS206

Out of stock
SKU: UCTRS206-20
All of our mounted unit bearings are provided fully assembled. Should you require to receive insert bearing and housing separately, please contact us for assistance.
$17.75
Product details
  • Type Mounted Unit Bearings
  • Part Number UCTRS206-20
  • Housing TRS206
  • Insert Bearing UC206-20
  • Bore 1.25 in | 31.75 mm
  • Height 4.331 in | 110 mm
  • Length 0.945 in | 24 mm
  • Width 3.5 in | 88.9 mm
  • Slot to Slot 2.52 in | 64 mm

Please contact us if you are unsure about the fitment.

Description

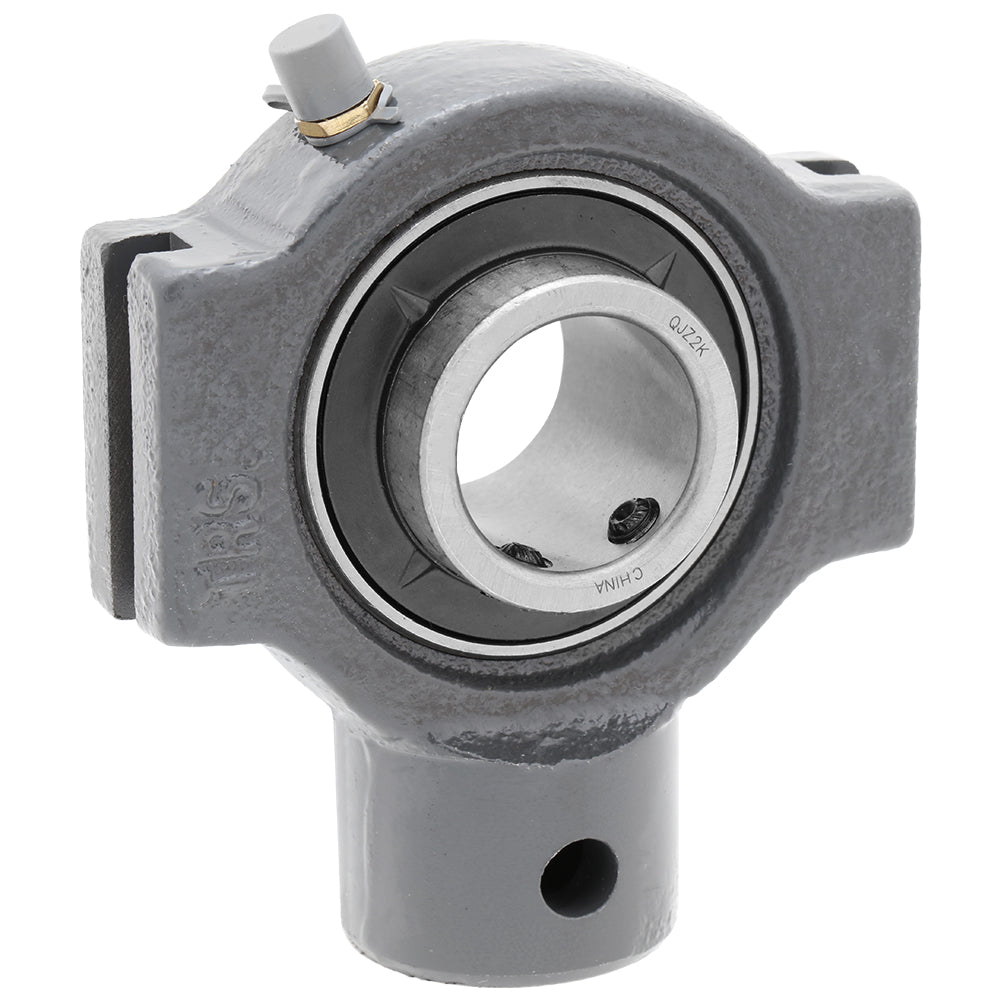

Take-Up Unit Bearing

The UC series Take-Up Unit Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and take-up housing with set-screw locking for secure shaft attachment, easy installation, and long service life. Includes lubrication hole on the outer surface of the bearing.

Part Number UCTRS206-20
Shaft Bore (ID) 1.25 in | 31.75 mm
Length 0.945 in | 24 mm
Height 4.331 in | 110 mm
Width 3.5 in | 88.9 mm
Slot Width 0.311 in | 7.9 mm
Slot to Slot Distance 2.52 in | 64 mm
Rod End Diameter 0.626 in | 15.9 mm
Base to Center 0.945 in | 24 mm
Insert Bearing UC206-20
Housing TRS206


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
