UCTRS205-16, Take-Up Mounted Unit Bearing, 1 in Bore (ID), Insert Bearing: UC205-16, Housing: TRS205

In stock
SKU: UCTRS205-16
All of our mounted unit bearings are provided fully assembled. Should you require to receive insert bearing and housing separately, please contact us for assistance.
$19.50
Product details
  • Type Mounted Unit Bearings
  • Part Number UCTRS205-16
  • Housing TRS205
  • Insert Bearing UC205-16
  • Bore 1 in | 25.4 mm
  • Height 3.583 in | 91 mm
  • Length 0.866 in | 22 mm
  • Width 2.626 in | 66.7 mm
  • Slot to Slot 1.496 in | 38 mm

Please contact us if you are unsure about the fitment.

Description

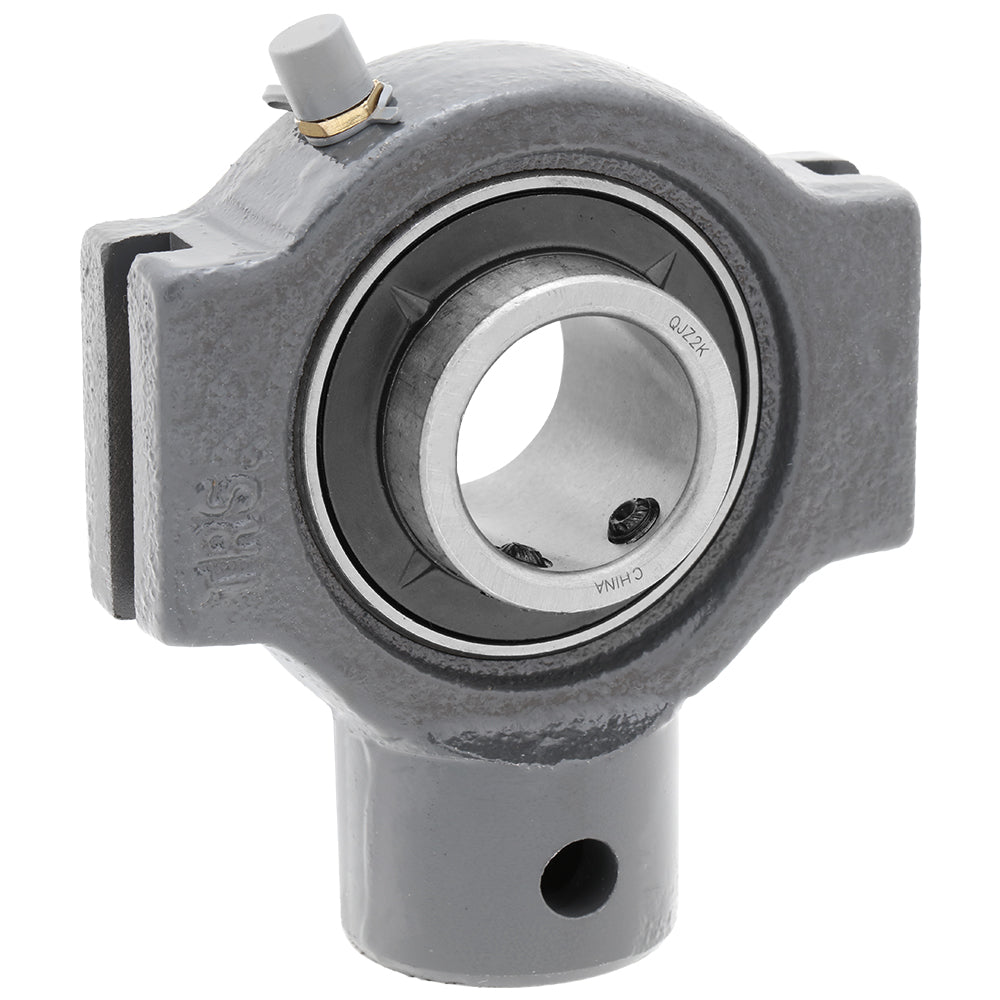

Take-Up Unit Bearing

The UC series Take-Up Unit Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and take-up housing with set-screw locking for secure shaft attachment, easy installation, and long service life. Includes lubrication hole on the outer surface of the bearing.

Part Number UCTRS205-16
Shaft Bore (ID) 1 in | 25.4 mm
Length 0.866 in | 22 mm
Height 3.583 in | 91 mm
Width 2.626 in | 66.7 mm
Slot Width 0.252 in | 6.4 mm
Slot to Slot Distance 1.496 in | 38 mm
Rod End Diameter 0.563 in | 14.3 mm
Base to Center 0.866 in | 22 mm
Insert Bearing UC205-16
Housing TRS205


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
