UCT210-31, Take-Up Mounted Unit Bearing, 1.938 in Bore (ID), Insert Bearing: UC210-31, Housing: T210
All of our mounted unit bearings are provided fully assembled. Should you require to receive insert bearing and housing separately, please contact us for assistance.
Regular price
$35.99
Couldn't load pickup availability

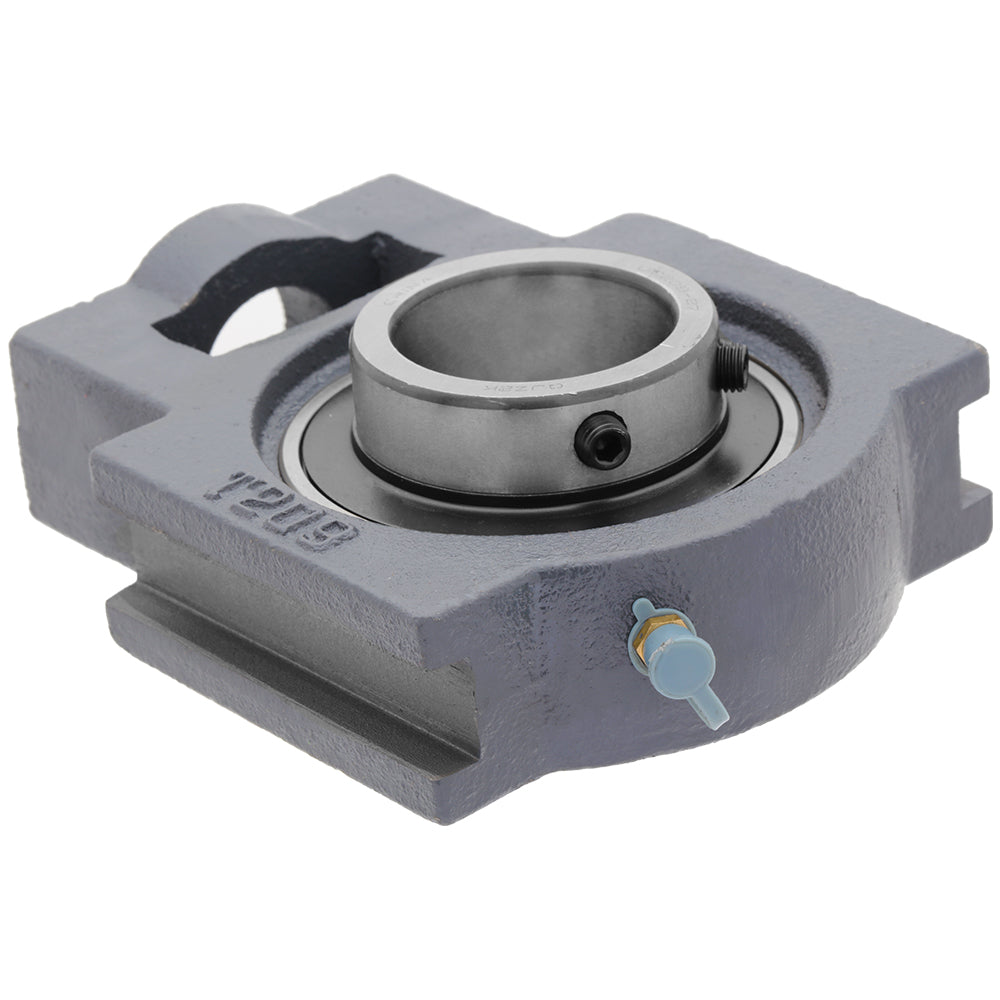

Take-Up Mounted Unit Bearing
The HC Series Take-Up Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with eccentric locking collar for secure shaft attachment, easy installation, and long service life.
| Part Number | UCT210-31 |
|---|---|
| Bore ID | 1.938 in | 49.213 mm |
| Height | 5.866 in | 149 mm |
| Width | 1.457 in | 37 mm |
| Slot to Slot | 4.016 in | 102 mm |
| Slot Length | 3.386 in | 86 mm |
| Length | 4.606 in | 117 mm |
| Adjustment Screw Bore | 1.142 in | 29 mm |
Applications
- Conveyor systems
- Agricultural machinery
- Material handling
- General industrial machinery
