UCT206-20, Take-Up Mounted Unit Bearing, 1.25 in Bore (ID), Insert Bearing: UC206-20, Housing: T206

In stock
SKU: UCT206-20
All of our mounted unit bearings are provided fully assembled. Should you require to receive insert bearing and housing separately, please contact us for assistance.
$15.50
Product details
  • Type Mounted Unit Bearings
  • Part Number UCT206-20
  • Housing T206
  • Insert Bearing UC206-20
  • Bore 1.25 in | 31.75 mm
  • Height 4.449 in | 113 mm
  • Length 4.016 in | 102 mm
  • Width 1.102 in | 28 mm
  • Slot to Slot 3.504 in | 89 mm

Please contact us if you are unsure about the fitment.

Description

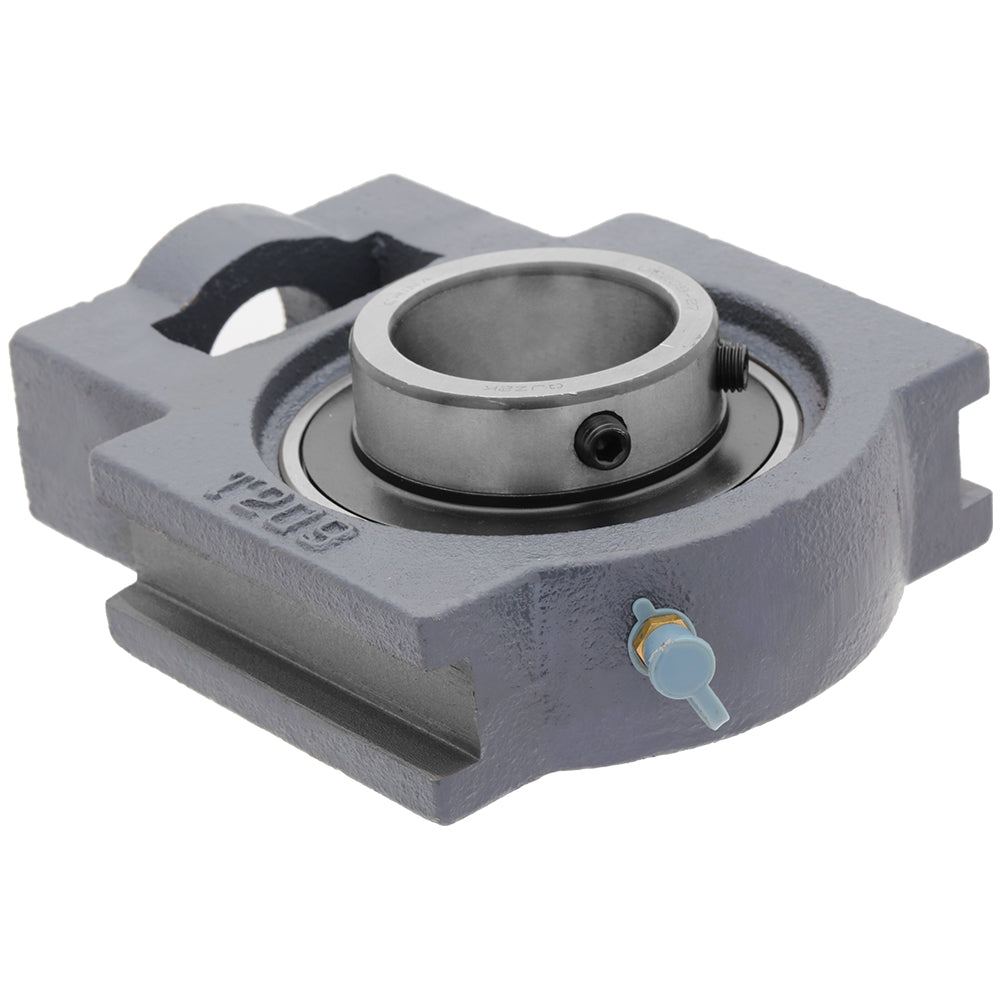

Take-Up Mounted Unit Bearing

The HC Series Take-Up Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with eccentric locking collar for secure shaft attachment, easy installation, and long service life.

Part Number UCT206-20
Bore ID 1.25 in | 31.75 mm
Height 4.449 in | 113 mm
Width 1.102 in | 28 mm
Slot to Slot 3.504 in | 89 mm
Slot Length 2.244 in | 57 mm
Length 4.016 in | 102 mm
Adjustment Screw Bore 0.866 in | 22 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
