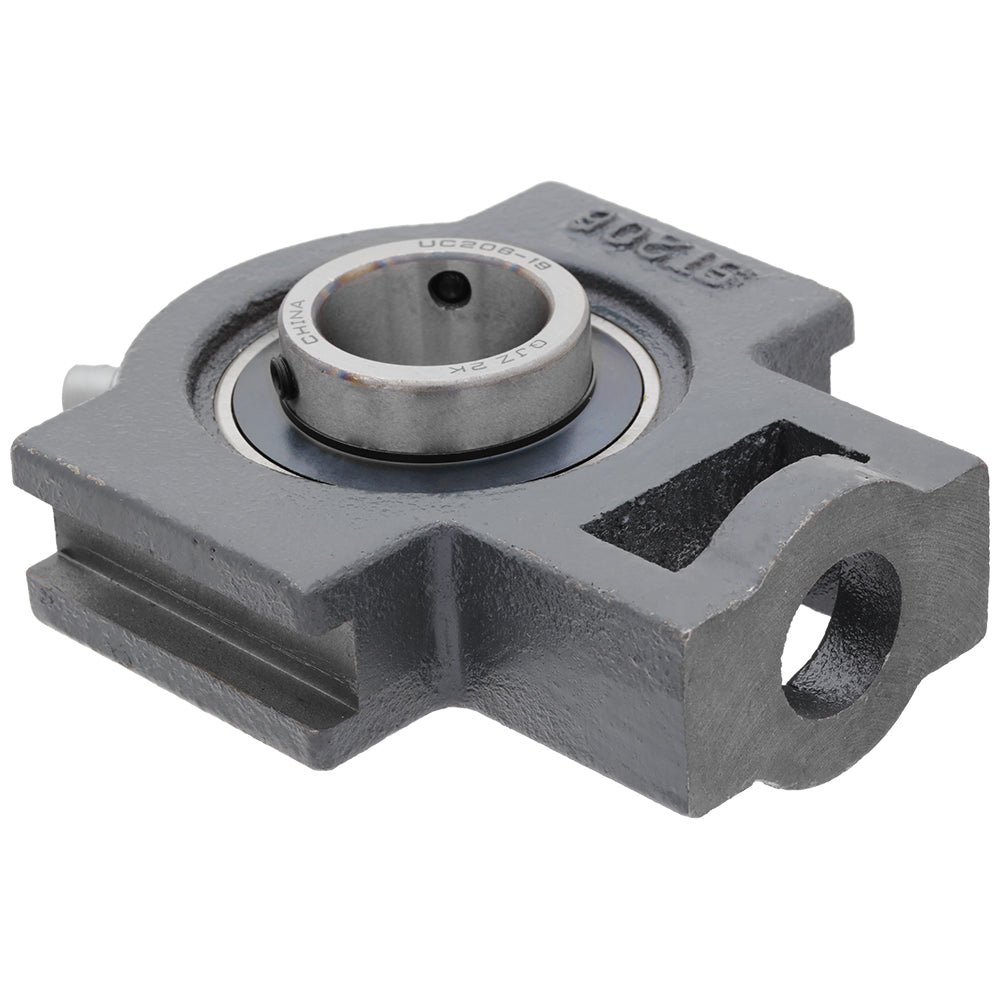

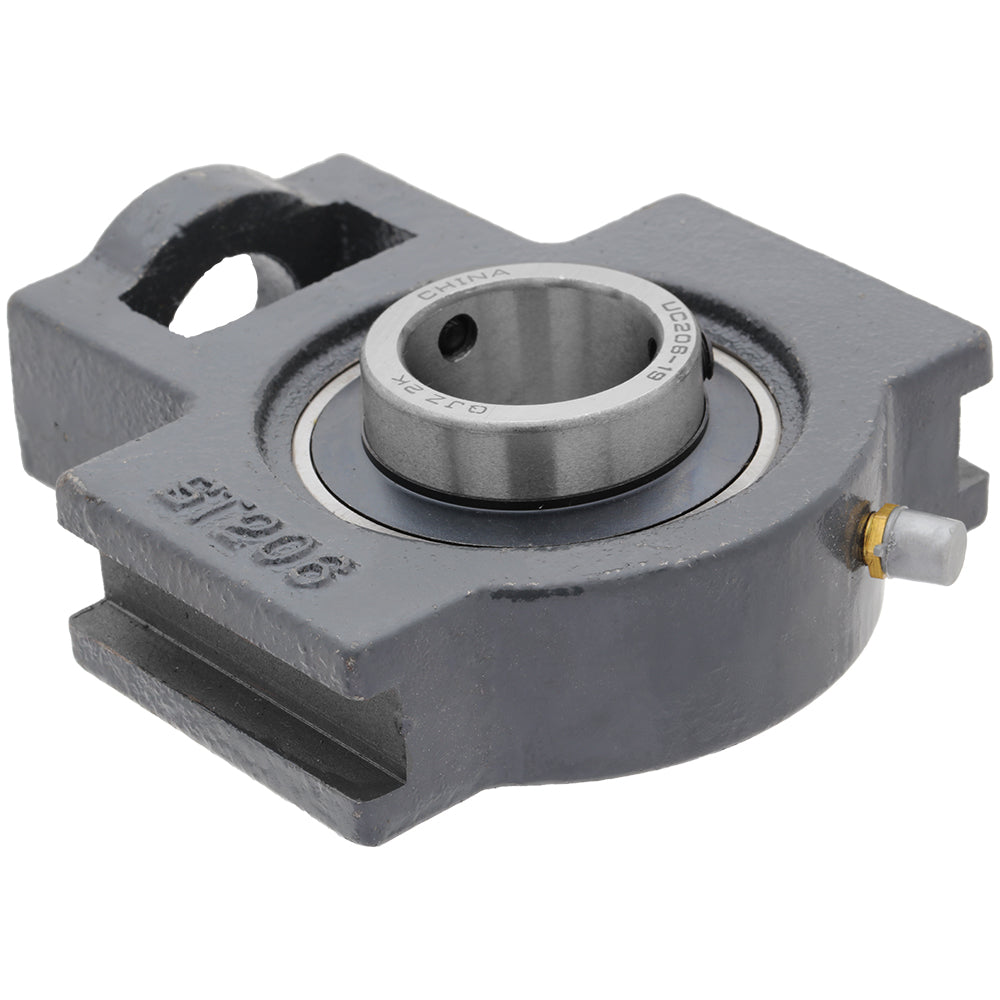

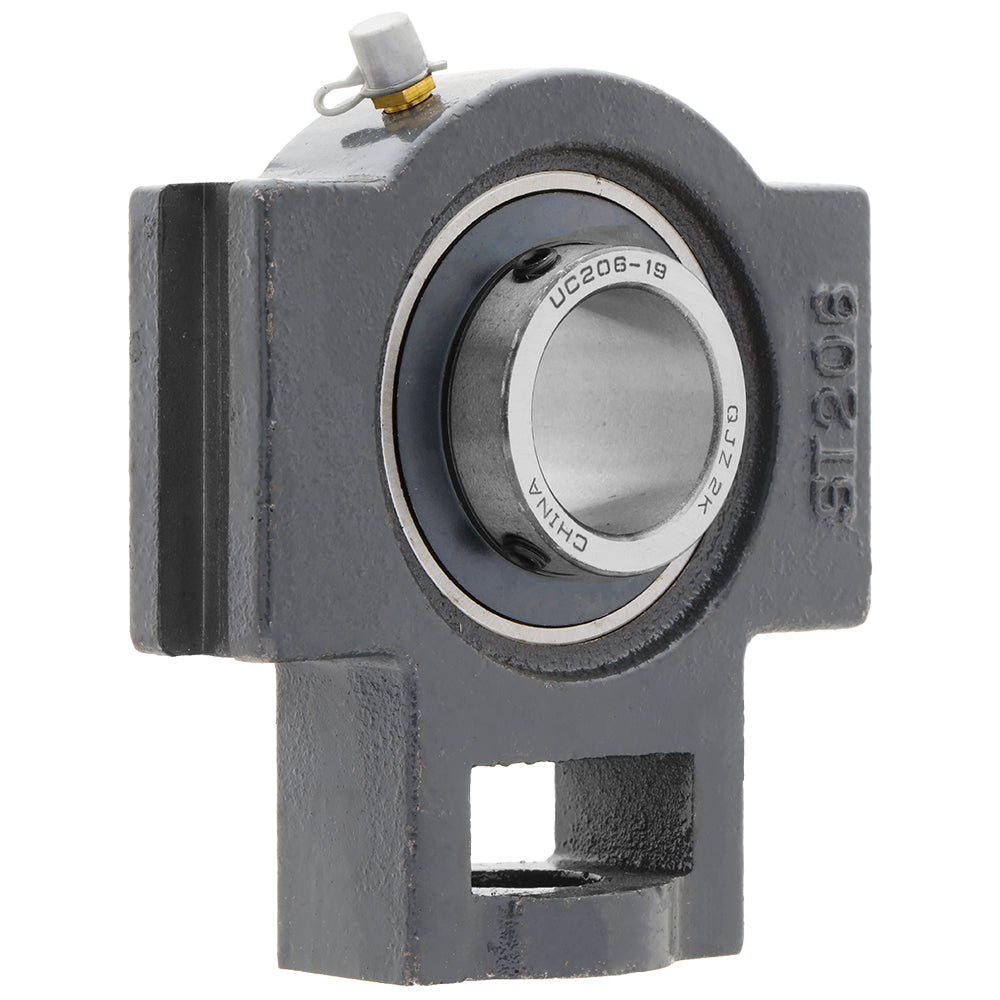

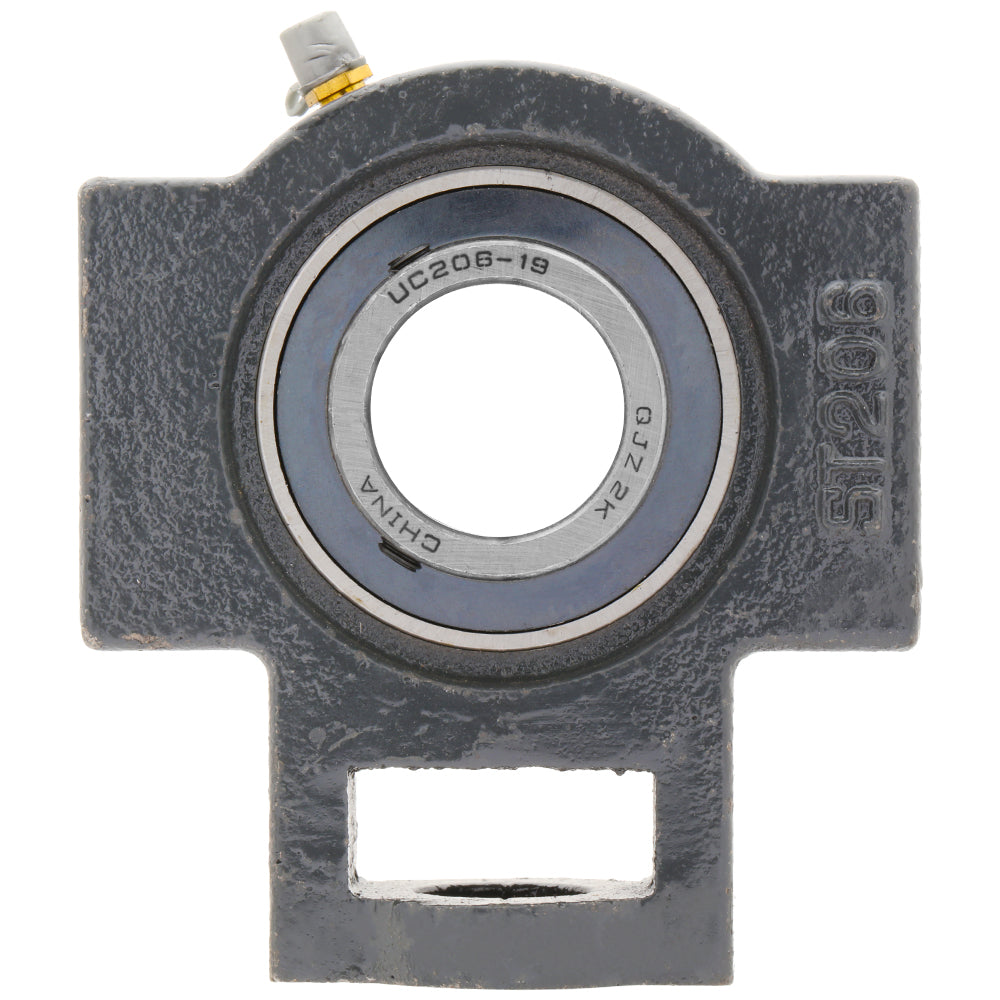

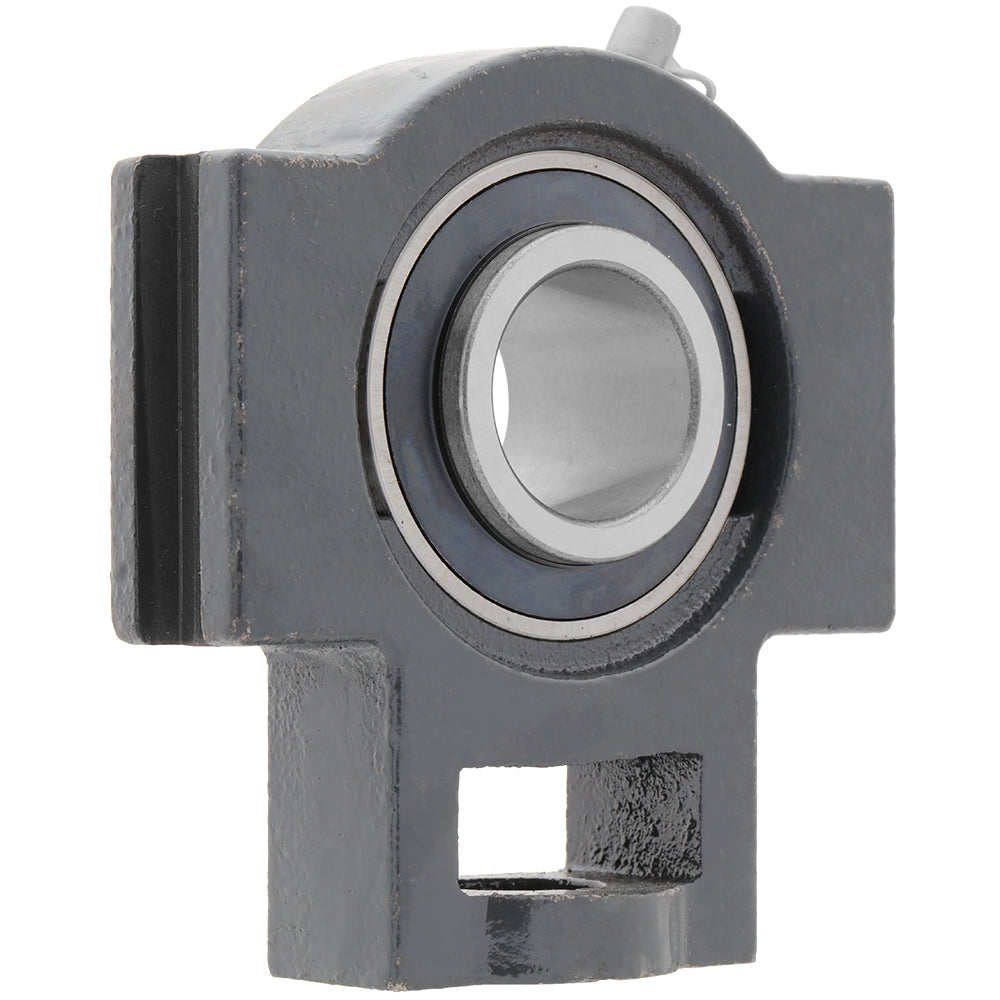

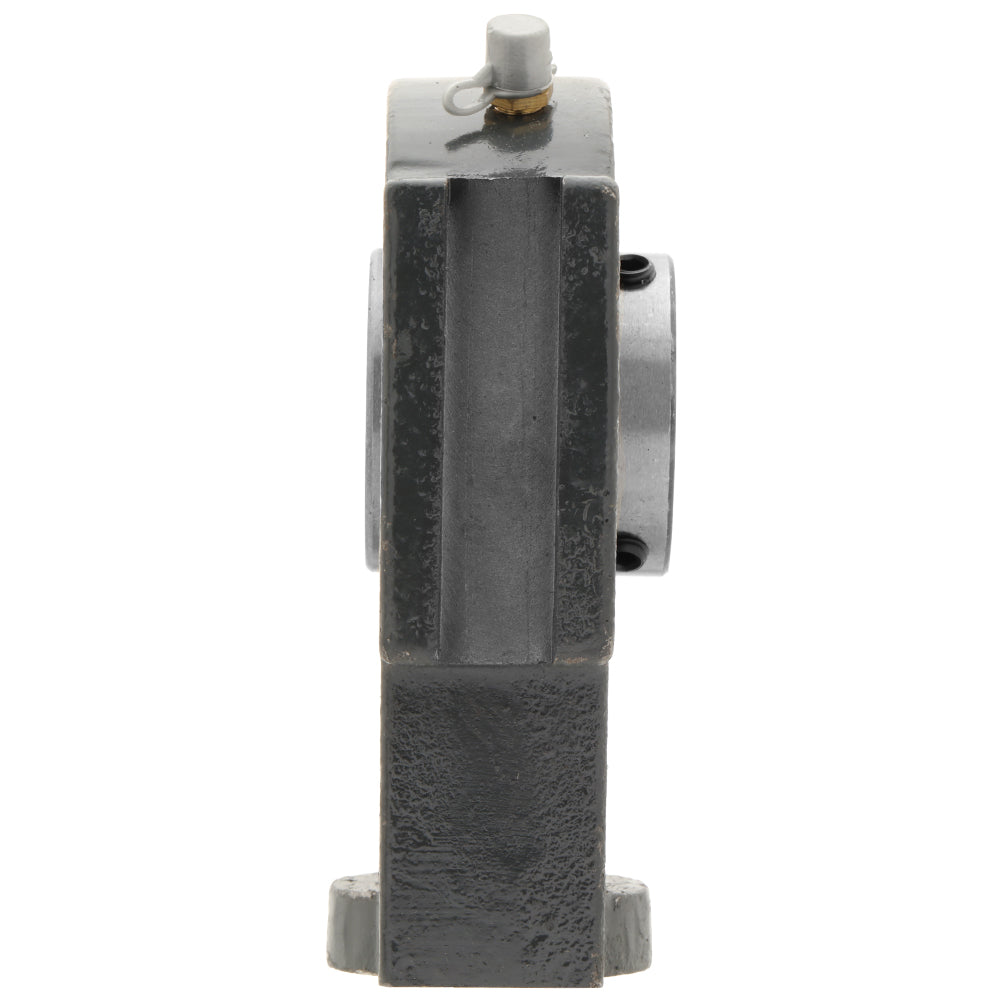

UCT206-19, Take-Up Mounted Unit Bearing, 1.188 in Bore (ID), Insert Bearing: UC206-19, Housing: T206
All of our mounted unit bearings are provided fully assembled. Should you require to receive insert bearing and housing separately, please contact us for assistance.
Regular price
$15.50
Couldn't load pickup availability
Take-Up Mounted Unit Bearing
The HC Series Take-Up Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with eccentric locking collar for secure shaft attachment, easy installation, and long service life.
| Part Number | UCT206-19 |
|---|---|
| Bore ID | 1.188 in | 30.163 mm |
| Height | 4.449 in | 113 mm |
| Width | 1.102 in | 28 mm |
| Slot to Slot | 3.504 in | 89 mm |
| Slot Length | 2.244 in | 57 mm |
| Length | 4.016 in | 102 mm |
| Adjustment Screw Bore | 0.866 in | 22 mm |
Applications
- Conveyor systems
- Agricultural machinery
- Material handling
- General industrial machinery
