QJZ

UCT205-16, Take-Up Mounted Unit Bearing, 1 in Bore (ID), Insert Bearing: UC205-16, Housing: T205

In stock
SKU: UCT205-16
All of our mounted unit bearings are provided fully assembled. Should you require to receive insert bearing and housing separately, please contact us for assistance.
$15.50
Product details
  • Type Mounted Unit Bearings
  • Part Number UCT205-16
  • Housing T205
  • Insert Bearing UC205-16
  • Bore 1 in | 25.4 mm
  • Height 3.819 in | 97 mm
  • Length 3.504 in | 89 mm
  • Width 0.945 in | 24 mm
  • Slot to Slot 2.992 in | 76 mm

Please contact us if you are unsure about the fitment.

Description

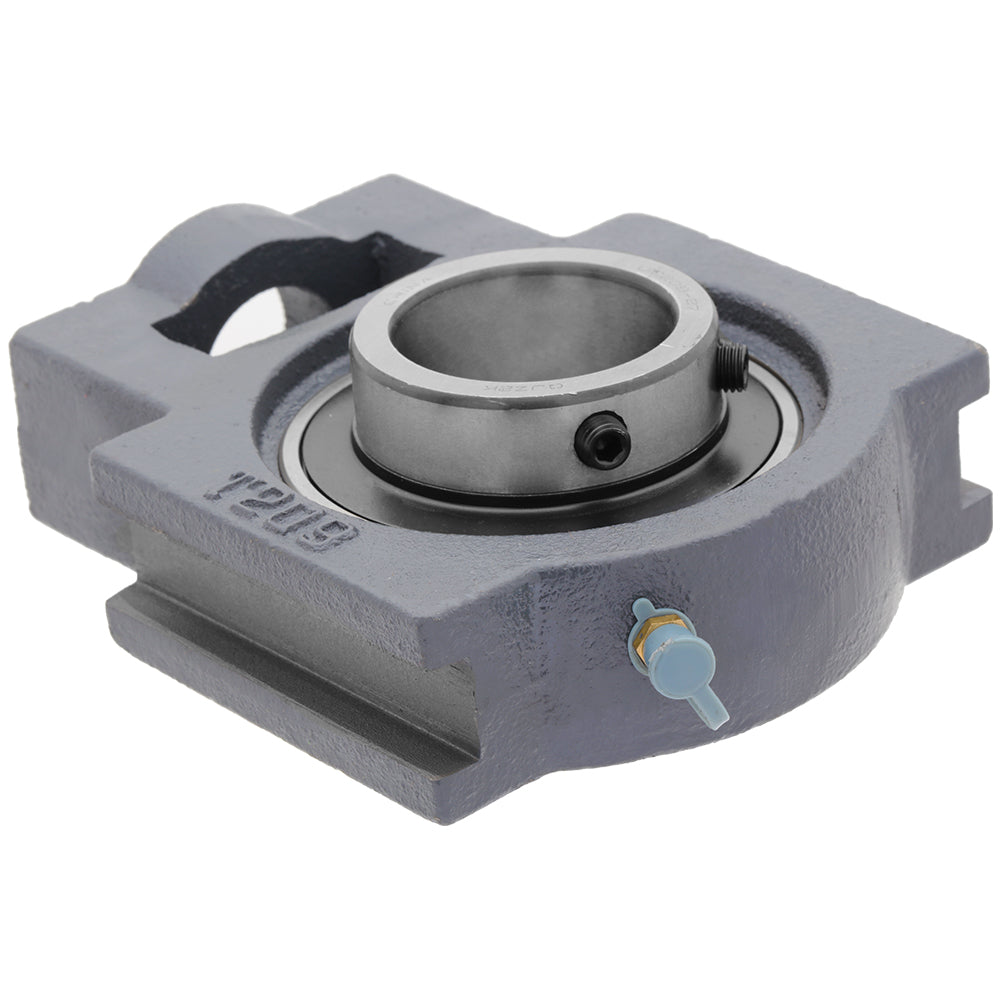

Take-Up Mounted Unit Bearing

The HC Series Take-Up Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with eccentric locking collar for secure shaft attachment, easy installation, and long service life.

Part Number UCT205-16
Bore ID 1 in | 25.4 mm
Height 3.819 in | 97 mm
Width 0.945 in | 24 mm
Slot to Slot 2.992 in | 76 mm
Slot Length 2.008 in | 51 mm
Length 3.504 in | 89 mm
Adjustment Screw Bore 0.748 in | 19 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
