UCT202-10, Take-Up Mounted Unit Bearing, 0.625 in Bore (ID), Insert Bearing: UC202-10, Housing: T203

Out of stock
SKU: UCT202-10
All of our mounted unit bearings are provided fully assembled. Should you require to receive insert bearing and housing separately, please contact us for assistance.
$16.95
Product details
  • Type Mounted Unit Bearings
  • Part Number UCT202-10
  • Housing T203
  • Insert Bearing UC202-10
  • Bore 0.625 in | 15.875 mm
  • Height 3.465 in | 88 mm
  • Length 3.228 in | 82 mm
  • Width 0.827 in | 21 mm
  • Slot to Slot 2.756 in | 70 mm

Please contact us if you are unsure about the fitment.

Description

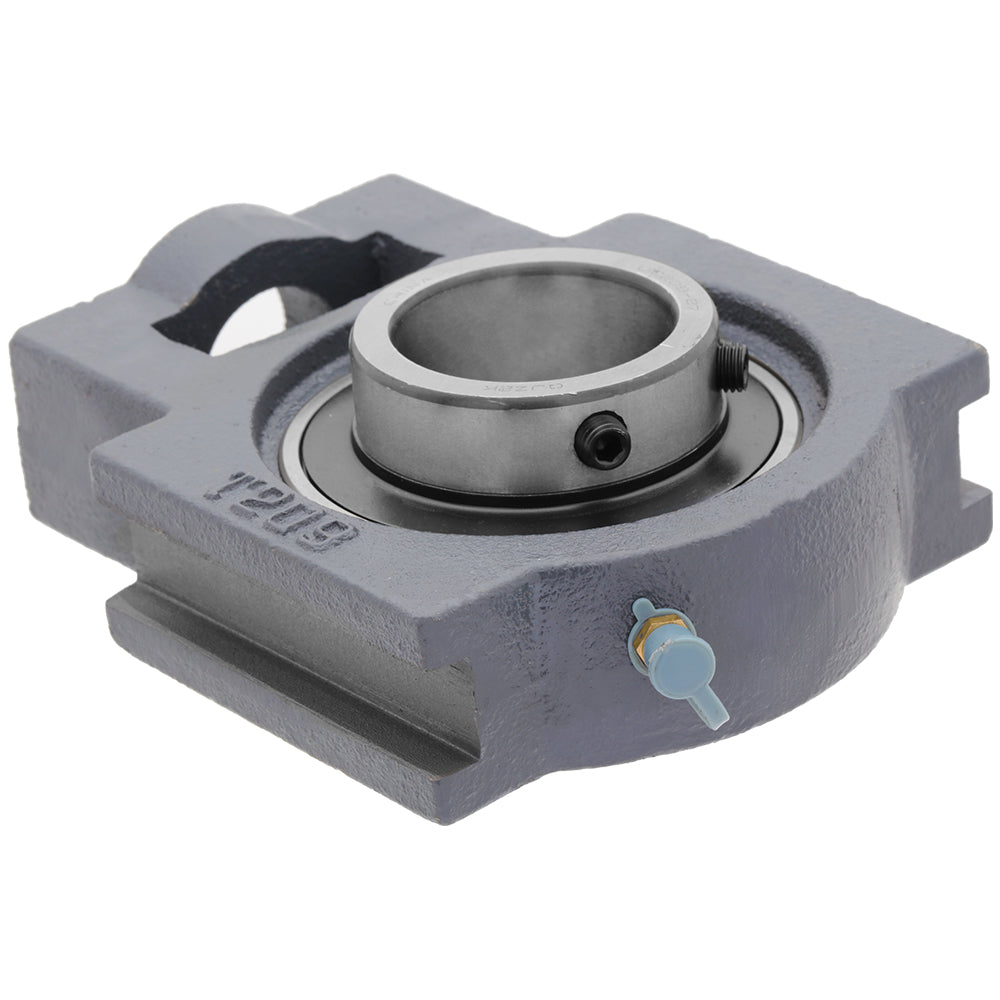

Take-Up Mounted Unit Bearing

The HC Series Take-Up Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with eccentric locking collar for secure shaft attachment, easy installation, and long service life.

Part Number UCT202-10
Bore ID 0.625 in | 15.875 mm
Height 3.465 in | 88 mm
Width 0.827 in | 21 mm
Slot to Slot 2.756 in | 70 mm
Slot Length 1.811 in | 46 mm
Length 3.228 in | 82 mm
Adjustment Screw Bore 0.709 in | 18 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
