UCPP207-20, Pressed Steel Pillow Block Mounted Unit Bearing, 1.25 in Bore (ID), Insert Bearing: UC207-20, Housing: PP207
Regular price
$15.75
Couldn't load pickup availability

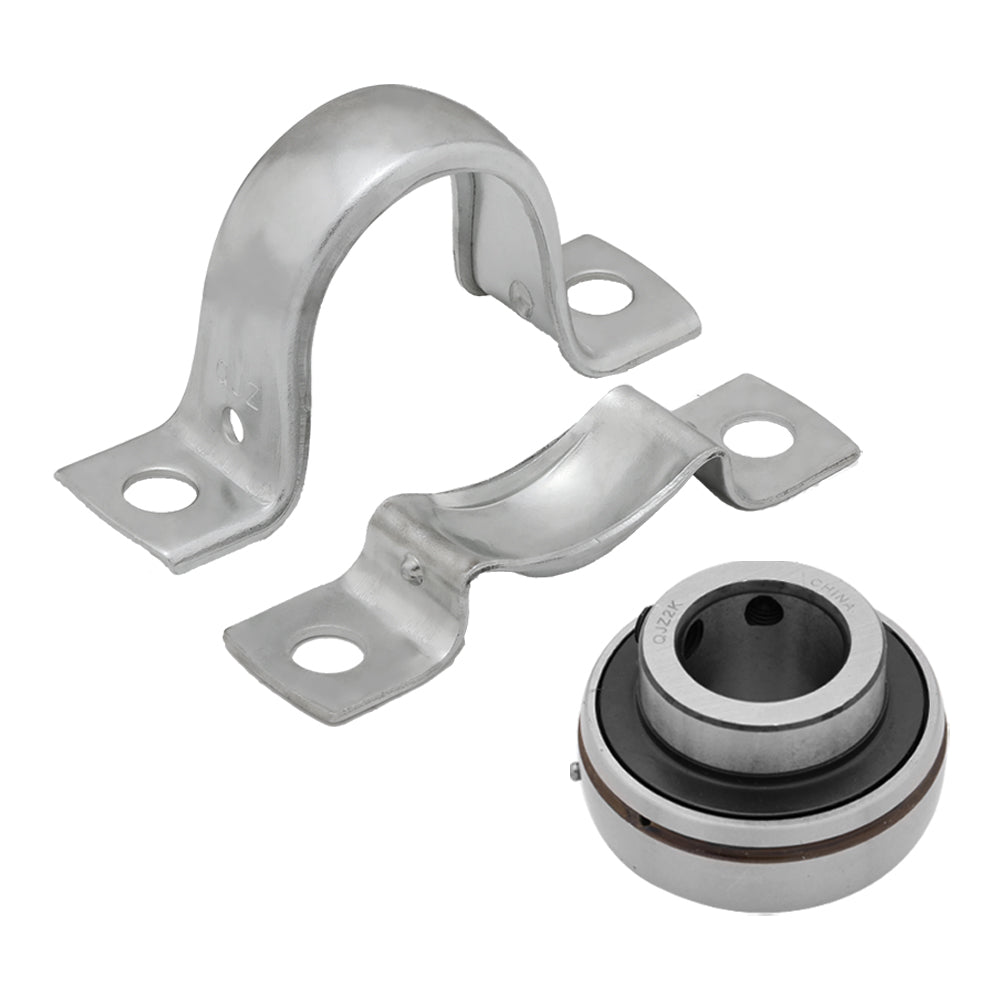

Pressed Steel Pillow Block Mounted Unit Bearing
The UC Series Pillow Block flangette mounted bearing provide reliable shaft support for machinery and agricultural equipment. Each unit comes with an insert bearing and housing with locking set screw for secure shaft attachment, easy installation, and long service life.
| Part Number | UCPP207-20 |
|---|---|
| Bore ID | 1.25 in | 31.75 mm |
| Length | 5.748 in | 146 mm |
| Width | 1.2992 in | 33 mm |
| Height | 3.1102 in | 79 mm |
| Bolt to Bolt | 4.252 in | 108 mm |
Applications
- Conveyor systems
- Agricultural machinery
- Material handling
- General industrial machinery
