UCPP206-22, Pressed Steel Pillow Block Mounted Unit Bearing, 1.25 in Bore (ID), Insert Bearing: UC206-20 R3 P6V2, Housing: PP206

In stock
$15.75
Product details
  • Type Mounted Unit Bearings
  • Part Number UCPP206-22
  • Housing PP206
  • Insert Bearing UC206-20 R3 P6V2
  • Bore (ID) 1.25 in | 31.75 mm
  • Height 2.6378 in | 67 mm
  • Length 4.882 in | 124 mm
  • Bolt to Bolt 3.74 in | 95 mm
Description

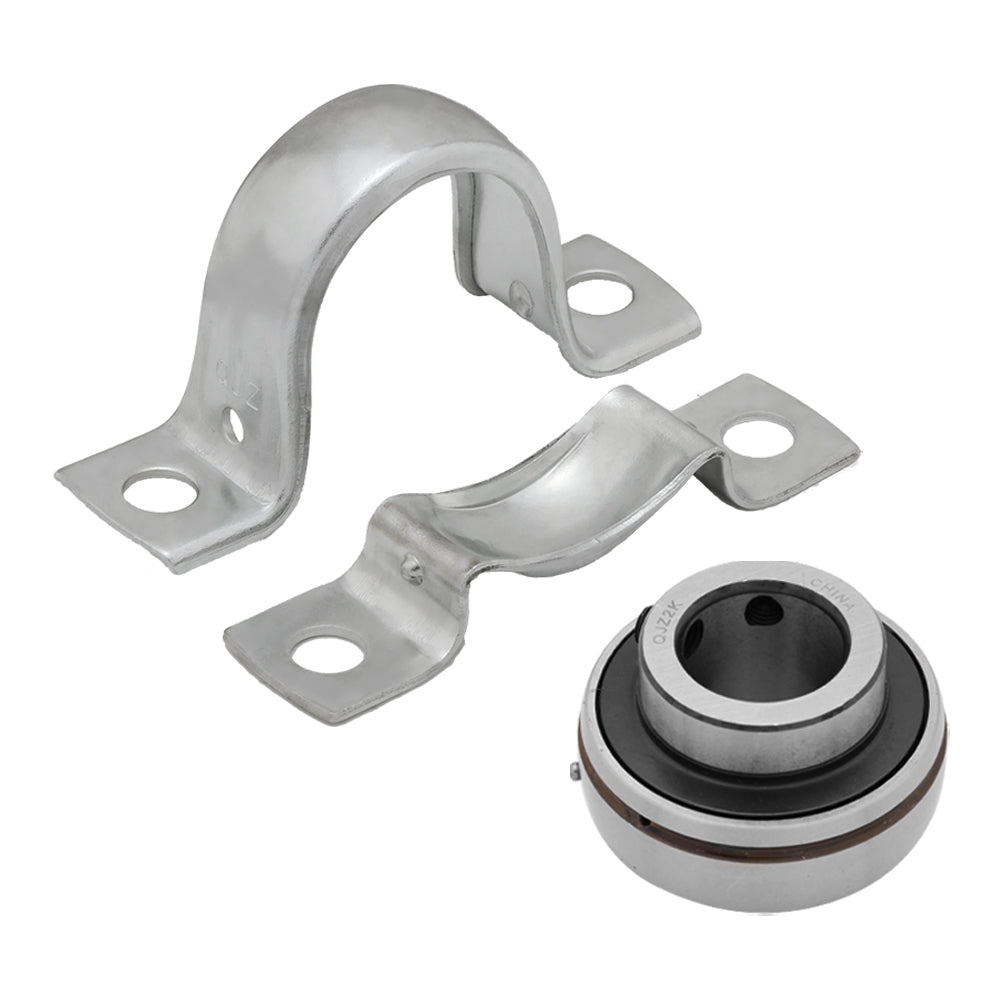

Pressed Steel Pillow Block Mounted Unit Bearing

The UC Series Pillow Block flangette mounted bearing provide reliable shaft support for machinery and agricultural equipment. Each unit comes with an insert bearing and housing with locking set screw for secure shaft attachment, easy installation, and long service life.

Part Number UCPP206-22
Bore ID 1.25 in | 31.75 mm
Length 4.8819 in | 124 mm
Width 1.2598 in | 32 mm
Height 2.6378 in | 67 mm
Bolt to Bolt 3.7402 in | 95 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
