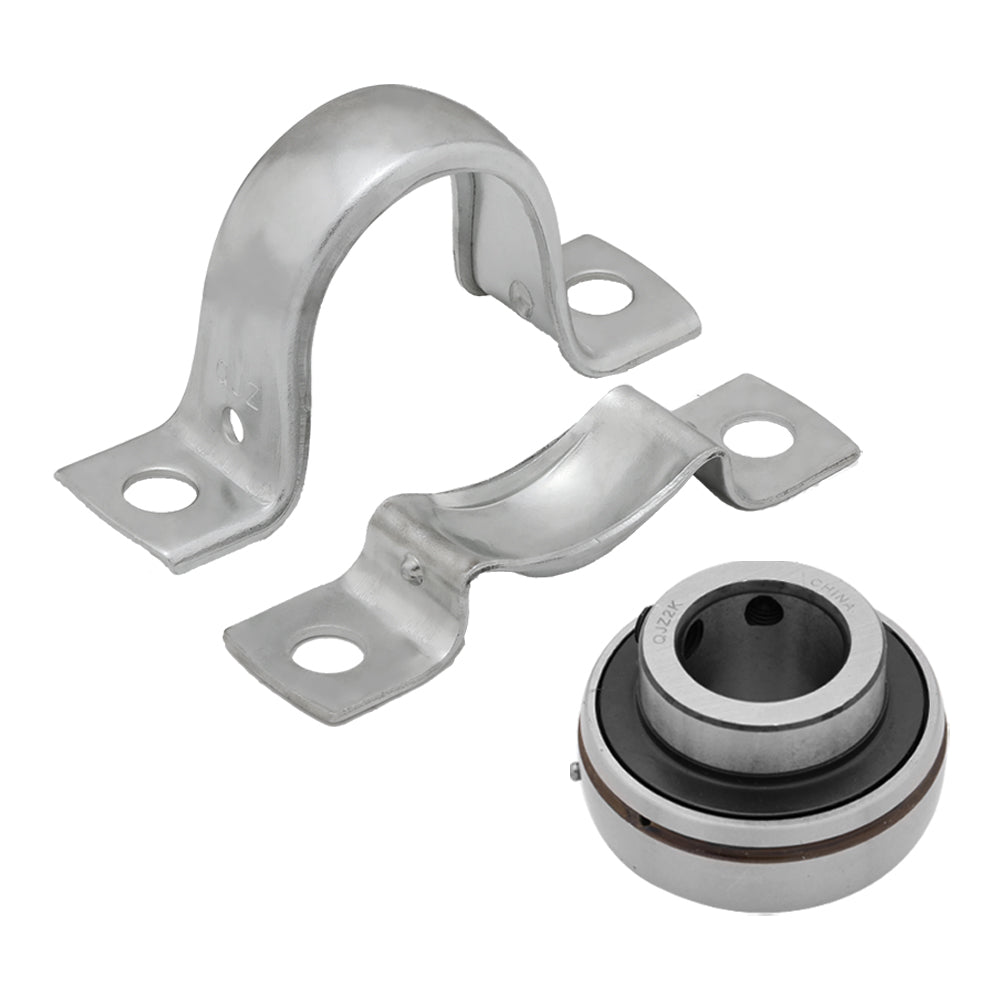

UCPP205-16-R3-P6V2, Pressed Steel Pillow Block Mounted Unit Bearing, 1 in Bore (ID), Insert Bearing: UC205-16 R3 P6V2, Housing: PP205

In stock
$15.25
Product details
  • Type Mounted Unit Bearings
  • Part Number UCPP205-16-R3-P6V2
  • Housing PP205
  • Insert Bearing UC205-16 R3 P6V2
  • Bore (ID) 1 in | 25.4 mm
  • Height 2.2441 in | 57 mm
  • Length 4.449 in | 113 mm
  • Bolt to Bolt 3.386 in | 86 mm
Description

Pressed Steel Pillow Block Mounted Unit Bearing

The UC Series Pillow Block flangette mounted bearing provide reliable shaft support for machinery and agricultural equipment. Each unit comes with an insert bearing and housing with locking set screw for secure shaft attachment, easy installation, and long service life.

Part Number UCPP205-16-R3-P6V2
Bore ID 1 in | 25.4 mm
Length 4.4488 in | 113 mm
Width 1.1417 in | 29 mm
Height 2.2441 in | 57 mm
Bolt to Bolt 3.3858 in | 86 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
