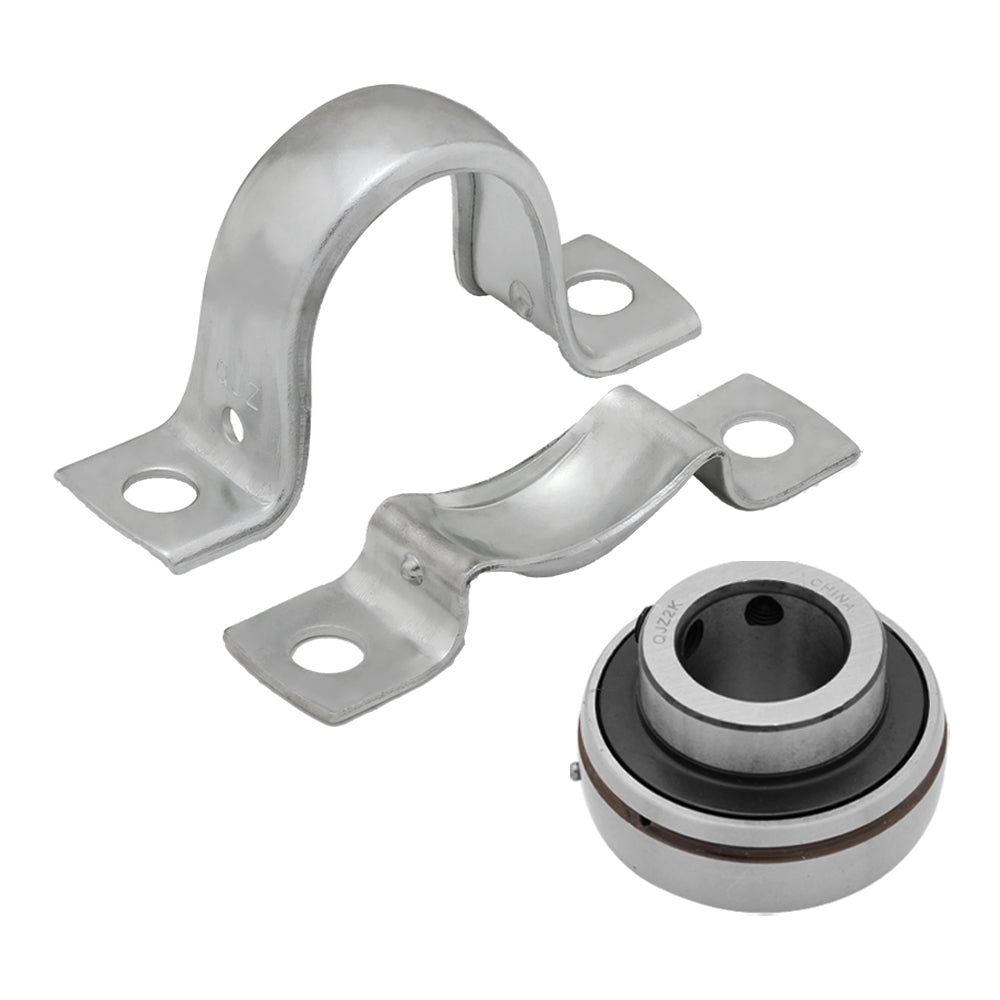

UCPP204-12N, Pressed Steel Pillow Block Mounted Unit Bearing, 0.75 in Bore (ID), Insert Bearing: UC204-12N, Housing: PP204

In stock
$13.95
Product details
  • Type Mounted Unit Bearings
  • Part Number UCPP204-12N
  • Housing PP204
  • Insert Bearing UC204-12N
  • Bore (ID) 0.75 in | 19.05 mm
  • Height 1.9685 in | 50 mm
  • Length 4.134 in | 105 mm
  • Bolt to Bolt 2.992 in | 76 mm
Description

Pressed Steel Pillow Block Mounted Unit Bearing

The UC Series Pillow Block flangette mounted bearing provide reliable shaft support for machinery and agricultural equipment. Each unit comes with an insert bearing and housing with locking set screw for secure shaft attachment, easy installation, and long service life.

Part Number UCPP204-12N
Bore ID 0.75 in | 19.05 mm
Length 4.1339 in | 105 mm
Width 0.984 in | 25 mm
Height 1.9685 in | 50 mm
Bolt to Bolt 2.9921 in | 76 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
