QJZ

UCPP203-11, Pressed Steel Pillow Block Mounted Unit Bearing, 0.688 in Bore (ID), Insert Bearing: UC203-11, Housing: PP203

In stock
$9.99
Product details
  • Type Mounted Unit Bearings
  • Part Number UCPP203-11
  • Housing PP203
  • Insert Bearing UC203-11
  • Bore (ID) 0.688 in | 17.463 mm
  • Height 1.7323 in | 44 mm
  • Length 3.622 in | 92 mm
  • Bolt to Bolt 2.6772 in | 68 mm
Description

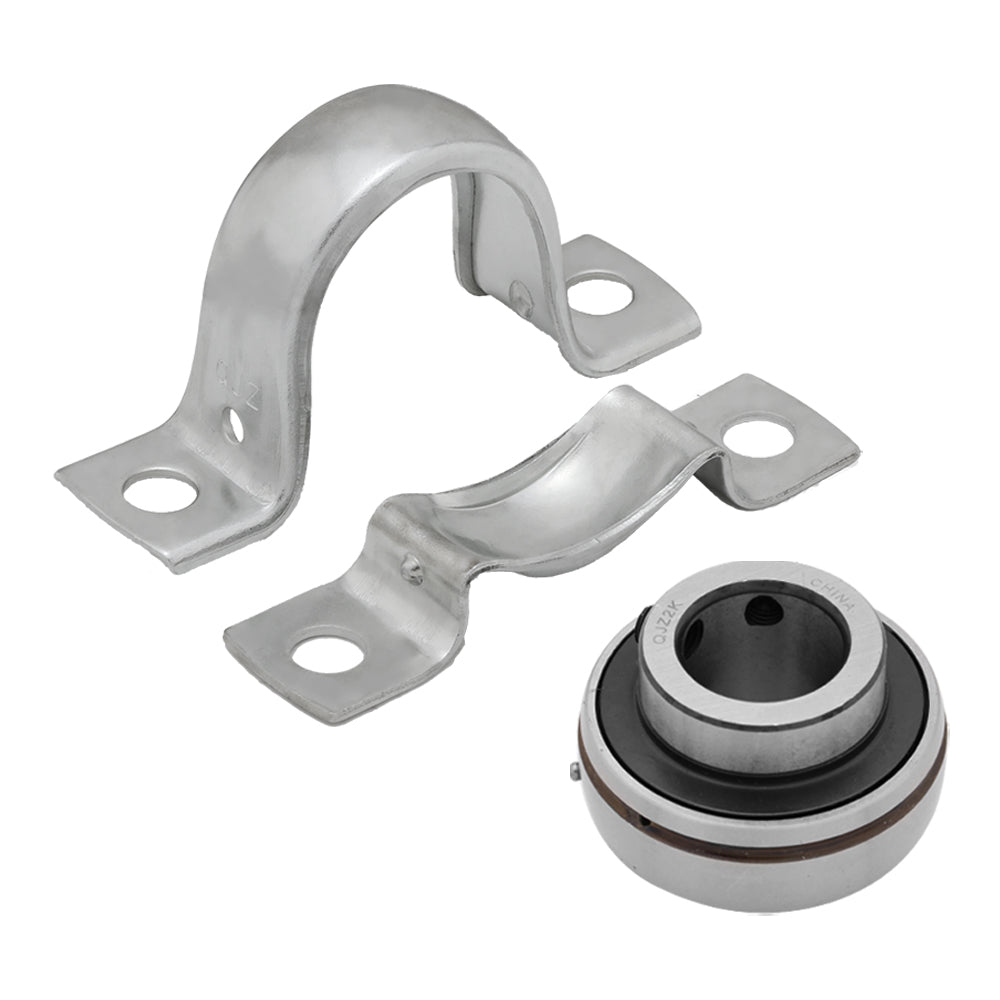

Pressed Steel Pillow Block Mounted Unit Bearing

The UC Series Pillow Block flangette mounted bearing provide reliable shaft support for machinery and agricultural equipment. Each unit comes with an insert bearing and housing with locking set screw for secure shaft attachment, easy installation, and long service life.

Part Number UCPP203-11
Bore ID 0.688 in | 17.463 mm
Length 3.622 in | 92 mm
Width 0.984 in | 25 mm
Height 1.7323 in | 44 mm
Bolt to Bolt 2.6772 in | 68 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
