UCPFT204-12N, 3-Bolt Pressed Steel Triangular Housing, 0.75 in Bore (ID), Insert Bearing: UC204-12N, Housing: PFT204

In stock
SKU: UCPFT204-12N
Material and bore size can be selected below. Dimensions (Length × Width × Height) remain the same for all options.
$8.25
Product details
  • Part Number UCPFT204-12N
  • Insert Bearing UC204-12N
  • Housing PFT204
  • Bore (ID) 0.75 in | 19.05 mm
  • Length 3.5433 in | 90 mm
  • Bolt Circle Diameter 2.7953 in | 71 mm

Please contact us if you are unsure about the fitment.

Description

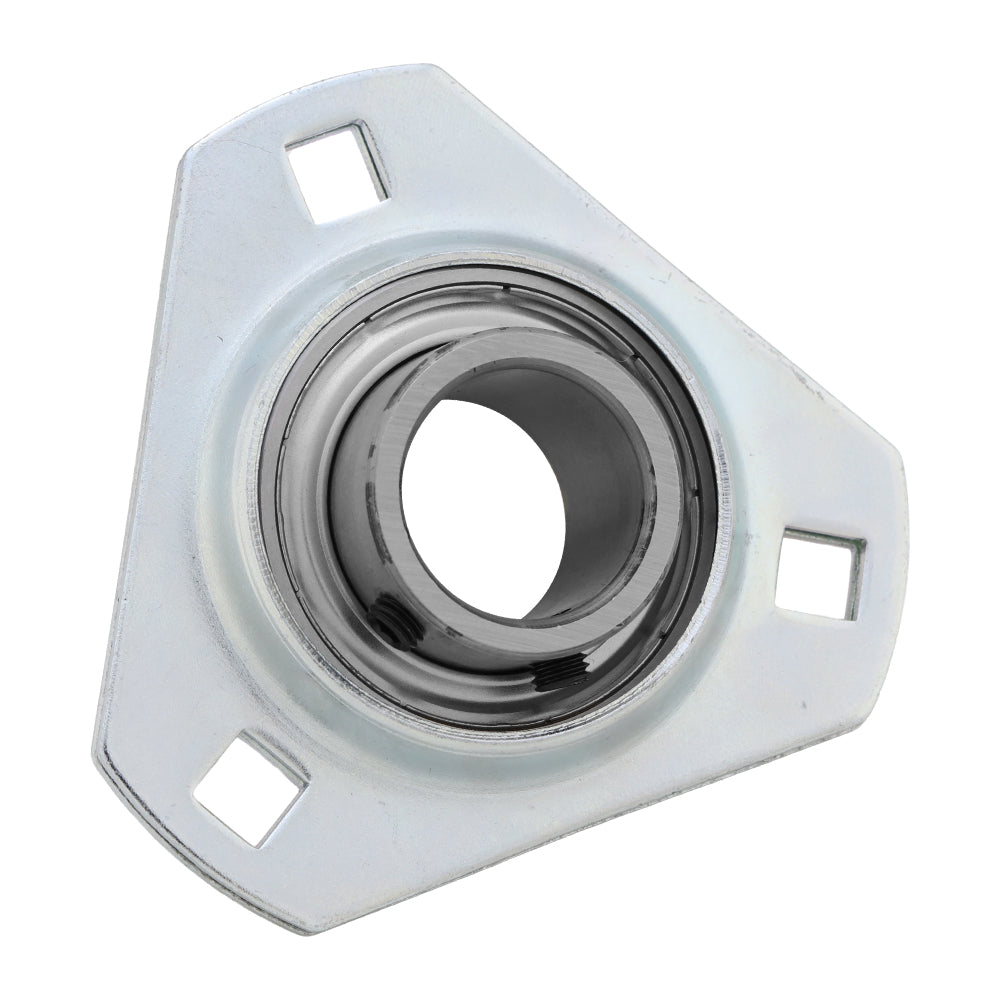

3-Bolt Triangular Flanged Bearing

The UC Series 3-bolt flangette mounted bearing provide reliable shaft support for machinery and agricultural equipment. Each unit comes with an insert bearing and housing with locking set screw for secure shaft attachment, easy installation, and long service life.

Part Number UCPFT204-12N
Bore ID 0.75 in | 19.05 mm
Length 3.5433 in | 90 mm
Bolt Hole Cirle Diameter 2.7953 in | 71 mm


Applications

  • Agricultural machinery
  • General industrial machinery
