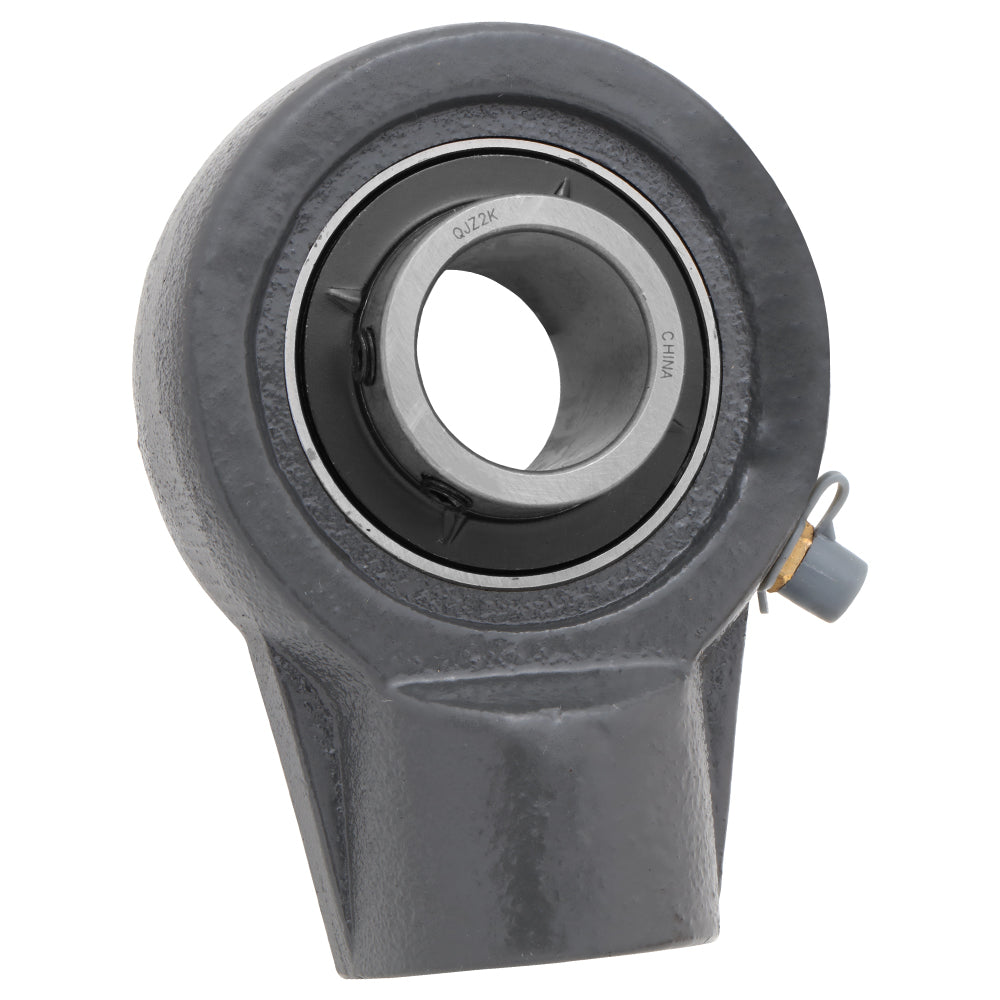

UCHA205-14, Hanger Mounted Unit Bearing, 0.875 in Bore (ID), Insert Bearing: UC205-14, Housing: HA205

In stock
All of our mounted unit bearings are provided fully assembled. Should you require to receive insert bearing and housing separately, please contact us for assistance.
$18.50
Product details
  • Type Mounted Unit Bearings
  • Part Number UCHA205-14
  • Housing HA205
  • Insert Bearing UC205-14
  • Bore 0.875 in | 22.225 mm
  • Height 4.055 in | 103 mm
  • Length 3.071 in | 78 mm
  • Width 1.339 in | 34 mm
  • Slot to Slot 2.52 in | 64 mm

Please contact us if you are unsure about the fitment.

Description

Hanger Mounted Unit Ball Bearing

The UC series hanger mounted unit ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with set-screw locking for secure shaft attachment, easy installation, and long service life.

Model UCHA205-14
Shaft Bore (ID) 0.875 in | 22.225 mm
Length 3.071 in | 78 mm
Height 4.055 in | 103 mm
Width 1.339 in | 34 mm
Base to Center 2.52 in | 64 mm
Thread Size G 3/4


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
