QJZ

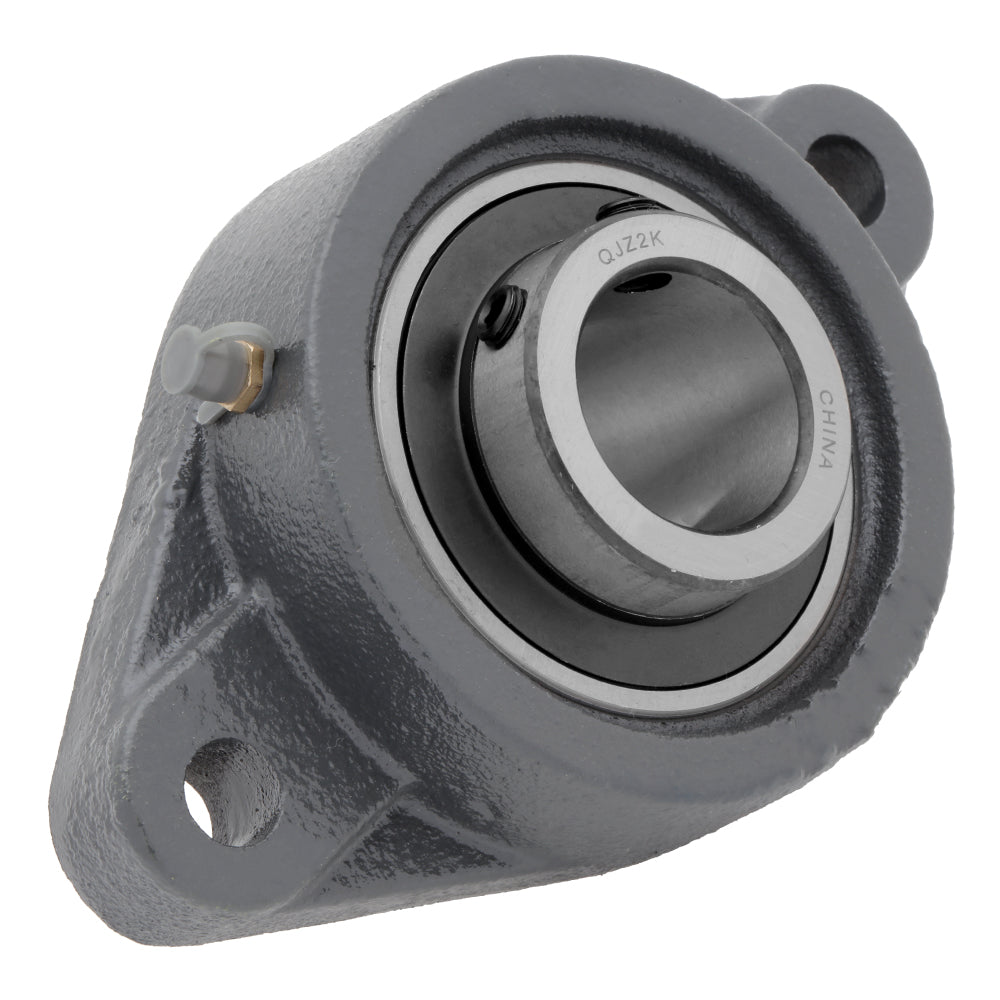

UCFT211-33, 2-Bolt Mounted Unit Bearing, 2.0625 in Bore (ID), Insert Bearing: UC211-33, Housing: FT211

Out of stock
SKU: UCFT211-33
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
$34.50
Product details
  • Part Number UCFT211-33
  • Housing FT211
  • Insert Bearing UC211-33
  • Bore (ID) 2.063 in | 52.388 mm
  • Bolt to Bolt 7.252 in | 184.2 mm
  • Length 8.504 in | 216 mm
  • Width 2.315 in | 58.8 mm
  • Height 5.236 in | 133 mm
Description

Pillow Block Mounted Unit Bearing

The UC series 2-Bolt Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with set-screw locking for secure shaft attachment, easy installation, and long service life.

Model UCFT211-33
Shaft Bore (ID) 2.063 in | 52.388 mm
Length 8.504 in | 216 mm
Height (Thickness) 5.236 in | 133 mm
Width 2.315 in | 58.8 mm
Bolt to Bolt Spacing 7.252 in | 184.2 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
