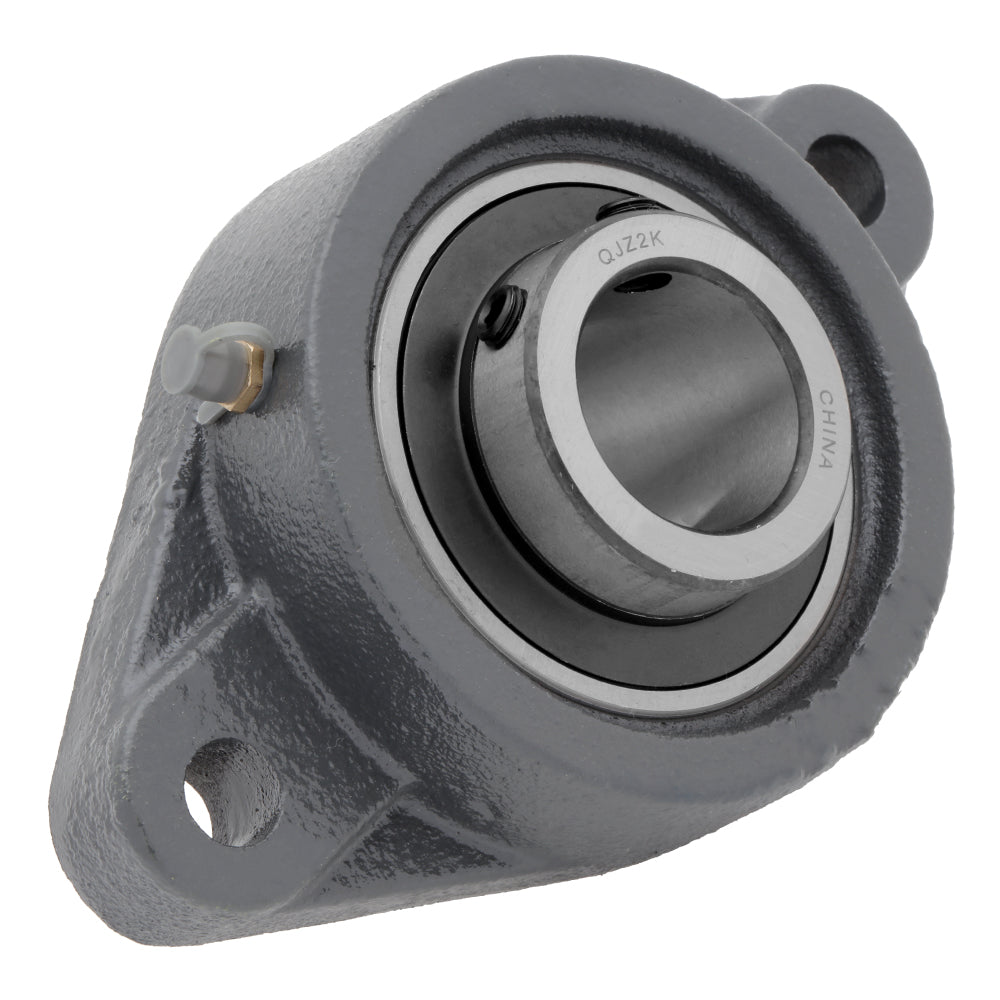

UCFT210-31, 2-Bolt Mounted Unit Bearing, 1.9375 in Bore (ID), Insert Bearing: UC210-31, Housing: FT210

In stock
SKU: UCFT210-31
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
$31.50
Product details
  • Part Number UCFT210-31
  • Housing FT210
  • Insert Bearing UC210-31
  • Bore (ID) 1.938 in | 49.213 mm
  • Bolt to Bolt 6.189 in | 157.2 mm
  • Length 7.441 in | 189 mm
  • Width 2.157 in | 54.8 mm
  • Height 4.567 in | 116 mm
Description

Pillow Block Mounted Unit Bearing

The UC series 2-Bolt Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with set-screw locking for secure shaft attachment, easy installation, and long service life.

Model UCFT210-31
Shaft Bore (ID) 1.938 in | 49.213 mm
Length 7.441 in | 189 mm
Height (Thickness) 4.567 in | 116 mm
Width 2.157 in | 54.8 mm
Bolt to Bolt Spacing 6.189 in | 157.2 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
