UCFT208-24, 2-Bolt Mounted Unit Bearing, 1.5 in Bore (ID), Insert Bearing: UC208-24, Housing: FT208

In stock
SKU: UCFT208-24
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
$17.50
Product details
  • Part Number UCFT208-24
  • Housing FT208
  • Insert Bearing UC208-24
  • Bore (ID) 1.5 in | 38.1 mm
  • Bolt to Bolt 5.657 in | 143.7 mm
  • Length 6.732 in | 171 mm
  • Width 2.016 in | 51.2 mm
  • Height 4.134 in | 105 mm
Description

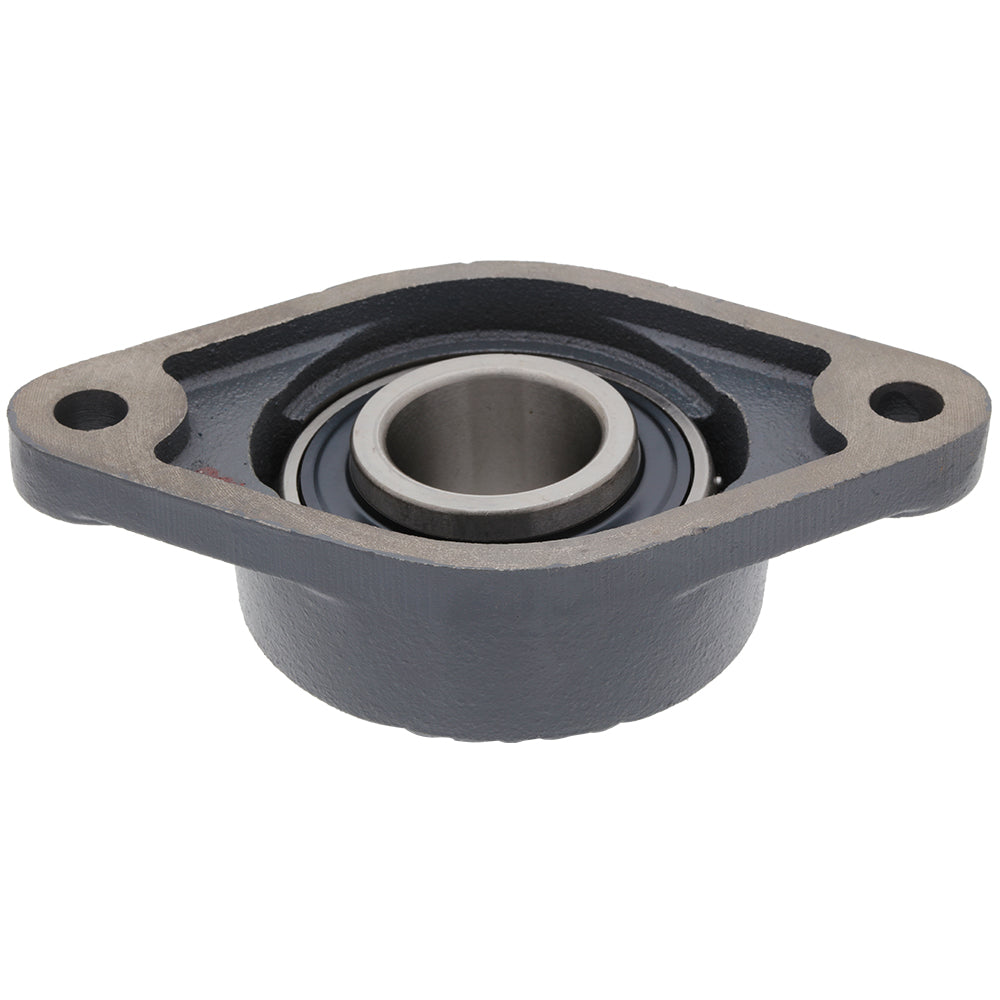

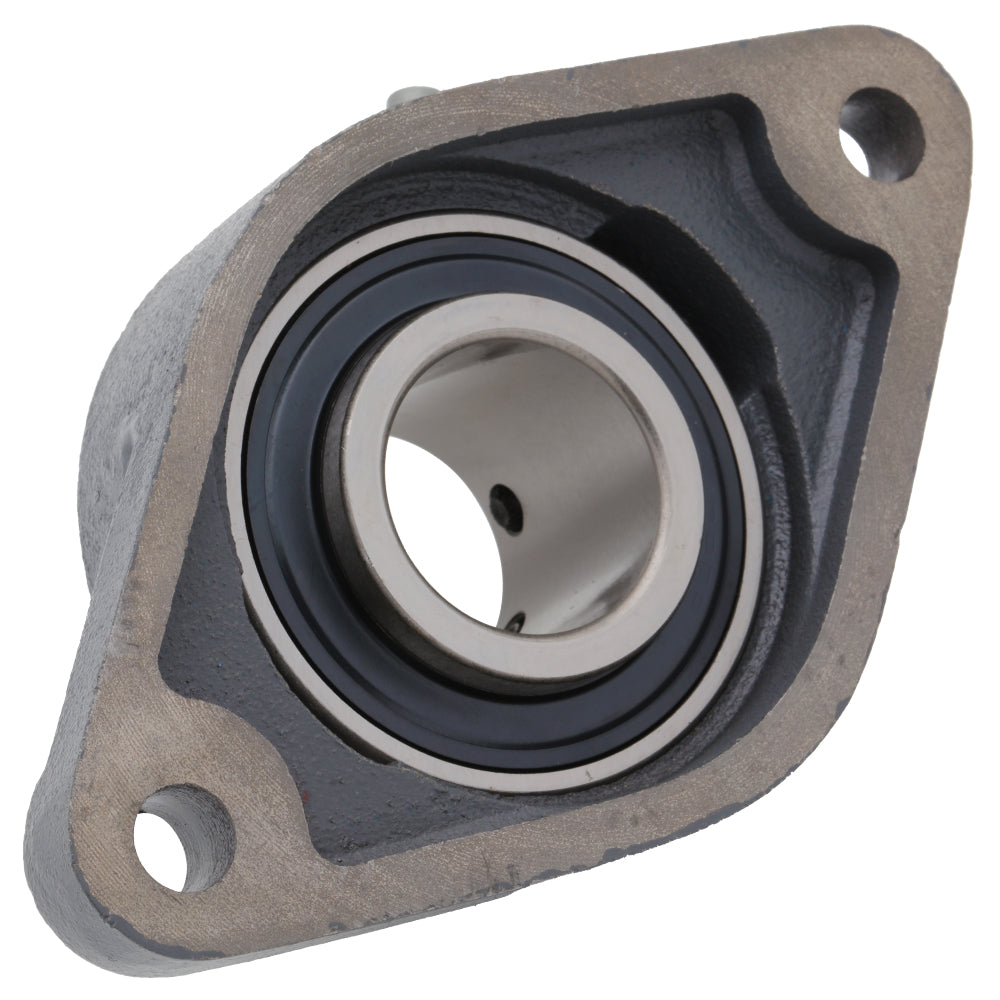

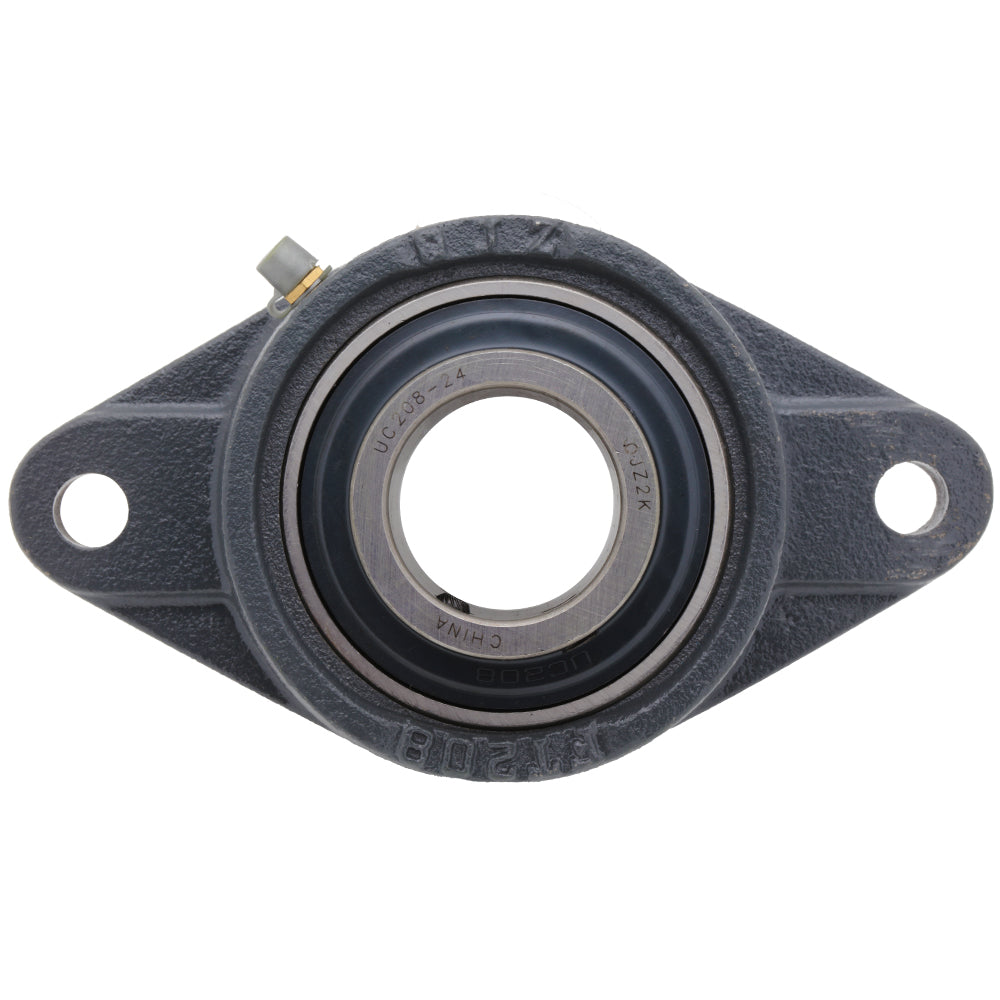

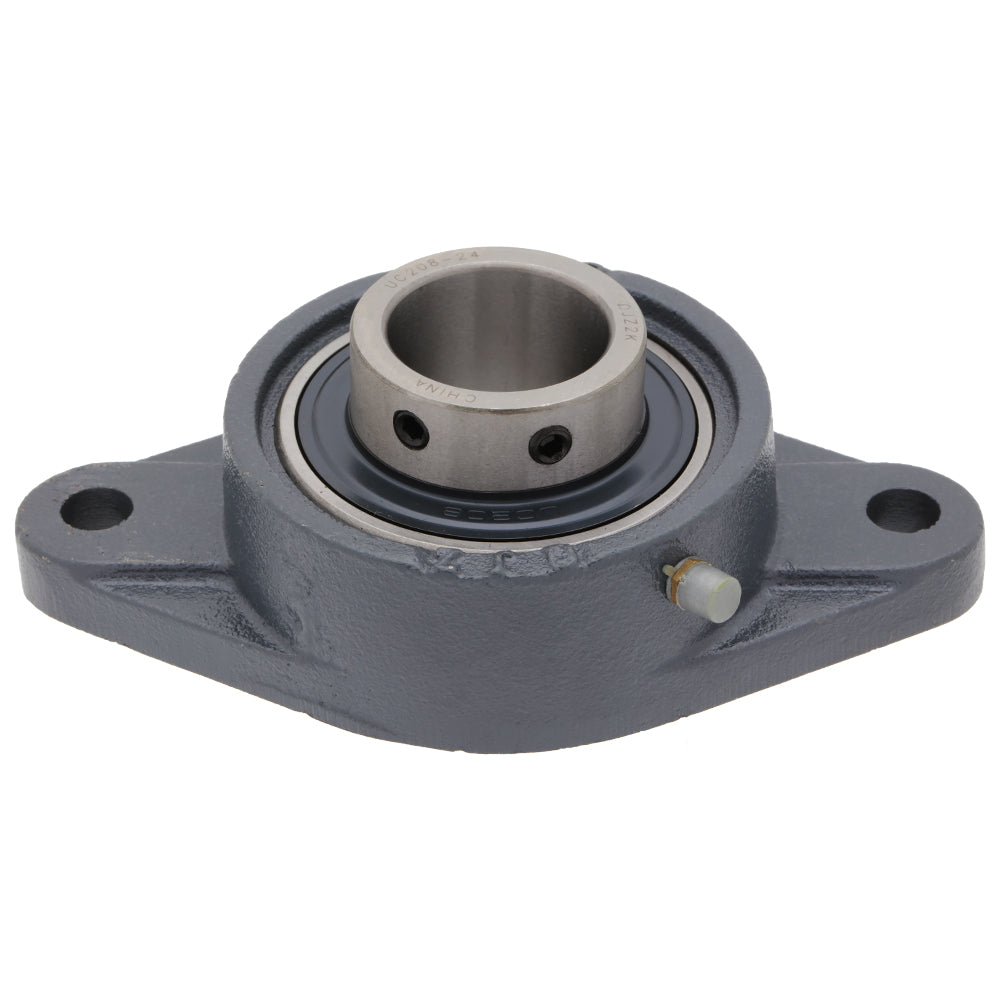

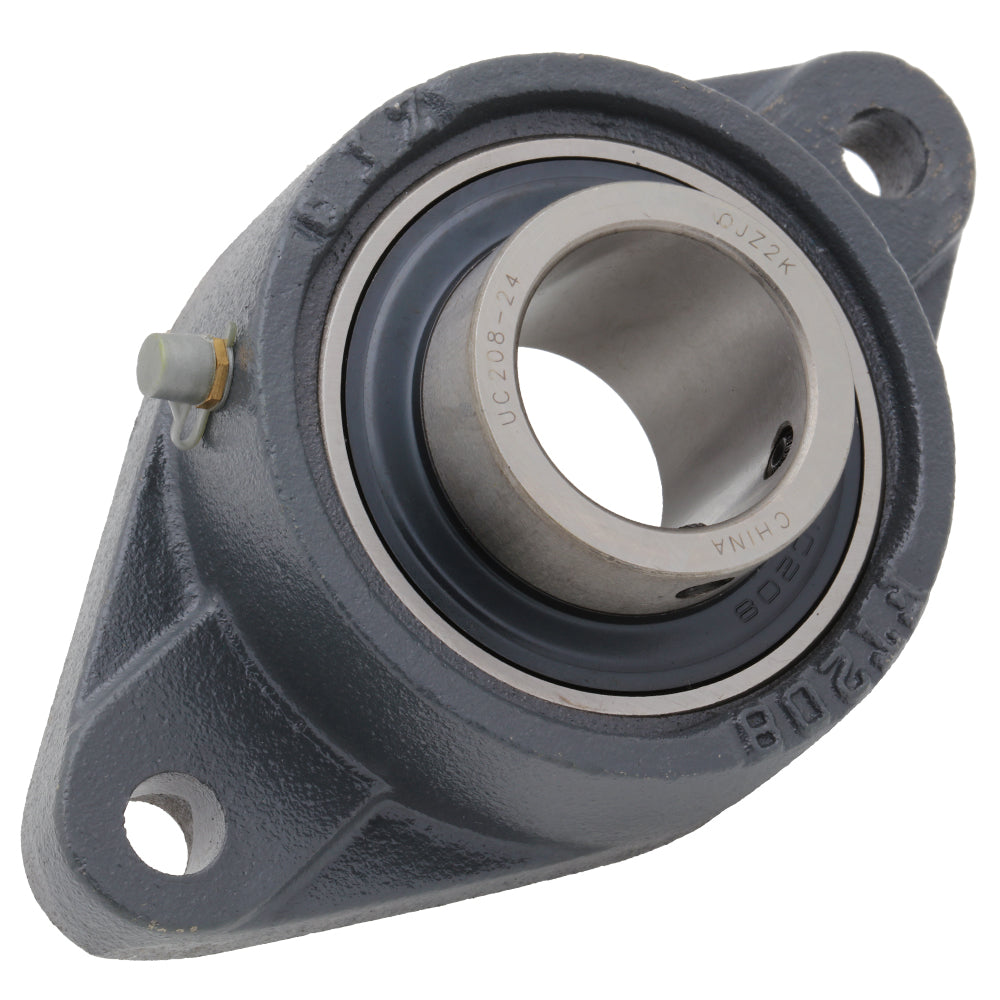

Pillow Block Mounted Unit Bearing

The UC series 2-Bolt Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with set-screw locking for secure shaft attachment, easy installation, and long service life.

Model UCFT208-24
Shaft Bore (ID) 1.5 in | 38.1 mm
Length 6.732 in | 171 mm
Height (Thickness) 4.134 in | 105 mm
Width 2.016 in | 51.2 mm
Bolt to Bolt Spacing 5.657 in | 143.7 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
