QJZ

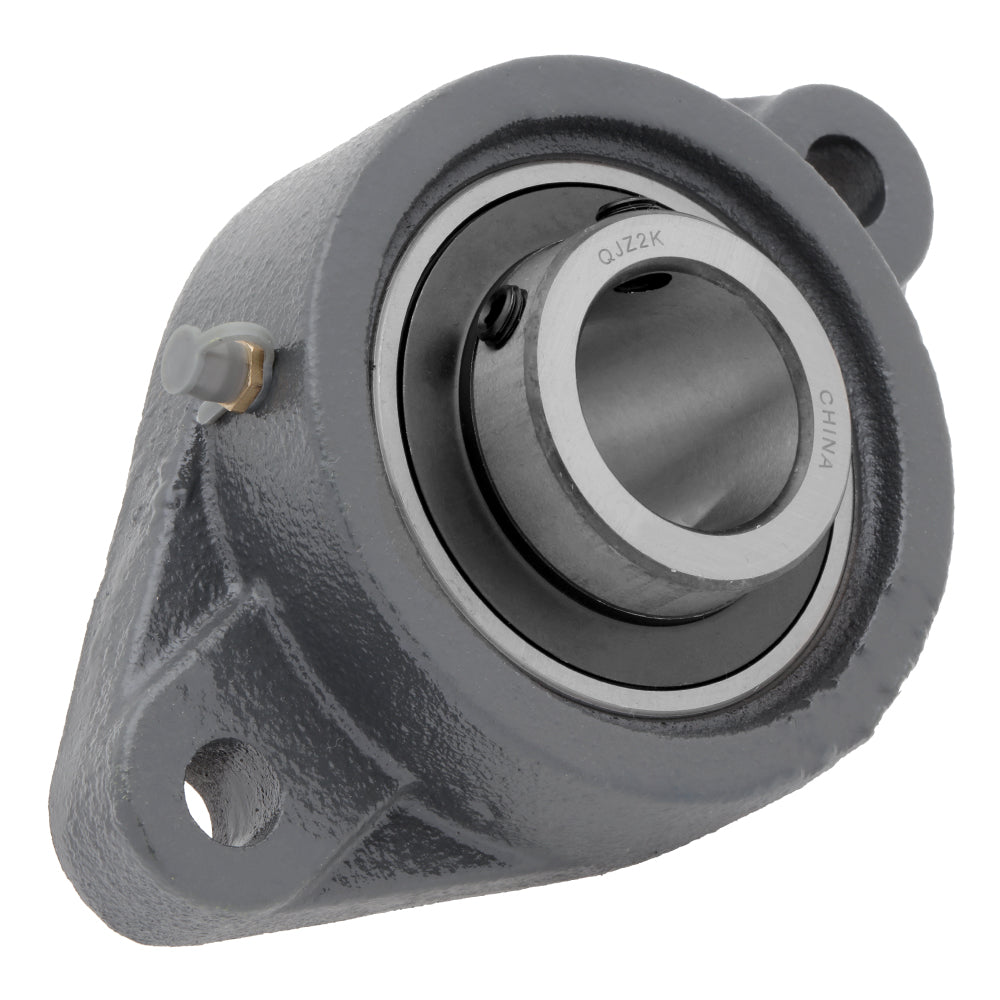

UCFT207, 2-Bolt Mounted Unit Bearing, 1.378 in Bore (ID), Insert Bearing: UC207, Housing: FT207

In stock
SKU: UCFT207
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
$16.75
Product details
  • Part Number UCFT207
  • Housing FT207
  • Insert Bearing UC207
  • Bore (ID) 1.378 in | 35 mm
  • Bolt to Bolt 5.126 in | 130.2 mm
  • Length 6.142 in | 156 mm
  • Width 1.752 in | 44.5 mm
  • Height 3.74 in | 95 mm
Description

Pillow Block Mounted Unit Bearing

The UC series 2-Bolt Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with set-screw locking for secure shaft attachment, easy installation, and long service life.

Model UCFT207
Shaft Bore (ID) 1.378 in | 35 mm
Length 6.142 in | 156 mm
Height (Thickness) 3.74 in | 95 mm
Width 1.752 in | 44.5 mm
Bolt to Bolt Spacing 5.126 in | 130.2 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
