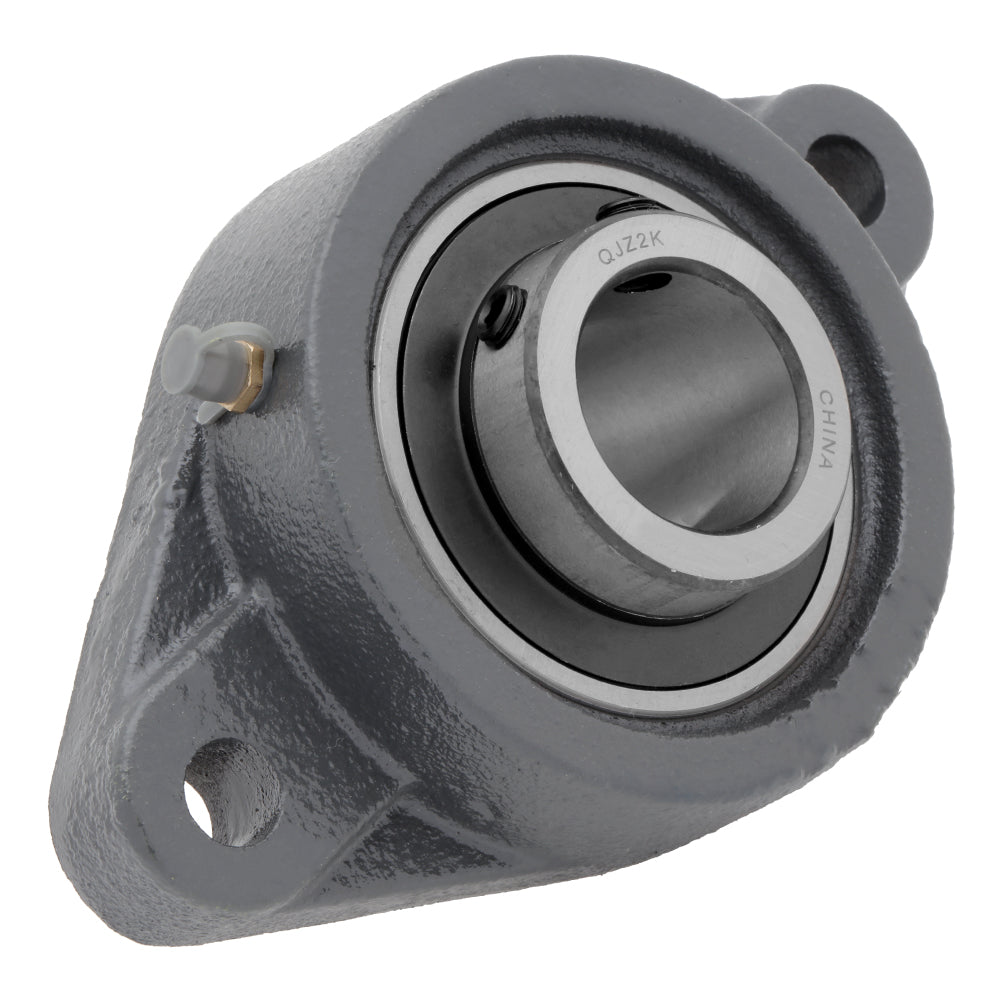

UCFT203-11, 2-Bolt Mounted Unit Bearing, 0.6875 in Bore (ID), Insert Bearing: UC203-11, Housing: FT203

Out of stock
SKU: UCFT203-11
All of our mounted unit bearings are provided fully assembled. Should you require to receive insert bearing and housing separately, please contact us for assistance.
$10.75

Product details

    • Part Number UCFT203-11
    • Bore (ID) 0.6875 in | 17.463 mm
    • Length 4.173 in | 106 mm
    • Width 1.303 in | 33.1 mm
    • Height 2.244 in | 57 mm
Description

Pillow Block Mounted Unit Bearing

The UC series 2-Bolt Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with set-screw locking for secure shaft attachment, easy installation, and long service life.

Model UCFT203-11
Shaft Bore (ID) 0.6875 in | 17.463 mm
Length 4.173 in | 106 mm
Height (Thickness) 2.244 in | 57 mm
Width 1.303 in | 33.1 mm
Bolt to Bolt Spacing 3 in | 76.2 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
