QJZ

UCFS215-47, 4-Bolt Flange Mounted Unit Bearing, 2 15/16 in Bore (ID), Insert Bearing: UC215-47, Housing: FS215

In stock
SKU: UCFS215-47
$118.99
Product details
  • Type Mounted Unit Bearings
  • Part Number UCFS215-47
  • Insert Bearing UC202
  • Housing FS202
  • Bore (ID) 2.938 in | 74.613 mm
  • Length 7.874 in | 200 mm
  • Height (Thickness) 3.366 in | 85.5 mm
  • Bolt-to-Bolt Spacing 6 in | 152.4 mm
Description

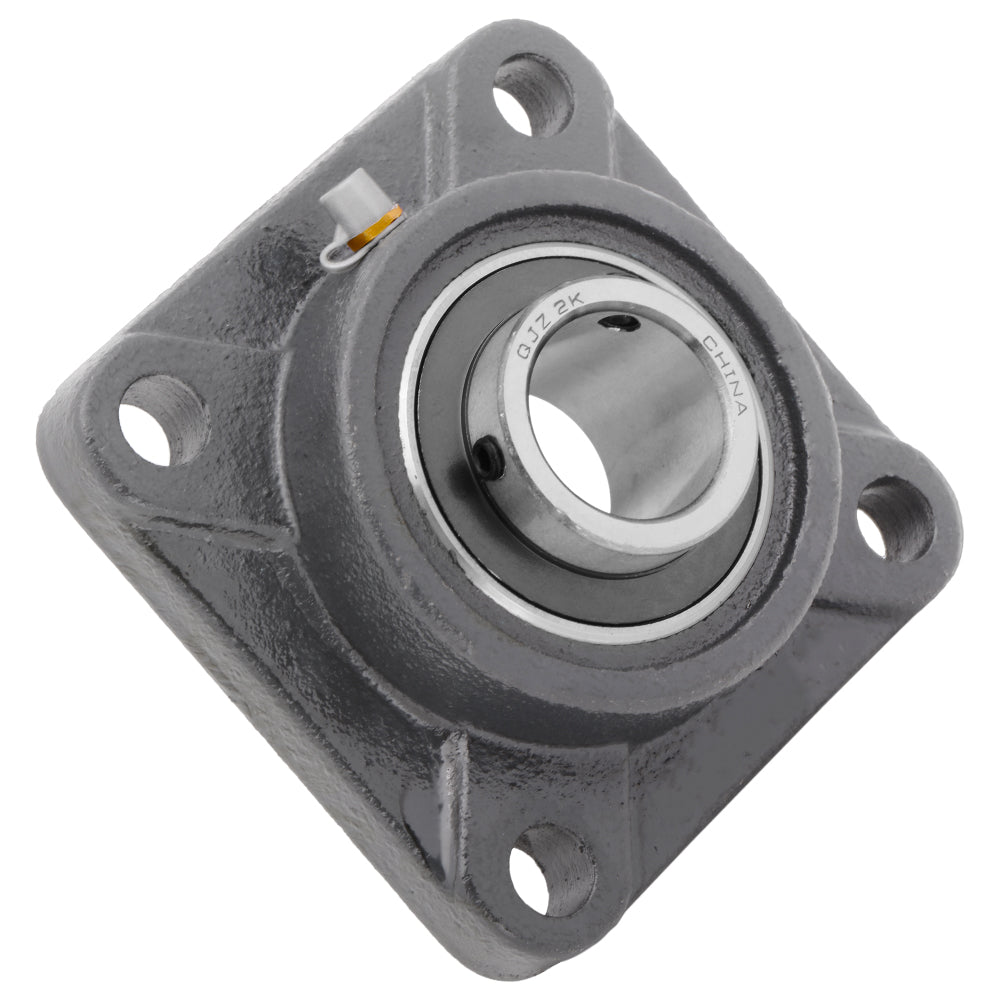

4-Bolt Flange Mounted Unit Ball Bearing: UCFS215-47

The UC series 4-bolt flange mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (UC215-47) and a cast iron housing (FS215) with set-screw locking for secure shaft attachment, easy installation, and long service life.

Model UCFS215-47
Shaft Bore (ID) 2.938 in | 74.613 mm
Length 7.874 in | 200 mm
Height (Thickness) 3.366 in | 85.5 mm
Bolt to Bolt Spacing 6 in | 152.4 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
