UCFS214-43, 4-Bolt Flange Mounted Unit Bearing, 2 11/16 in Bore (ID), Insert Bearing: UC214-43, Housing: FS214

Out of stock
SKU: UCFS214-43
$74.75
Product details
  • Type Mounted Unit Bearings
  • Part Number UCFS214-43
  • Insert Bearing UC202
  • Housing FS202
  • Bore (ID) 2.688 in | 68.263 mm
  • Length 7.402 in | 188 mm
  • Height (Thickness) 3.244 in | 82.4 mm
  • Bolt-to-Bolt Spacing 5.984 in | 152 mm
Description

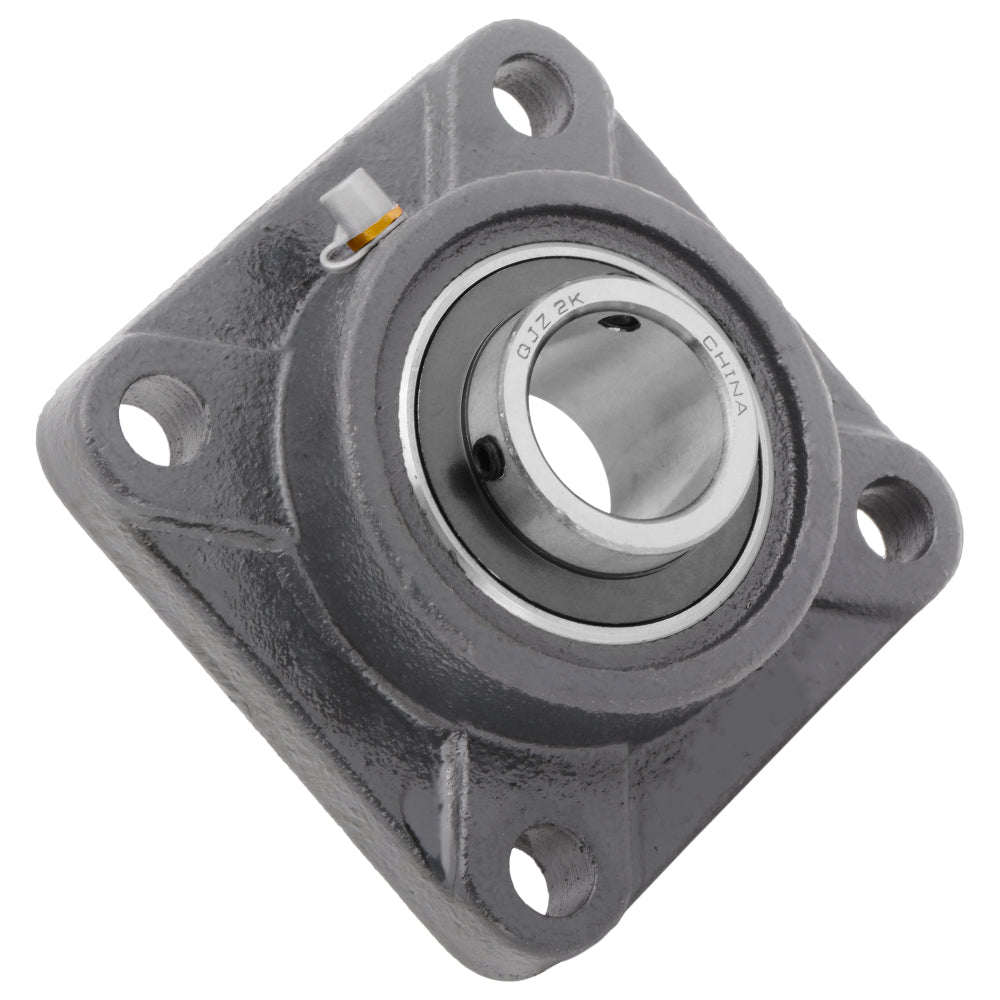

4-Bolt Flange Mounted Unit Ball Bearing: UCFS214-43

The UC series 4-bolt flange mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (UC214-43) and a cast iron housing (FS214) with set-screw locking for secure shaft attachment, easy installation, and long service life.

Model UCFS214-43
Shaft Bore (ID) 2.688 in | 68.263 mm
Length 7.402 in | 188 mm
Height (Thickness) 3.244 in | 82.4 mm
Bolt to Bolt Spacing 5.984 in | 152 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
