QJZ

UCFS212-38, 4-Bolt Flange Mounted Unit Bearing, 2 3/8 in Bore (ID), Insert Bearing: UC212-38, Housing: FS212

In stock
SKU: UCFS212-38
$50.25
Product details
  • Type Mounted Unit Bearings
  • Part Number UCFS212-38
  • Insert Bearing UC202
  • Housing FS202

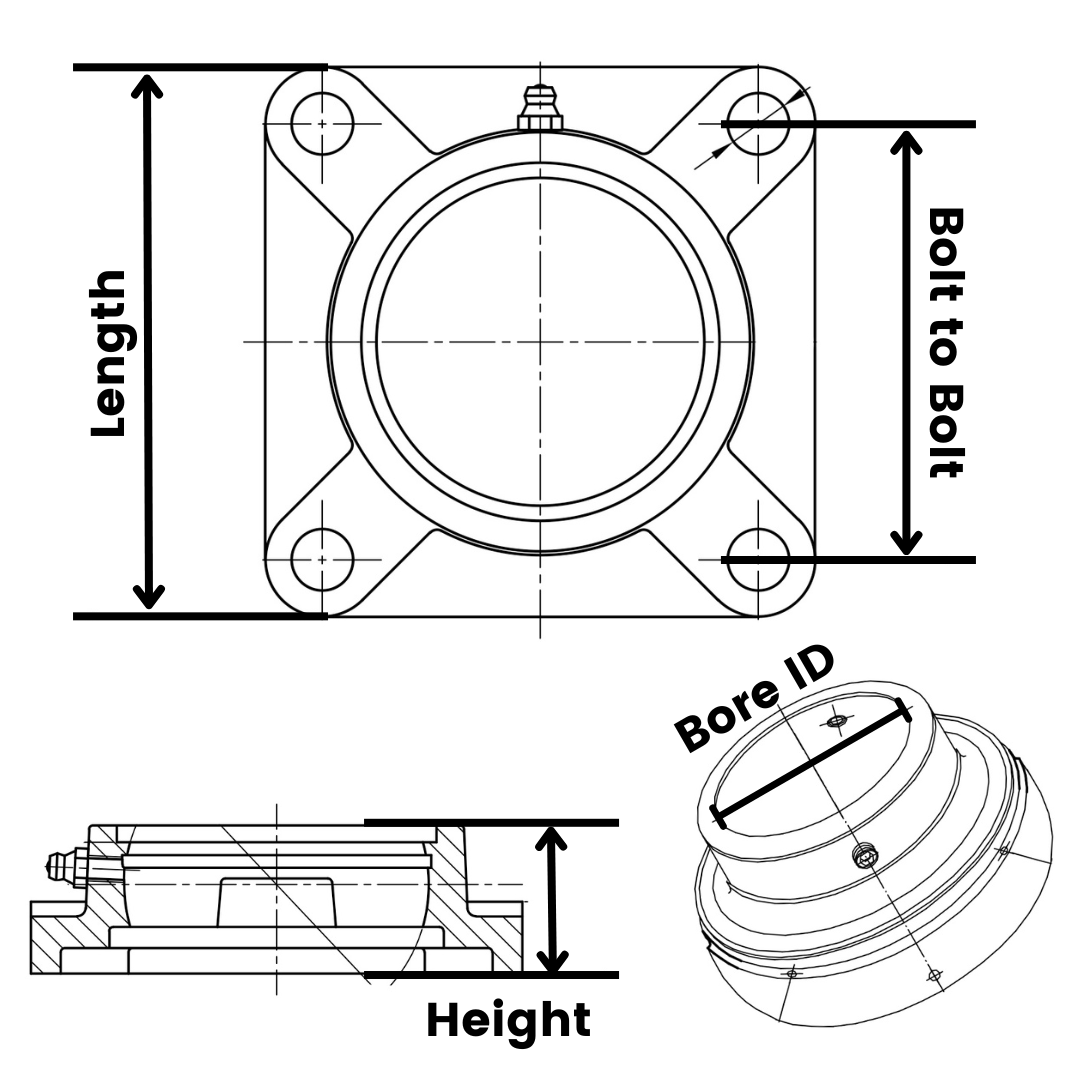

  • Bore (ID) 2.375 in | 60.325 mm
  • Length 6.89 in | 175 mm
  • Height (Thickness) 2.902 in | 73.7 mm
  • Bolt-to-Bolt Spacing 5.63 in | 143 mm
Description

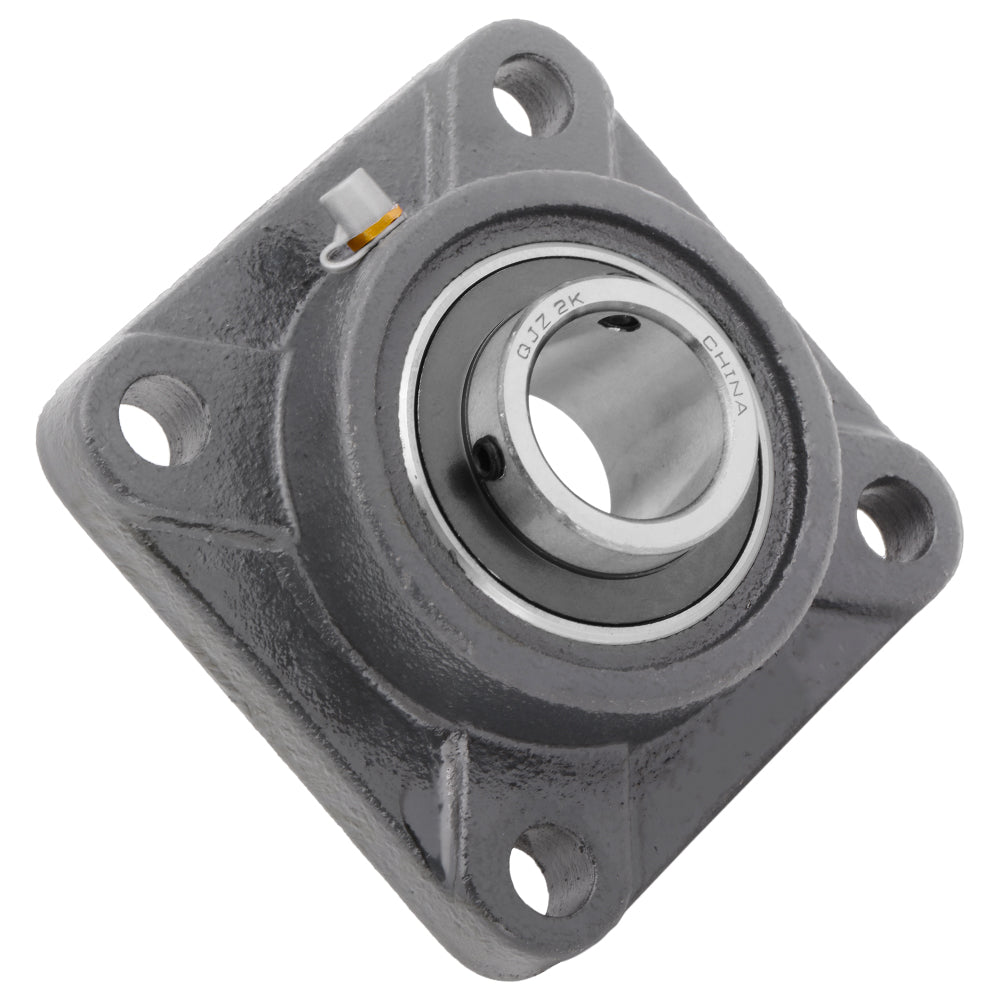

4-Bolt Flange Mounted Unit Ball Bearing: UCFS212-38

The UC series 4-bolt flange mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (UC212-38) and a cast iron housing (FS212) with set-screw locking for secure shaft attachment, easy installation, and long service life.

Model UCFS212-38
Shaft Bore (ID) 2.375 in | 60.325 mm
Length 6.89 in | 175 mm
Height (Thickness) 2.902 in | 73.7 mm
Bolt to Bolt Spacing 5.63 in | 143 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
