QJZ

UCFS212, 4-Bolt Flange Mounted Unit Bearing, 2.362 in Bore (ID), Insert Bearing: UC212, Housing: FS212

Out of stock
SKU: UCFS212
All of our mounted unit bearings are supplied fully assembled. Please contact us if you require a specific dimension that is not listed.
$48.50

Product details

  • Type Mounted Unit Bearings
    • Part Number UCFS212
    • Insert Bearing UC202
    • Housing FS202
    • Bore (ID) 2.36 in
    • Flange Length 6.89 in | 175 mm
    • Flange Height (Thickness) 2.902 in | 73.7 mm
    • Bolt-to-Bolt Spacing 5.63 in | 143 mm
Description

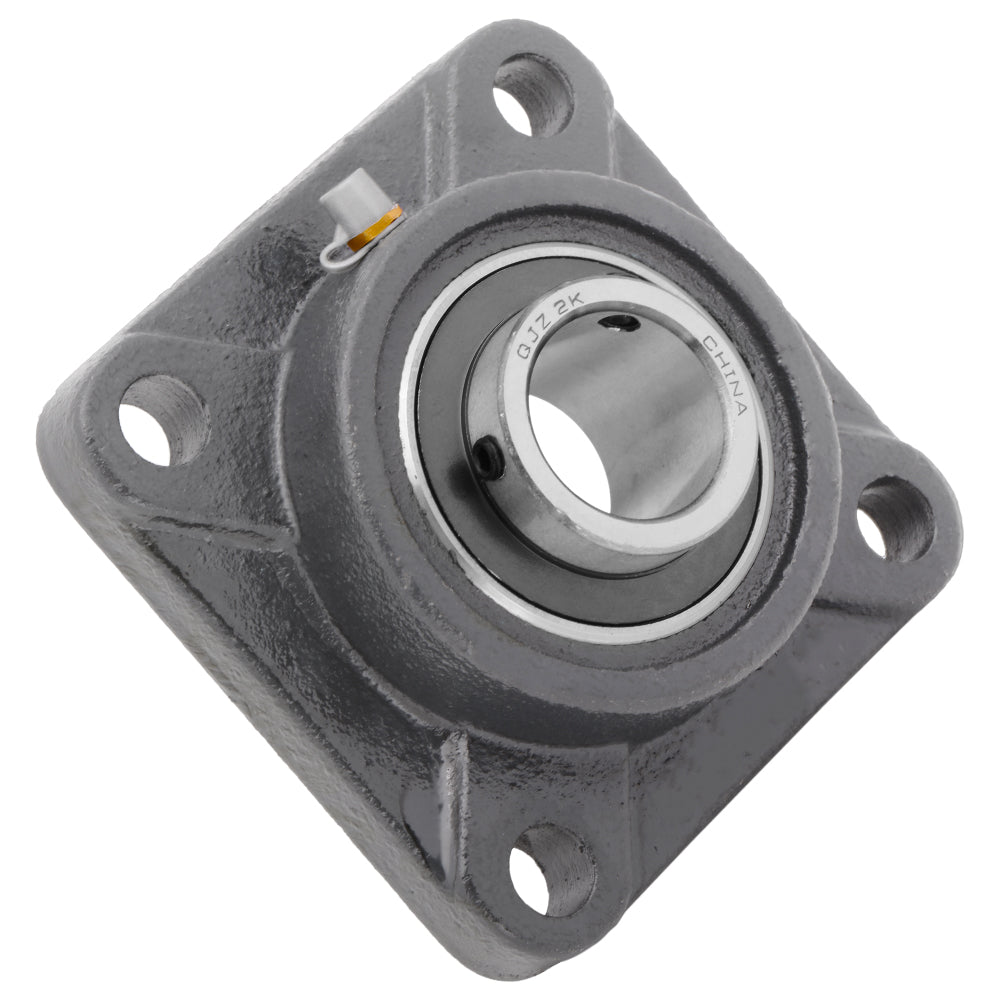

4-Bolt Flange Mounted Unit Ball Bearing: UCFS212

The UC series 4-bolt flange mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (UC212) and a cast iron housing (FS212) with set-screw locking for secure shaft attachment, easy installation, and long service life.

Model UCFS212
Shaft Bore (ID) 2.362 in | 60 mm
Length 6.89 in | 175 mm
Height (Thickness) 2.902 in | 73.7 mm
Bolt to Bolt Spacing 5.63 in | 143 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
