UCFS211-35, 4-Bolt Flange Mounted Unit Bearing, 2 3/16 in Bore (ID), Insert Bearing: UC211-35, Housing: FS211

In stock
SKU: UCFS211-35
$40.75
Product details
  • Type Mounted Unit Bearings
  • Part Number UCFS211-35
  • Insert Bearing UC202
  • Housing FS202
  • Bore (ID) 2.188 in | 55.563 mm
  • Length 6.378 in | 162 mm
  • Height (Thickness) 2.535 in | 64.4 mm
  • Bolt-to-Bolt Spacing 5.118 in | 130 mm
Description

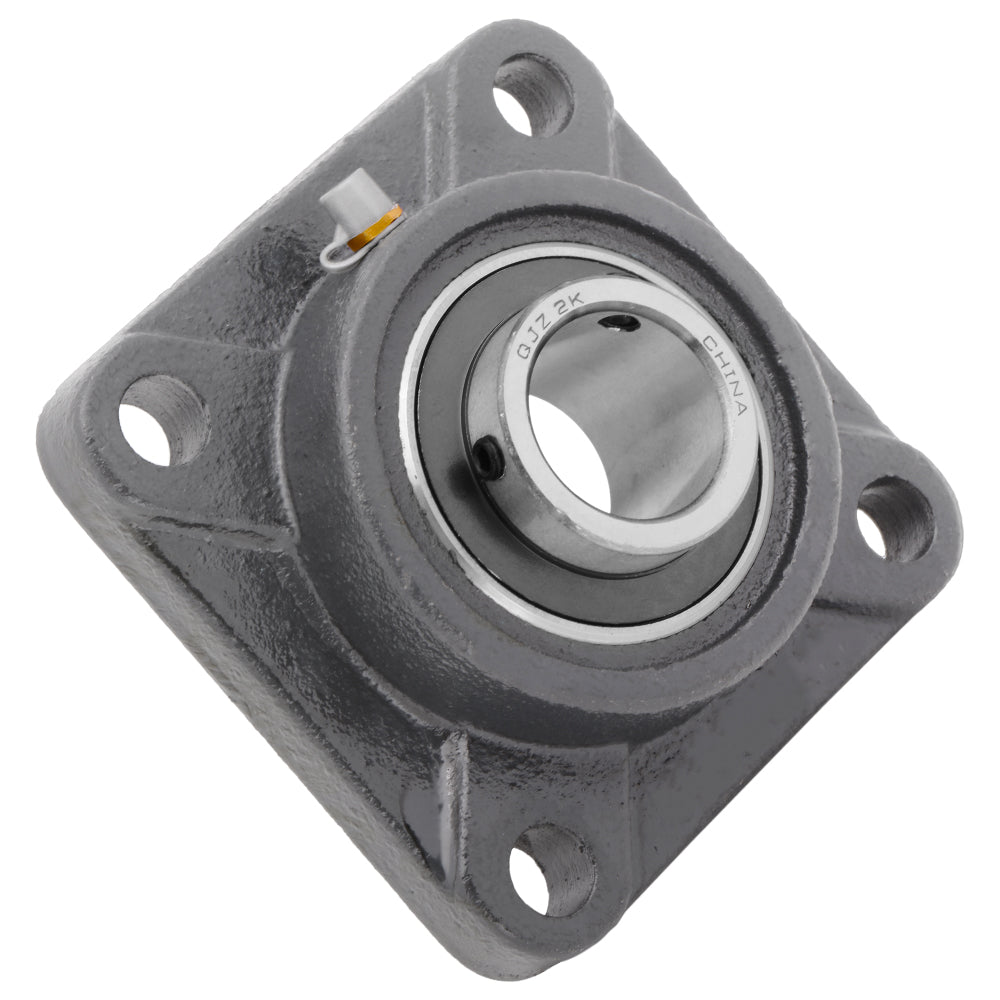

4-Bolt Flange Mounted Unit Ball Bearing: UCFS211-35

The UC series 4-bolt flange mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (UC211-35) and a cast iron housing (FS211) with set-screw locking for secure shaft attachment, easy installation, and long service life.

Model UCFS211-35
Shaft Bore (ID) 2.188 in | 55.563 mm
Length 6.378 in | 162 mm
Height (Thickness) 2.535 in | 64.4 mm
Bolt to Bolt Spacing 5.118 in | 130 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
