UCFS211-32, 4-Bolt Flange Mounted Unit Bearing, 2 in Bore (ID), Insert Bearing: UC211-32, Housing: FS211

In stock
SKU: UCFS211-32
All of our mounted unit bearings are supplied fully assembled. Please contact us if you require a specific dimension that is not listed.
$36.75

Product details

  • Type Mounted Unit Bearings
    • Part Number UCFS211-32
    • Insert Bearing UC202
    • Housing FS202
    • Bore (ID) 2 in
    • Flange Length 6.378 in | 162 mm
    • Flange Height (Thickness) 2.535 in | 64.4 mm
    • Bolt-to-Bolt Spacing 5.118 in | 130 mm
Description

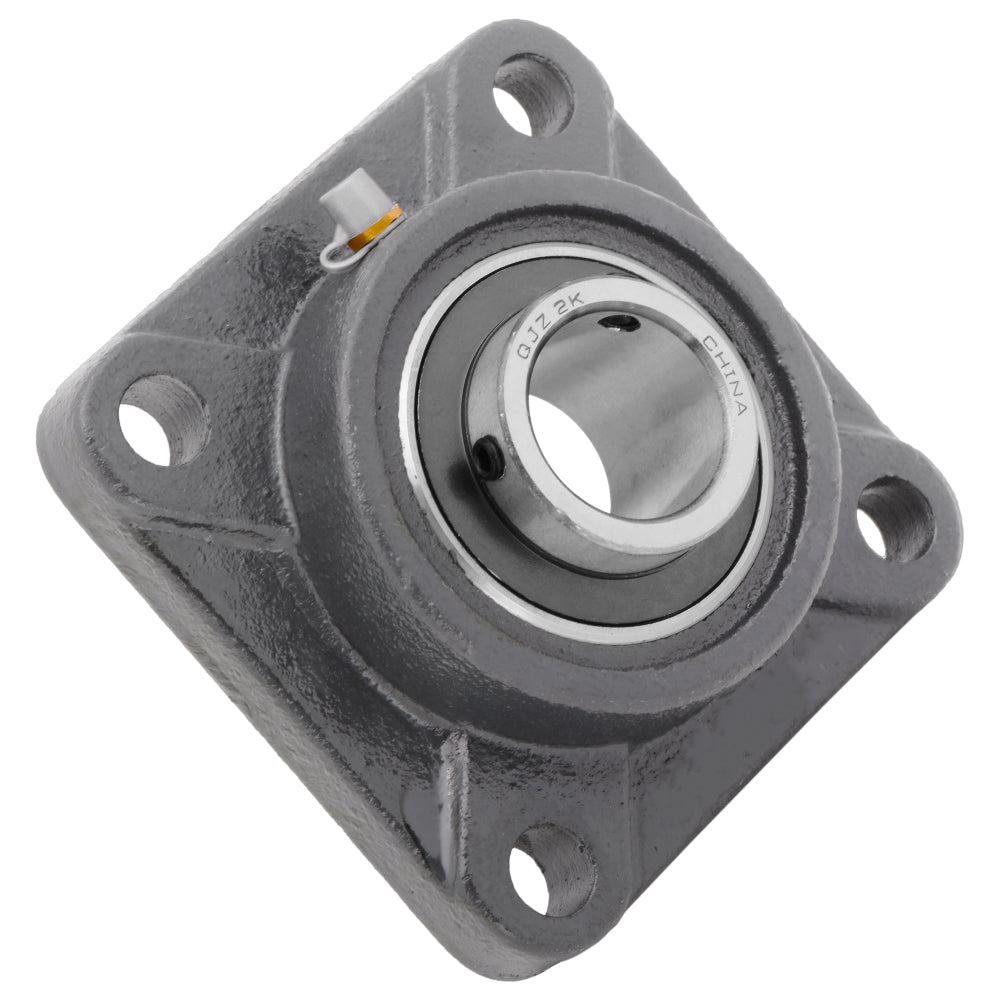

4-Bolt Flange Mounted Unit Ball Bearing: UCFS211-32

The UC series 4-bolt flange mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (UC211-32) and a cast iron housing (FS211) with set-screw locking for secure shaft attachment, easy installation, and long service life.

Model UCFS211-32
Shaft Bore (ID) 2 in | 50.8 mm
Length 6.378 in | 162 mm
Height (Thickness) 2.535 in | 64.4 mm
Bolt to Bolt Spacing 5.118 in | 130 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
