QJZ

UCFS210-31, 4-Bolt Flange Mounted Unit Bearing, 1 15/16 in Bore (ID), Insert Bearing: UC210-31, Housing: FS210

In stock
SKU: UCFS210-31
All of our mounted unit bearings are supplied fully assembled. Please contact us if you require a specific dimension that is not listed.
$29.25

Product details

  • Type Mounted Unit Bearings
    • Part Number UCFS210-31
    • Insert Bearing UC202
    • Housing FS202
    • Bore (ID) 1.94 in
    • Flange Length 5.63 in | 143 mm
    • Flange Height (Thickness) 2.378 in | 60.4 mm
    • Bolt-to-Bolt Spacing 4.37 in | 111 mm
Description

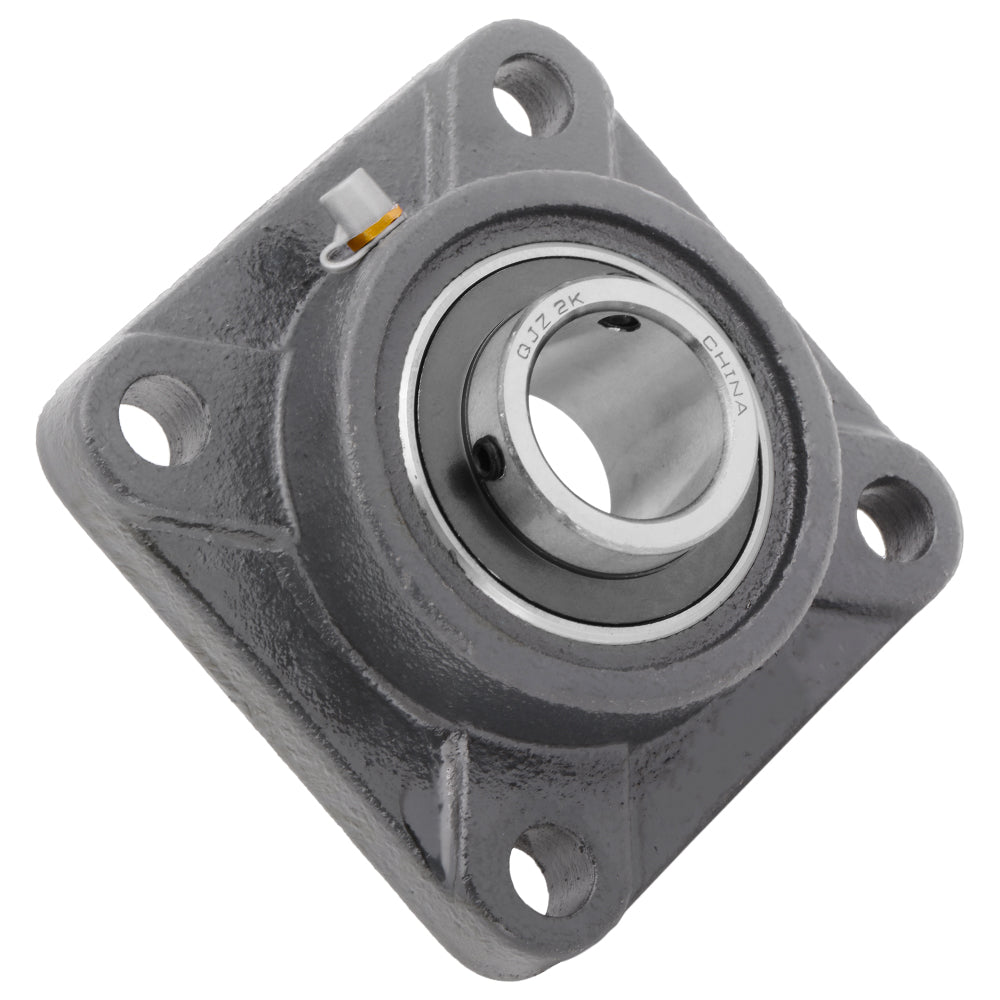

4-Bolt Flange Mounted Unit Ball Bearing: UCFS210-31

The UC series 4-bolt flange mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (UC210-31) and a cast iron housing (FS210) with set-screw locking for secure shaft attachment, easy installation, and long service life.

Model UCFS210-31
Shaft Bore (ID) 1.9375 in | 49.213 mm
Length 5.63 in | 143 mm
Height (Thickness) 2.378 in | 60.4 mm
Bolt to Bolt Spacing 4.37 in | 111 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
