QJZ

UCFS210, 4-Bolt Flange Mounted Unit Bearing, 1.969 in Bore (ID), Insert Bearing: UC210, Housing: FS210

Out of stock
SKU: UCFS210
$28.75
Product details
  • Type Mounted Unit Bearings
  • Part Number UCFS210
  • Insert Bearing UC202
  • Housing FS202
  • Bore (ID) 1.969 in | 50 mm
  • Length 5.63 in | 143 mm
  • Height (Thickness) 2.378 in | 60.4 mm
  • Bolt-to-Bolt Spacing 4.37 in | 111 mm
Description

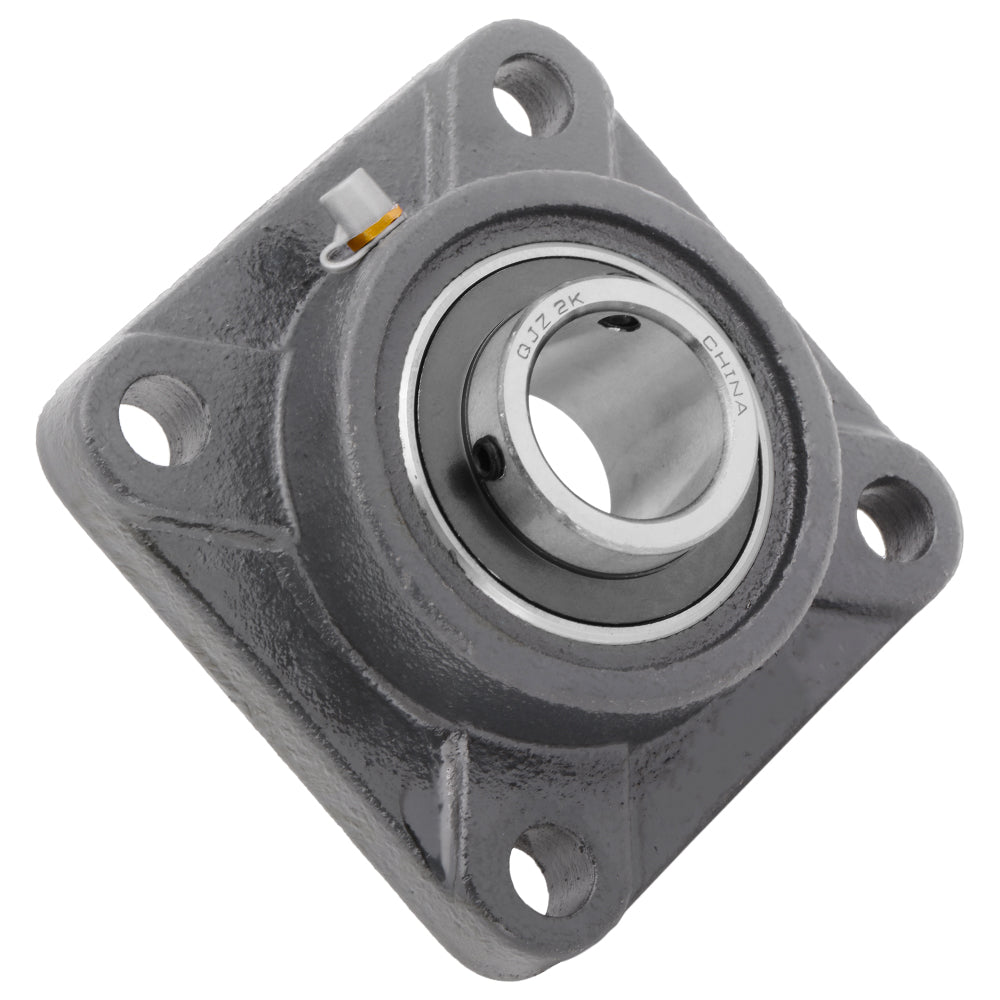

4-Bolt Flange Mounted Unit Ball Bearing: UCFS210

The UC series 4-bolt flange mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (UC210) and a cast iron housing (FS210) with set-screw locking for secure shaft attachment, easy installation, and long service life.

Model UCFS210
Shaft Bore (ID) 1.969 in | 50 mm
Length 5.63 in | 143 mm
Height (Thickness) 2.378 in | 60.4 mm
Bolt to Bolt Spacing 4.37 in | 111 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
