UCFS209-26, 4-Bolt Flange Mounted Unit Bearing, 1 5/8 in Bore (ID), Insert Bearing: UC209-26, Housing: FS209

In stock
SKU: UCFS209-26
All of our mounted unit bearings are supplied fully assembled. Please contact us if you require a specific dimension that is not listed.
$21.95

Product details

  • Type Mounted Unit Bearings
    • Part Number UCFS209-26
    • Insert Bearing UC202
    • Housing FS202
    • Bore (ID) 1.625 in | 41.275 mm
    • Flange Length 5.394 in | 137 mm
    • Flange Height (Thickness) 2.154 in | 54.7 mm
    • Bolt-to-Bolt Spacing 4.134 in | 105 mm
Description

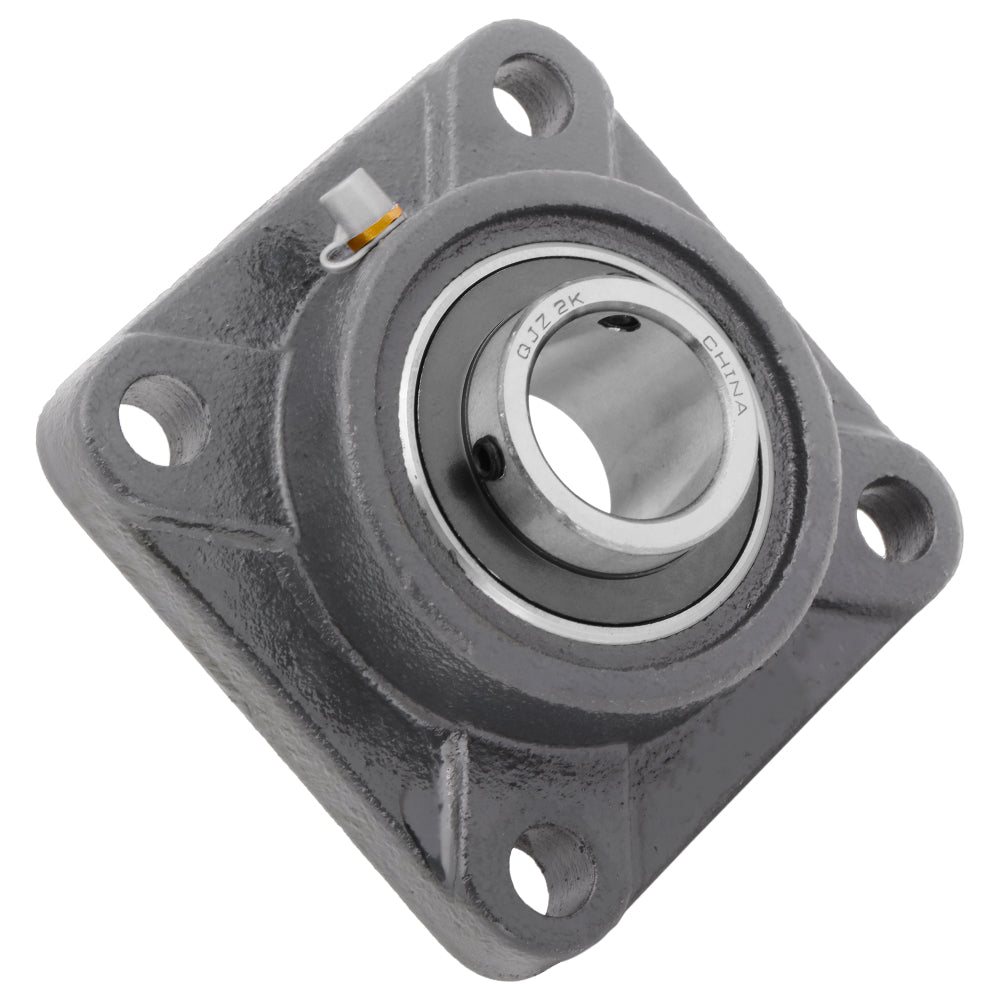

4-Bolt Flange Mounted Unit Ball Bearing: UCFS209-26

The UC series 4-bolt flange mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (UC209-26) and a cast iron housing (FS209) with set-screw locking for secure shaft attachment, easy installation, and long service life.

Model UCFS209-26
Shaft Bore (ID) 1.625 in | 41.275 mm
Length 5.394 in | 137 mm
Height (Thickness) 2.154 in | 54.7 mm
Bolt to Bolt Spacing 4.134 in | 105 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
