QJZ

UCFS208-24, 4-Bolt Flange Mounted Unit Bearing, 1 1/2 in Bore (ID), Insert Bearing: UC208-24, Housing: FS208

In stock
SKU: UCFS208-24
$18.50
Product details
  • Type Mounted Unit Bearings
  • Part Number UCFS208-24
  • Insert Bearing UC202
  • Housing FS202
  • Bore (ID) 1.5 in | 38.1 mm
  • Length 5.118 in | 130 mm
  • Height (Thickness) 2.154 in | 54.7 mm
  • Bolt-to-Bolt Spacing 3.996 in | 101.5 mm
Description

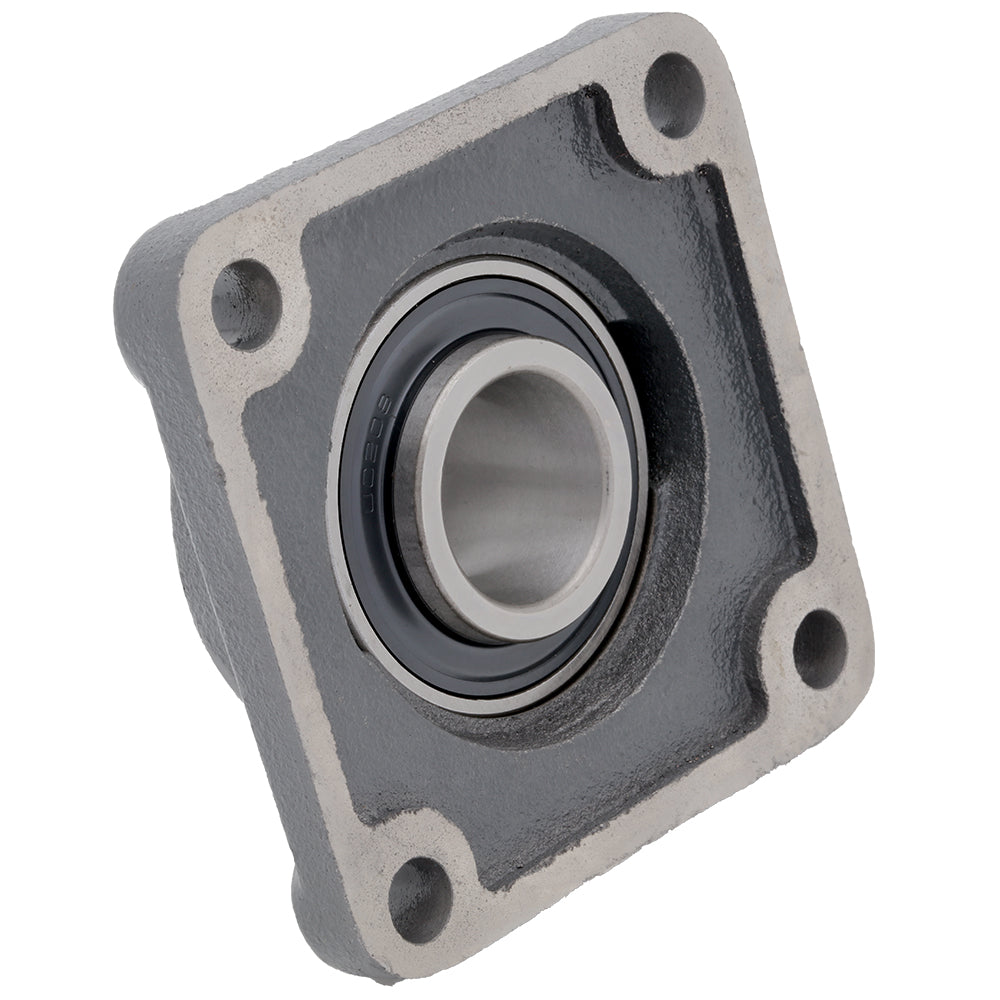

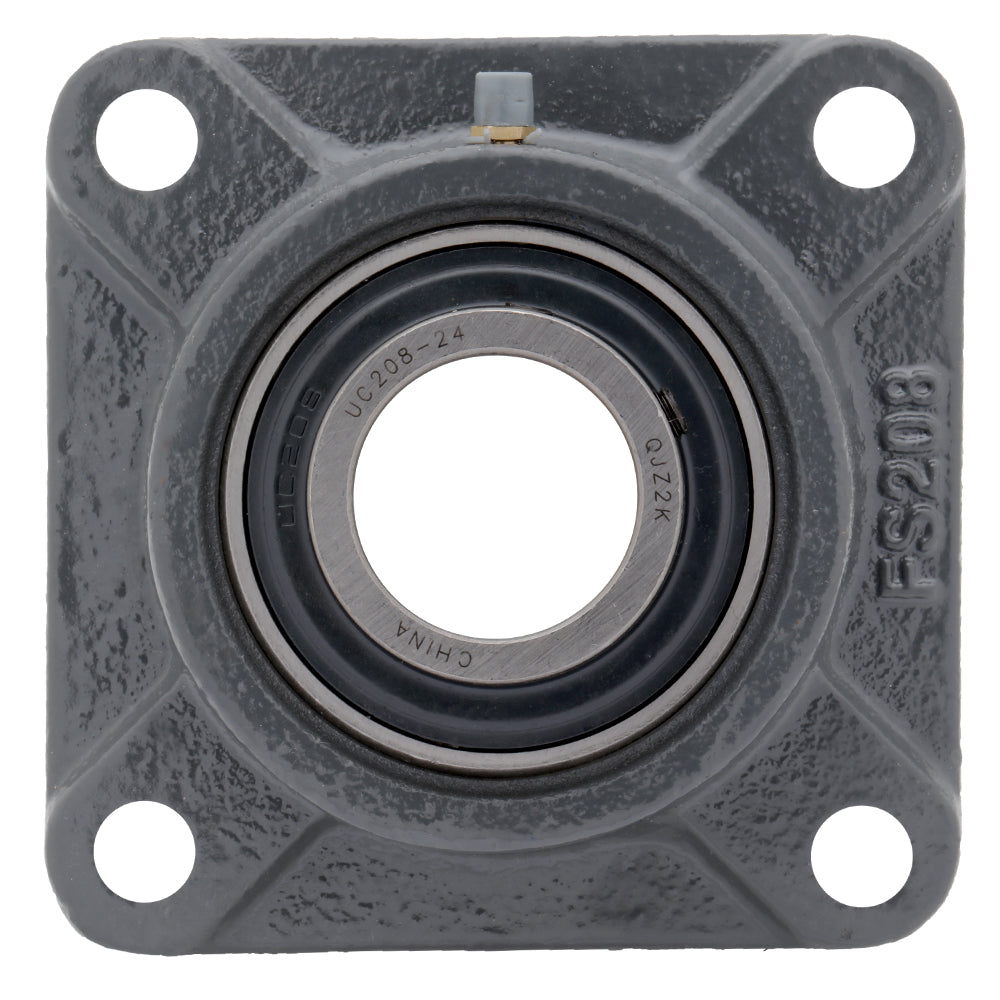

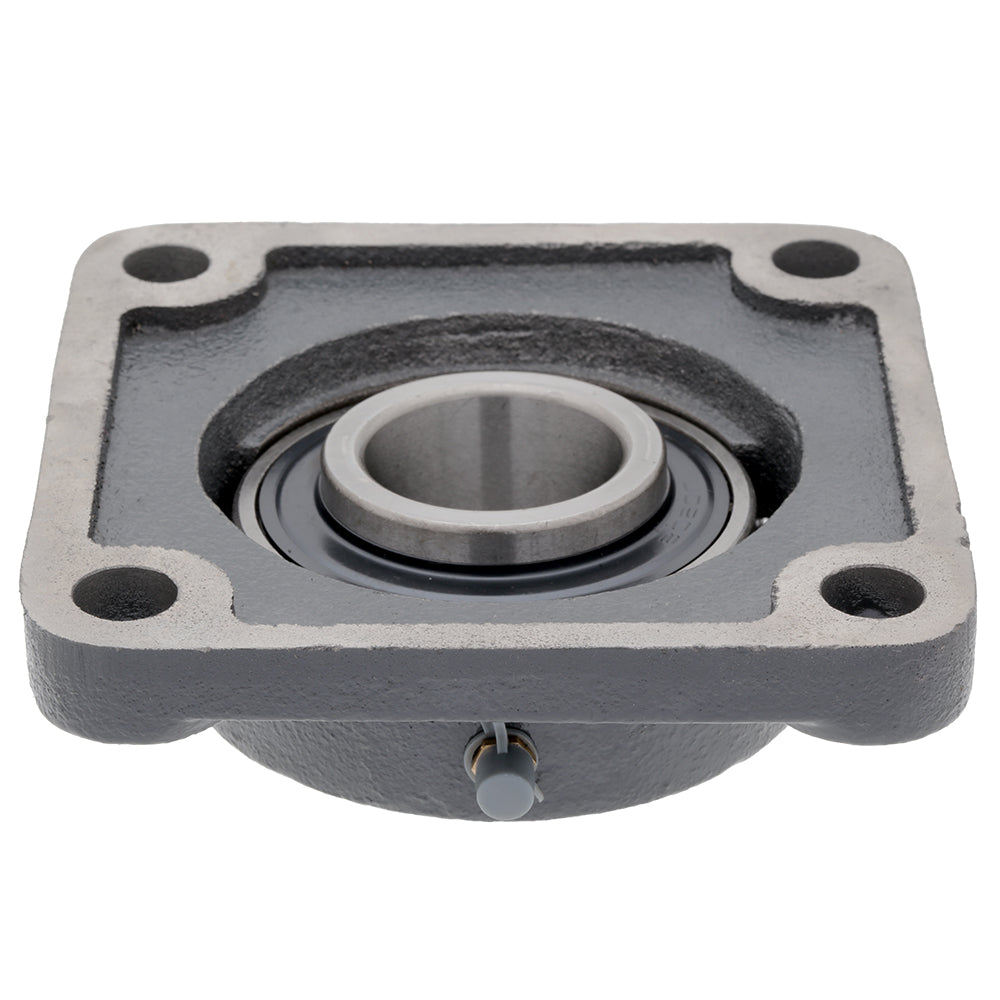

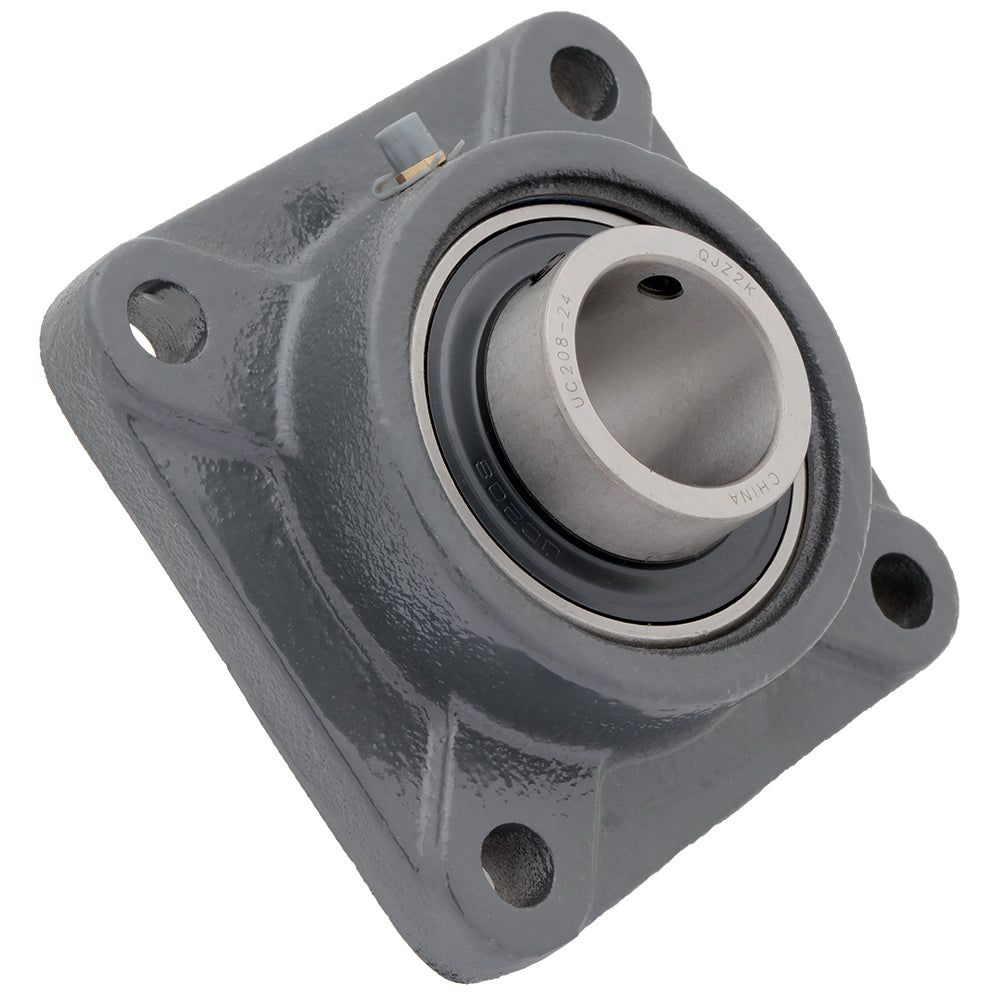

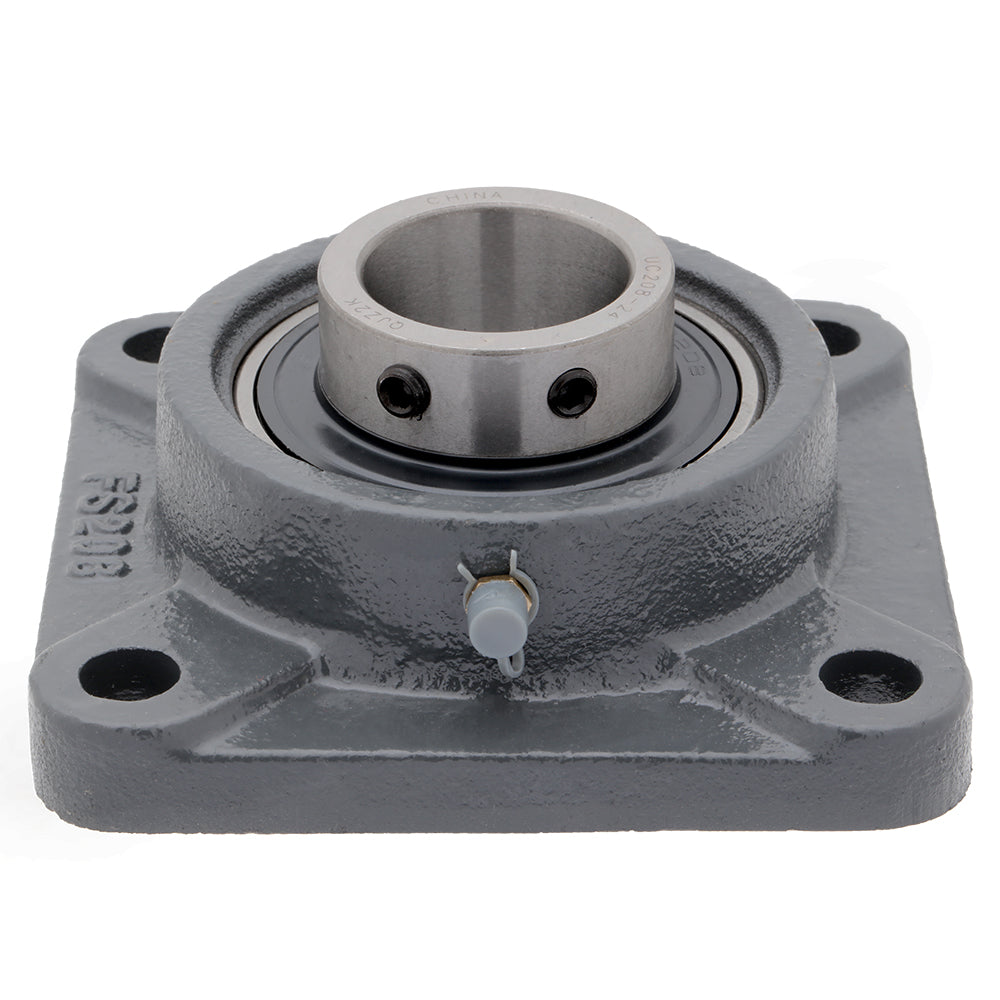

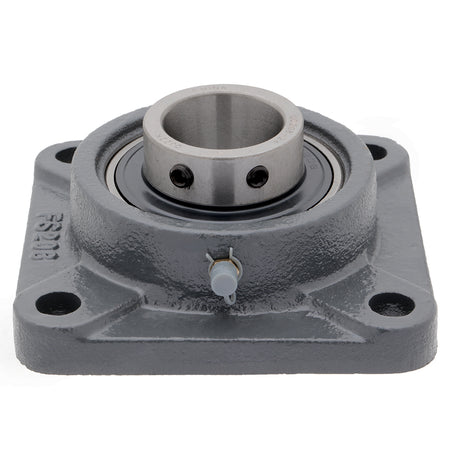

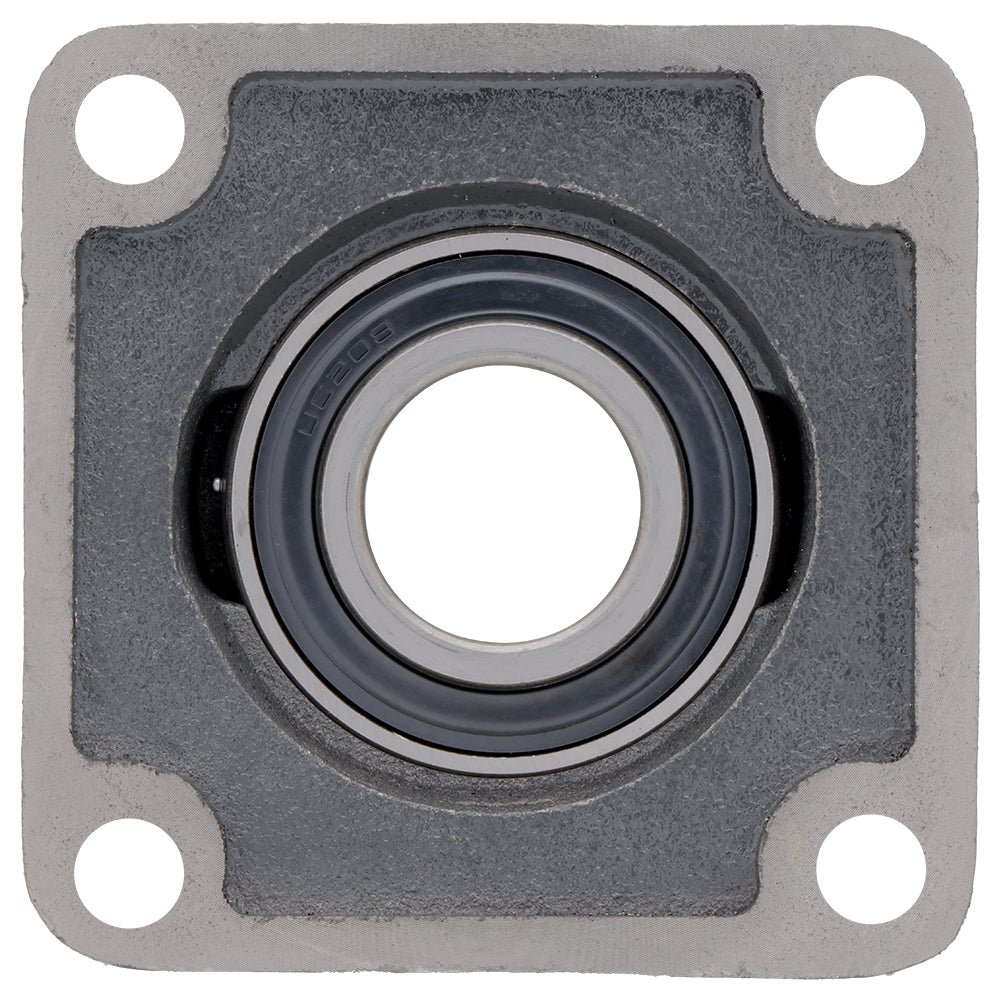

4-Bolt Flange Mounted Unit Ball Bearing: UCFS208-24

The UC series 4-bolt flange mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (UC208-24) and a cast iron housing (FS208) with set-screw locking for secure shaft attachment, easy installation, and long service life.

Model UCFS208-24
Shaft Bore (ID) 1.5 in | 38.1 mm
Length 5.118 in | 130 mm
Height (Thickness) 2.154 in | 54.7 mm
Bolt to Bolt Spacing 3.996 in | 101.5 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
