UCFS207-22, 4-Bolt Flange Mounted Unit Bearing, 1 3/8 in Bore (ID), Insert Bearing: UC207-22, Housing: FS207

In stock
SKU: UCFS207-22
$13.50
Product details
  • Type Mounted Unit Bearings
  • Part Number UCFS207-22
  • Insert Bearing UC202
  • Housing FS202
  • Bore (ID) 1.375 in | 34.925 mm
  • Length 4.606 in | 117 mm
  • Height (Thickness) 1.866 in | 47.4 mm
  • Bolt-to-Bolt Spacing 3.622 in | 92 mm
Description

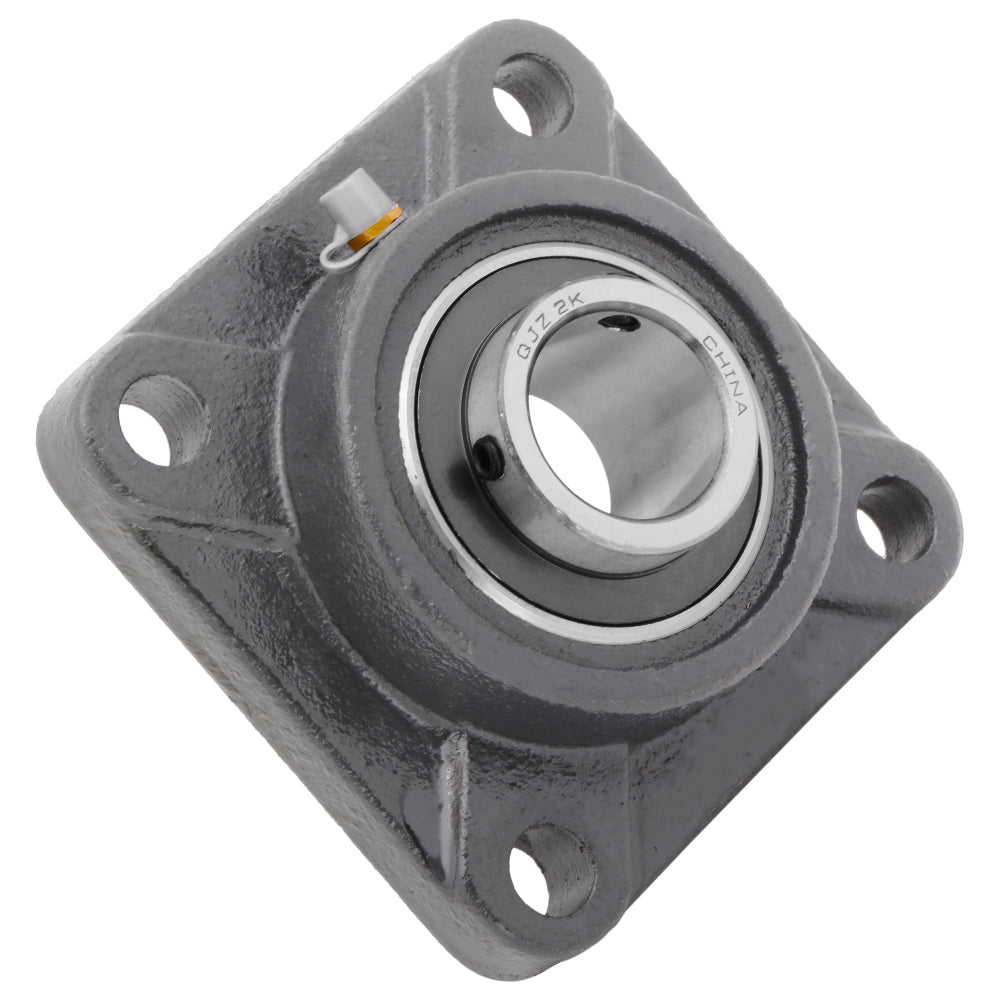

4-Bolt Flange Mounted Unit Ball Bearing: UCFS207-22

The UC series 4-bolt flange mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (UC207-22) and a cast iron housing (FS207) with set-screw locking for secure shaft attachment, easy installation, and long service life.

Model UCFS207-22
Shaft Bore (ID) 1.375 in | 34.925 mm
Length 4.606 in | 117 mm
Height (Thickness) 1.866 in | 47.4 mm
Bolt to Bolt Spacing 3.622 in | 92 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
