QJZ

UCFS205, 4-Bolt Flange Mounted Unit Bearing, 0.984 in Bore (ID), Insert Bearing: UC205, Housing: FS205

In stock
SKU: UCFS205
All of our mounted unit bearings are supplied fully assembled. Please contact us if you require a specific dimension that is not listed.
$9.25

Product details

  • Type Mounted Unit Bearings
    • Part Number UCFS205
    • Insert Bearing UC202
    • Housing FS202
    • Bore (ID) 0.98 in
    • Flange Length 3.661 in | 93 mm
    • Flange Height (Thickness) 1.606 in | 40.8 mm
    • Bolt-to-Bolt Spacing 2.756 in | 70 mm
Description

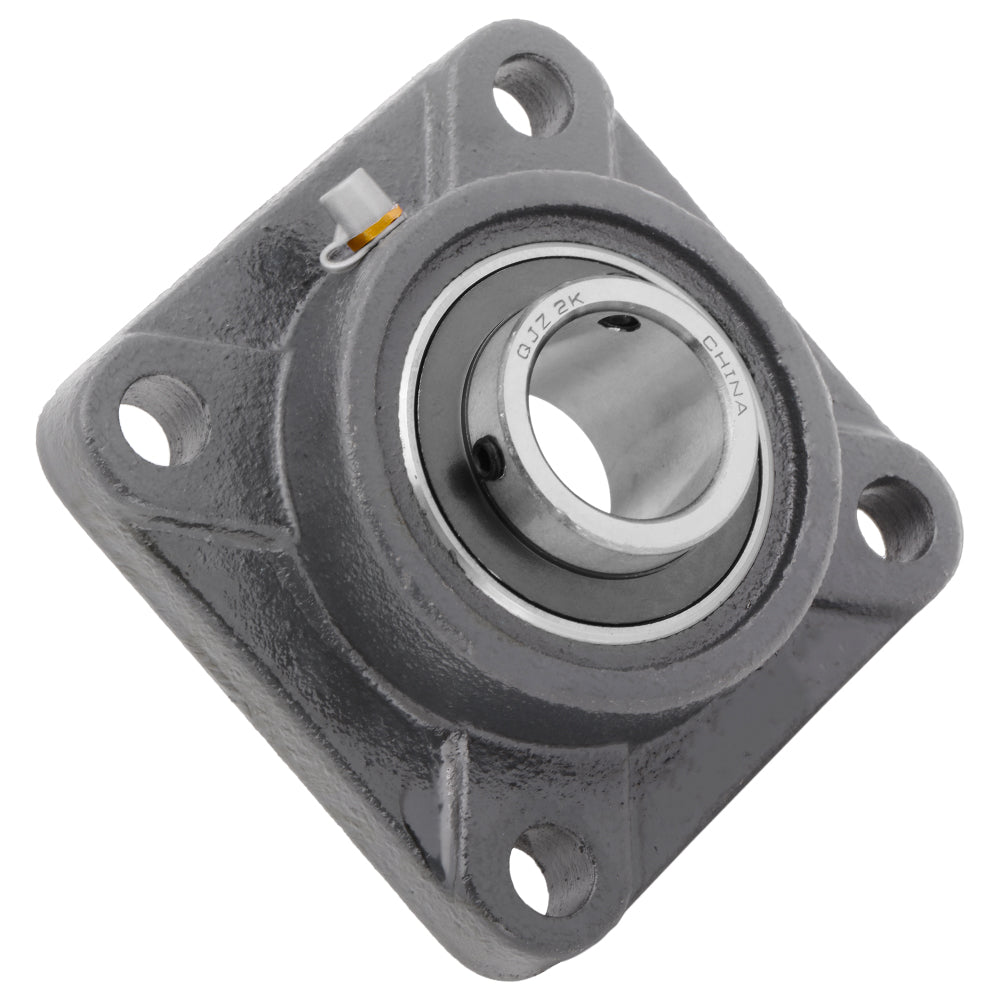

4-Bolt Flange Mounted Unit Ball Bearing: UCFS205

The UC series 4-bolt flange mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (UC205) and a cast iron housing (FS205) with set-screw locking for secure shaft attachment, easy installation, and long service life.

Model UCFS205
Shaft Bore (ID) 0.984 in | 25 mm
Length 3.661 in | 93 mm
Height (Thickness) 1.606 in | 40.8 mm
Bolt to Bolt Spacing 2.756 in | 70 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
