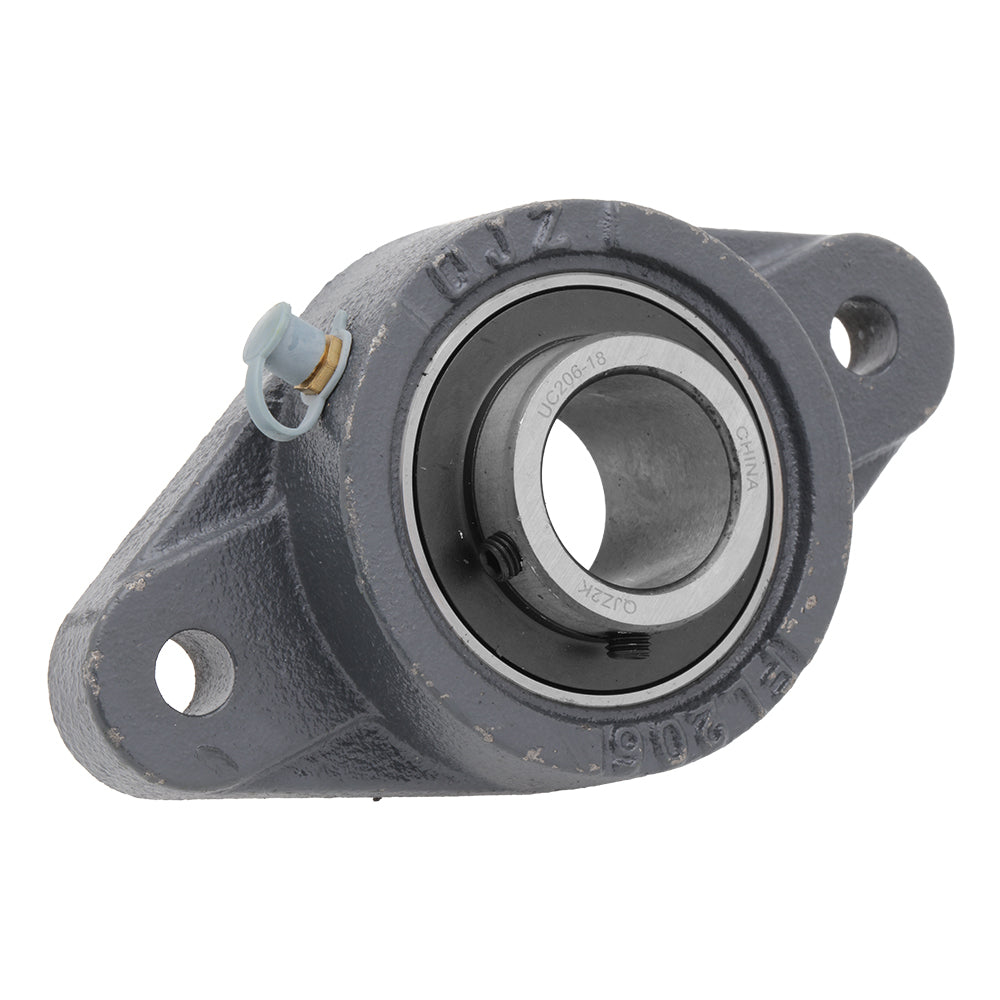

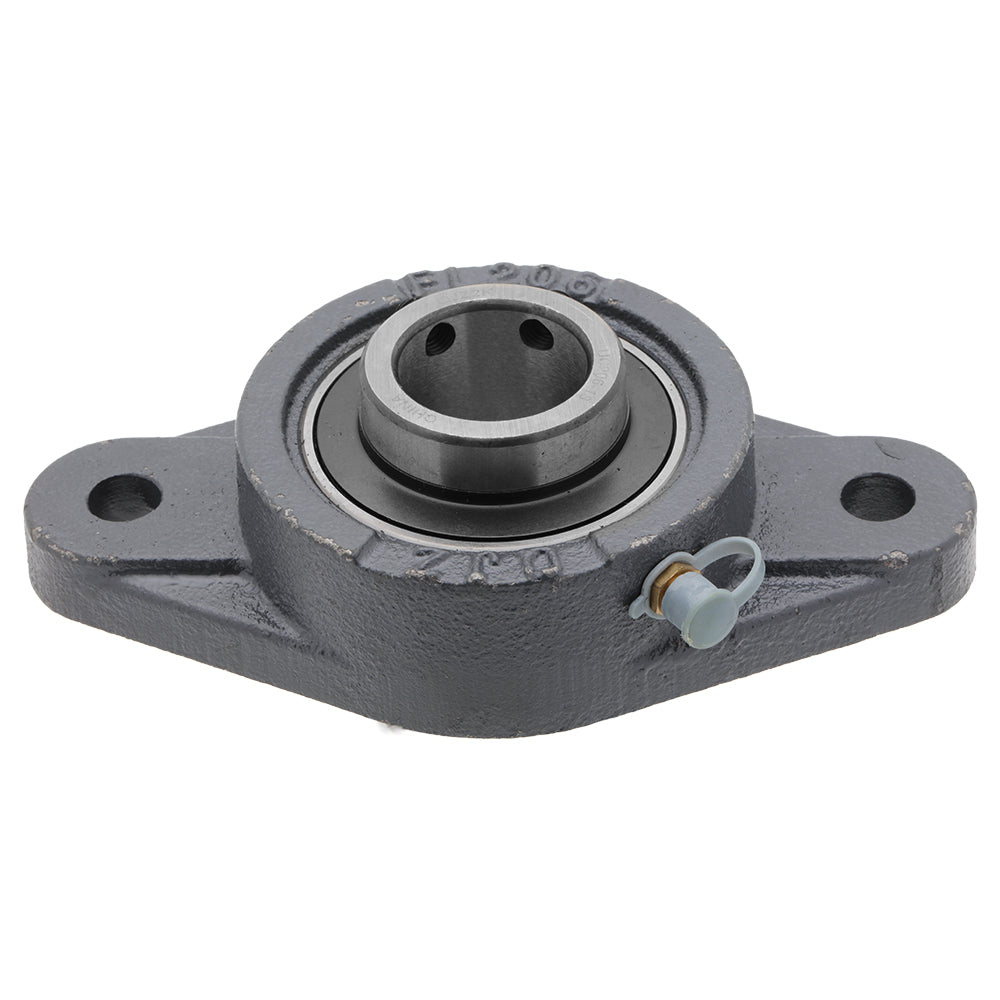

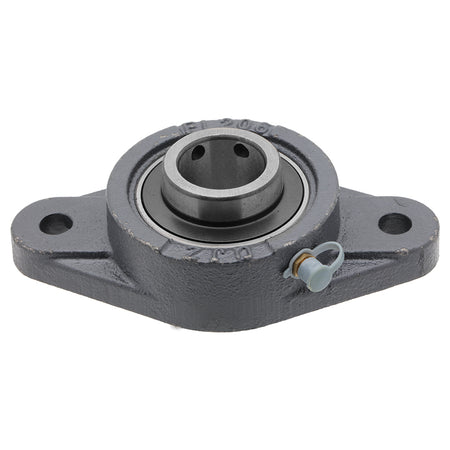

UCFL206-18 - 2-Bolt Flange Mounted Ball Bearing, Insert Bearing: UC206-18, Housing: FL206

In stock
SKU: UCFL206-18
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
$18.99
Product details
  • Part Number UCFL206-18
  • Housing FL206
  • Insert Bearing UC206-18
  • Bore (ID) 1.125 in | 28.575 mm
  • Bolt to Bolt 4.606 in | 117 mm
  • Length 5.827 in | 148 mm
  • Width 3.15 in | 80 mm
  • Height 1.583 in | 40.2 mm
Description

Premium 2-Bolt Flanged Mounted Unit Bearing

The UCFL series 2-bolt flanged mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and a cast iron housing with a set screw locking, designed for easy installation and long-lasting performance.

Part Number UCFL206-18
Bore (ID) 1.125 in | 28.575 mm
Length 5.827 in | 148 mm
Height 1.583 in | 40.2 mm
Width 3.15 in | 80 mm
Bolt to Bolt 4.606 in | 117 mm

Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
