QJZ

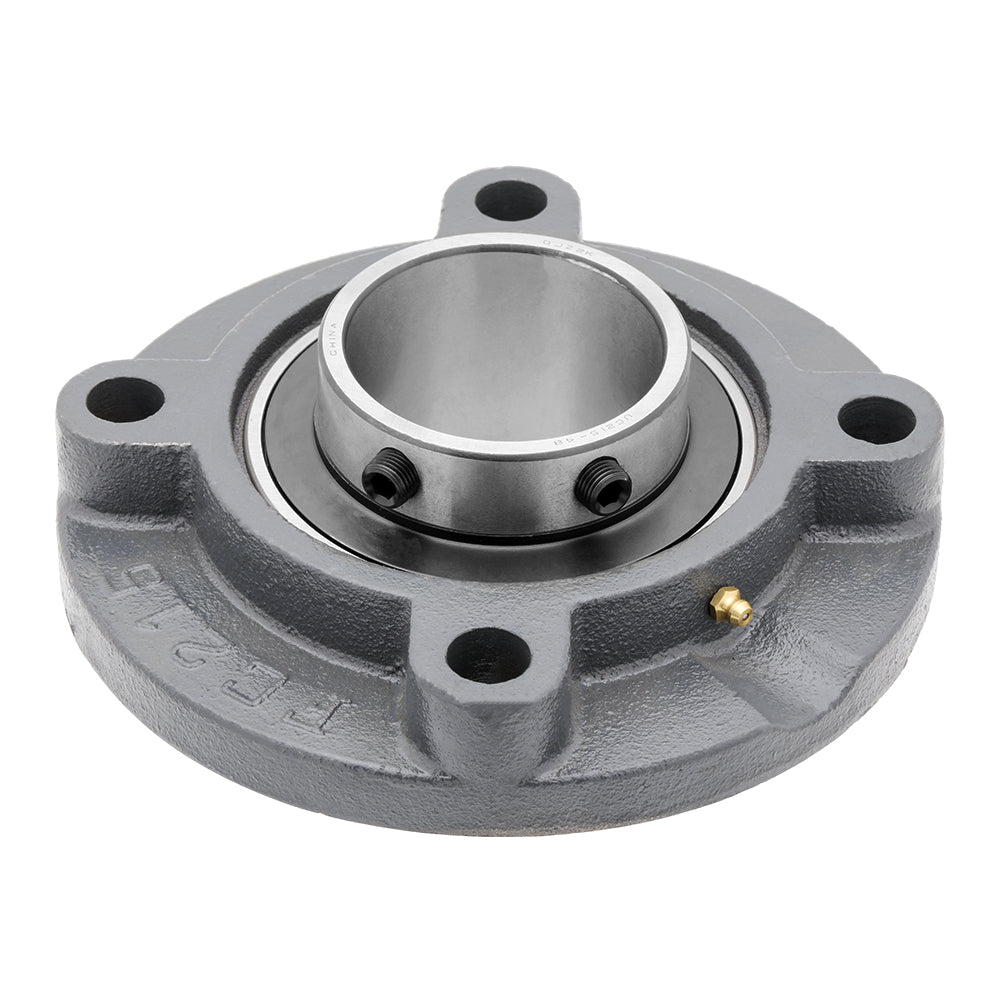

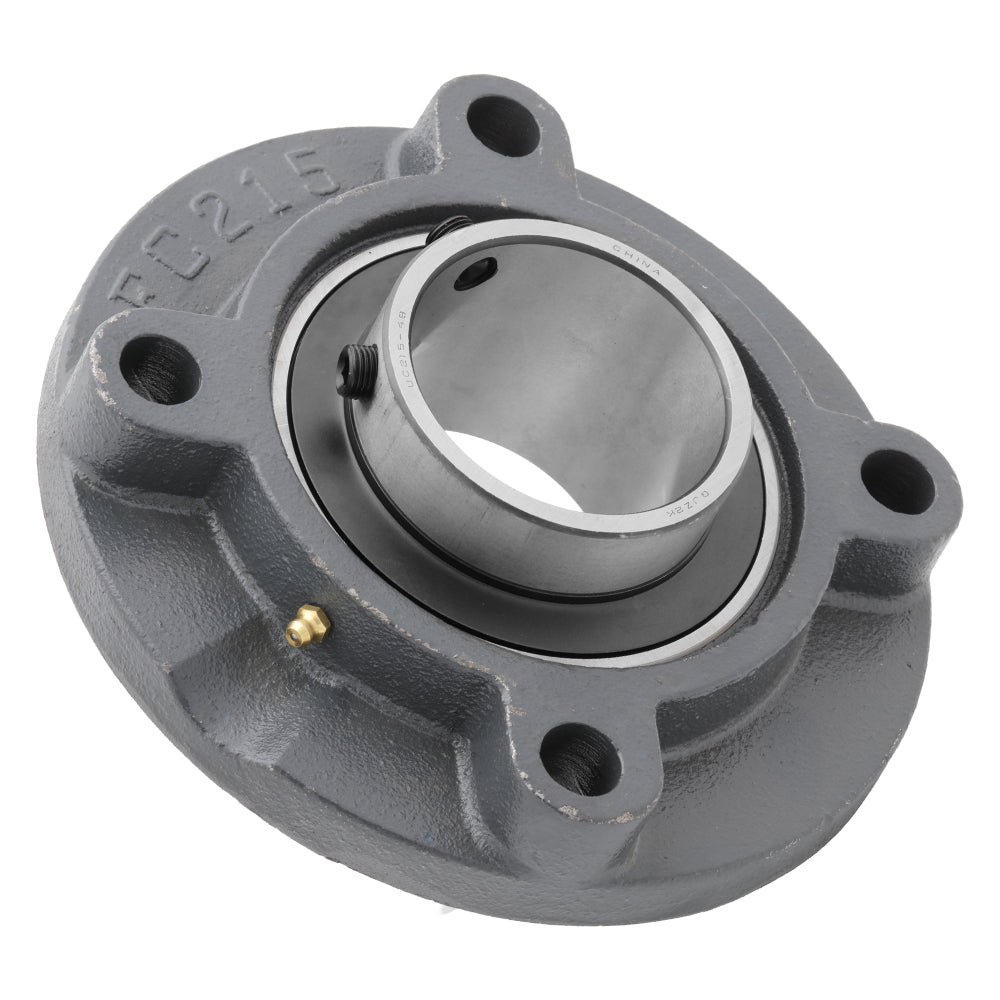

UCFC215-48 - 4-Bolt Flange Mounted Ball Bearing, Insert Bearing: UC215-48, Housing: FC215

In stock
SKU: UCFC215-48
All of our mounted unit bearings are supplied fully assembled. Please contact us if you require a specific dimension that is not listed.
$75.99

Product details

  • Type Mounted Unit Bearings
    • Part Number UCFC215-48
    • Insert Bearing UC215-48
    • Housing FC215
    • Bore (ID) 3 in
    • Flange Length 8.661 in
    • Flange Height (Thickness) 2.461 in
    • Pitch Circle Diameter 7.244 in
Description

4-Bolt Mounted Unit Ball Bearing:

UCFC215-48

Pitch Circle Diameter:

7.244 in | 184 mm

Flange Length Diameter:

8.661 in | 220 mm

Flange Height:

2.461 in | 62.5 mm

Bolt to Bolt Spacing:

5.122 in | 130.1 mm

Bolt Used (MM):

M16
