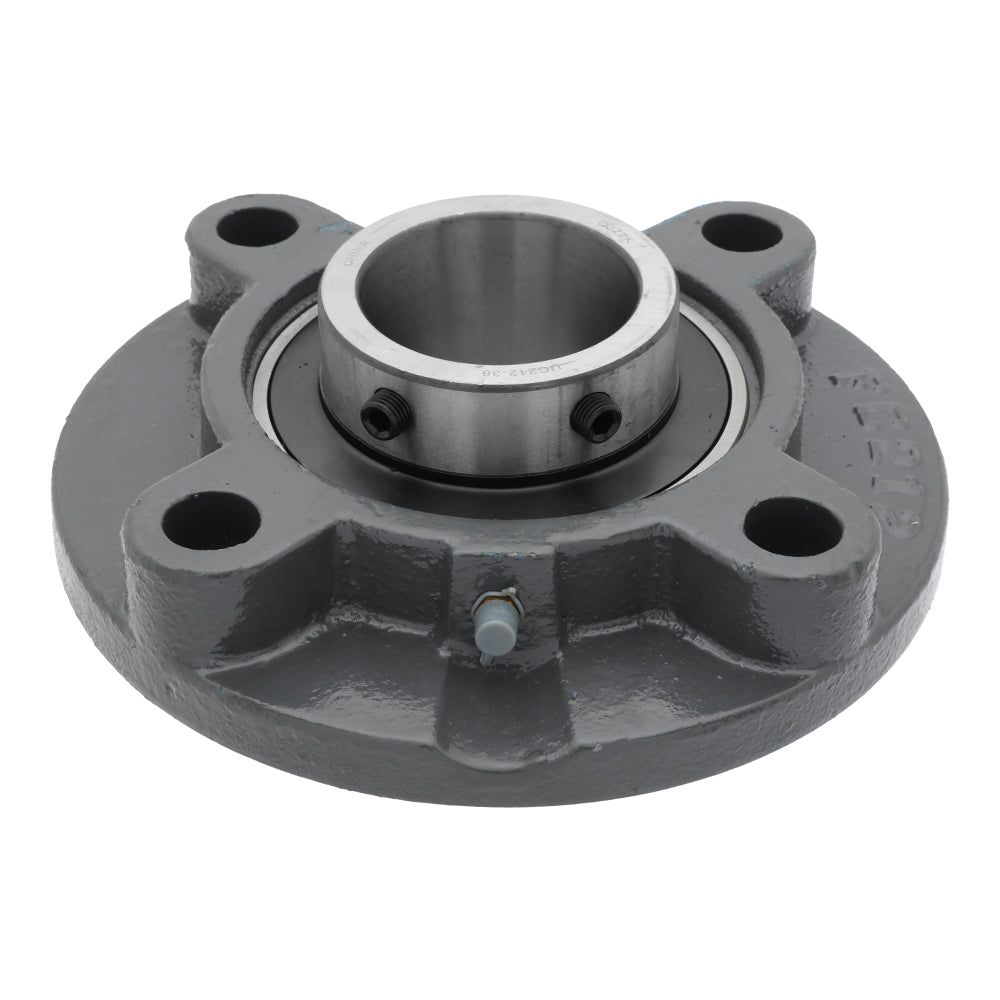

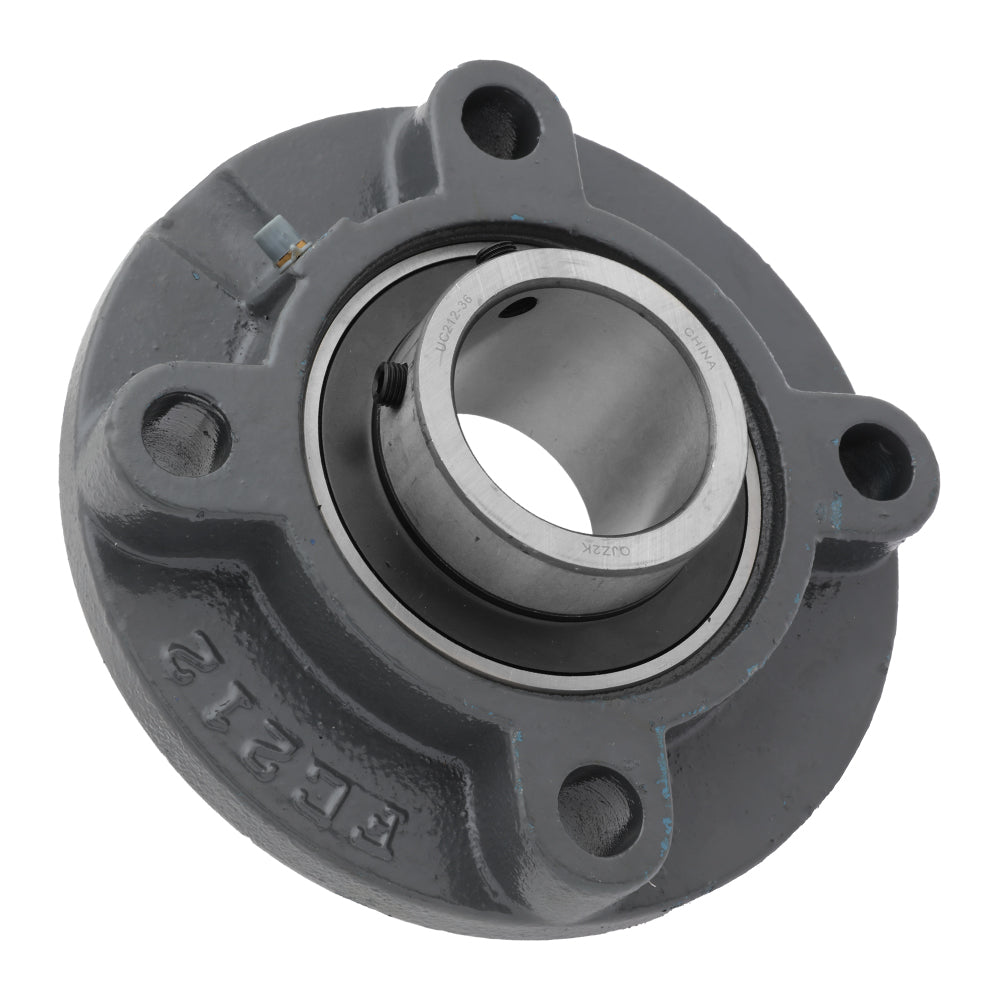

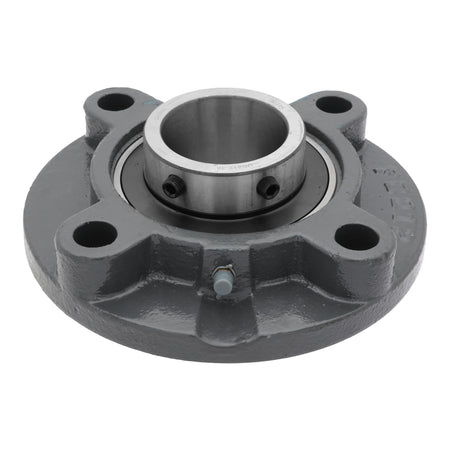

UCFC212-36 - 4-Bolt Flange Mounted Ball Bearing, Insert Bearing: UC212-36 , Cast Iron Housing: FC212

In stock
SKU: UCFC212-36
All of our mounted unit bearings are provided fully assembled. Should you require to receive insert bearing and housing separately, please contact us for assistance.
$39.99

Product details

  • Type Mounted Unit Bearings
  • Part Number UCFC212-36
  • Insert Bearing UC212-36
  • Housing FC212
  • Bore (ID) 2.25 in
  • Flange Length Diameter 7.677 in
  • Pitch Circle Diameter 6.299 in
  • Flange Height 2.232 in
Description

4-Bolt Mounted Unit Ball Bearing:

UCFC212-36

Pitch Circle Diameter:

6.299 in | 160 mm

Flange Length Diameter:

7.677 in | 195 mm

Flange Height:

2.232 in | 56.7 mm

Bolt to Bolt Spacing:

4.453 in | 113.1 mm

Bolt Used (MM):

M16
