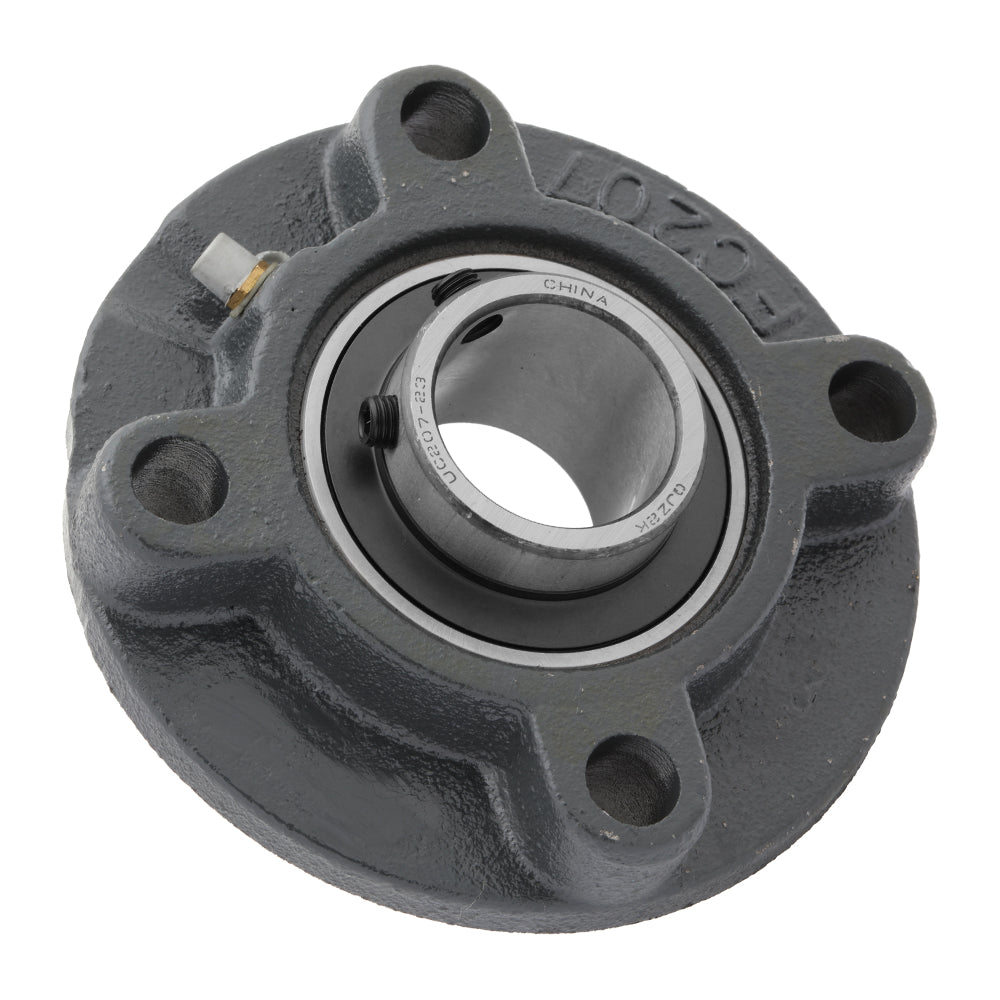

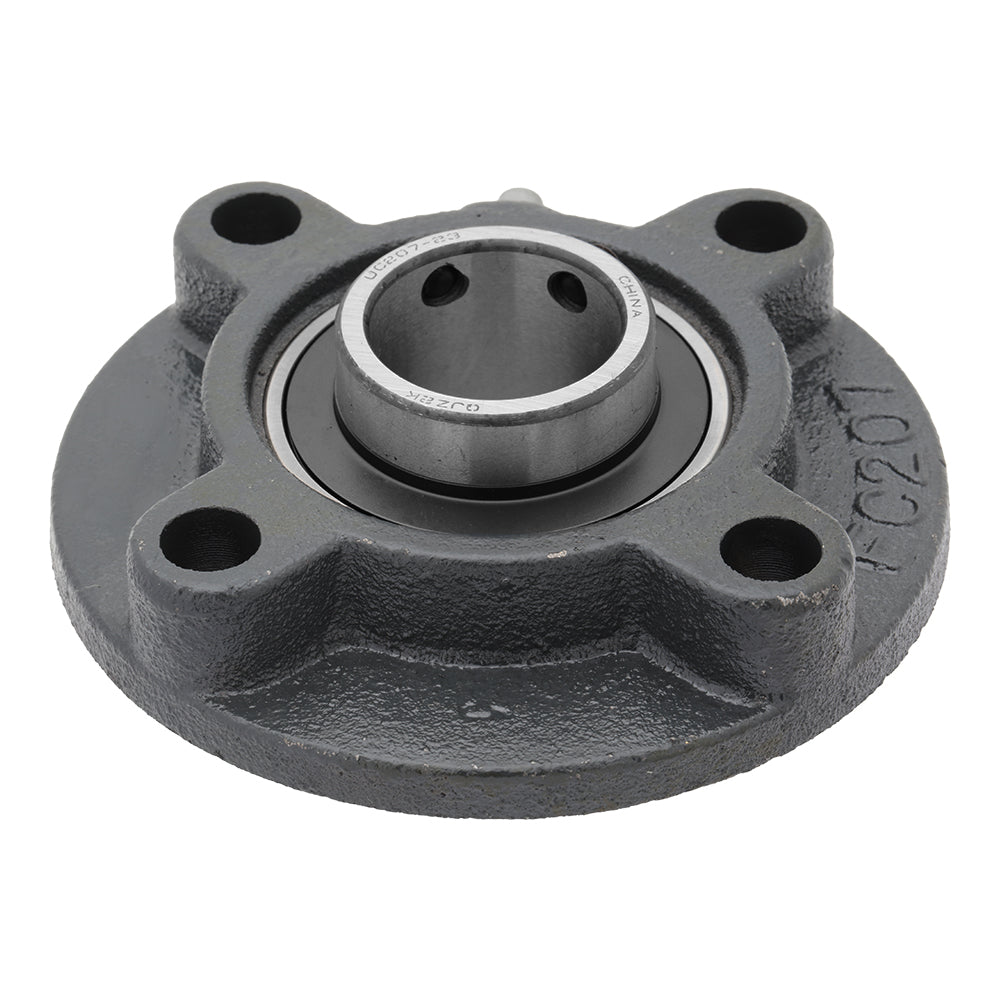

UCFC207-23 - 4-Bolt Flange Mounted Ball Bearing, Insert Bearing: UC207-23, Cast Iron Housing: FC207

In stock
SKU: UCFC207-23
All of our mounted unit bearings are provided fully assembled. Should you require to receive insert bearing and housing separately, please contact us for assistance.
$17.75

Product details

  • Type Mounted Unit Bearings
  • Part Number UCFC207-23
  • Insert Bearing UC207-23
  • Housing FC207
  • Bore (ID) 1.44 in
  • Flange Length Diameter 5.315 in
  • Pitch Circle Diameter 4.331 in
  • Flange Height 1.433 in
Description

4-Bolt Mounted Unit Ball Bearing:

UCFC207-23

Pitch Circle Diameter:

4.331 in | 110 mm

Flange Length Diameter:

5.315 in | 135 mm

Flange Height:

1.433 in | 36.4 mm

Bolt to Bolt Spacing:

2.783 in | 70.7 mm

Bolt Used (MM):

M12
