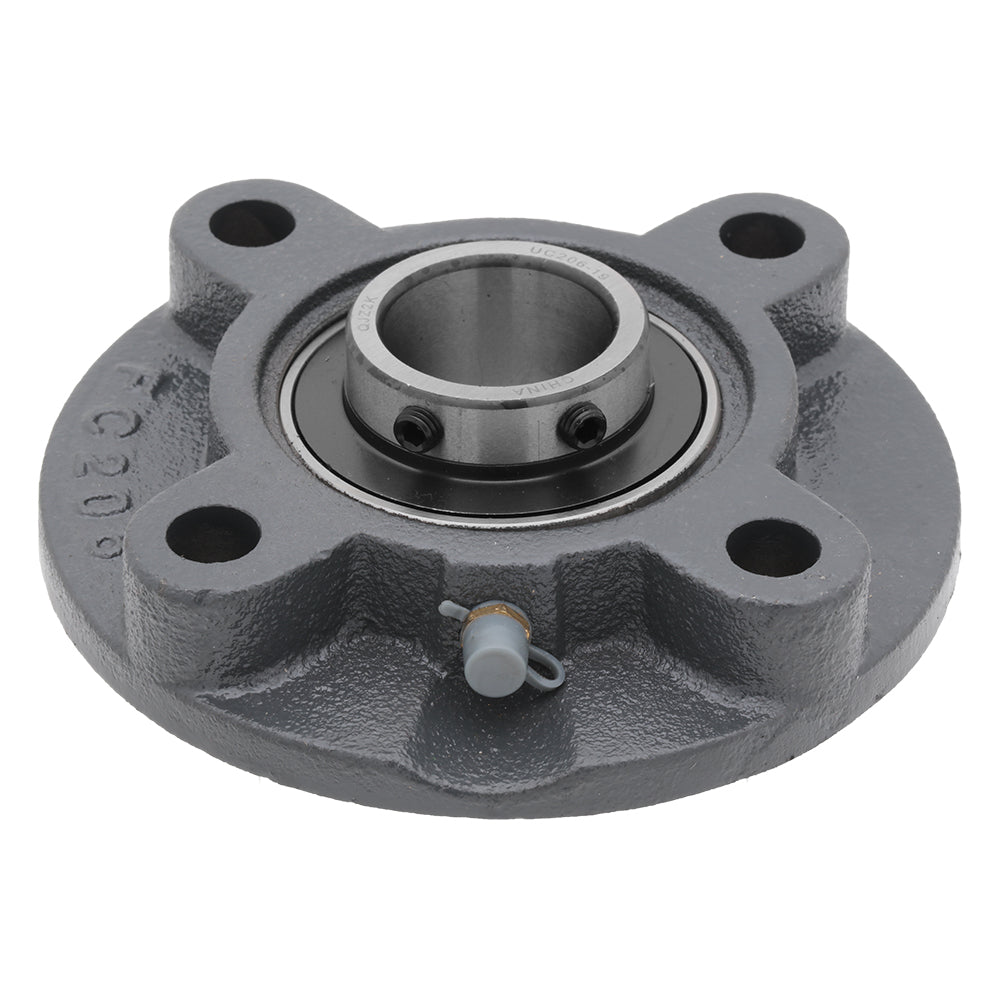

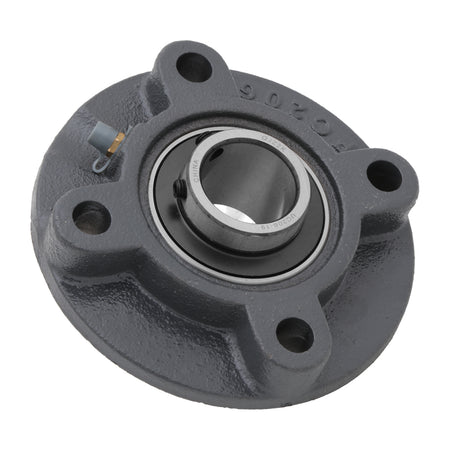

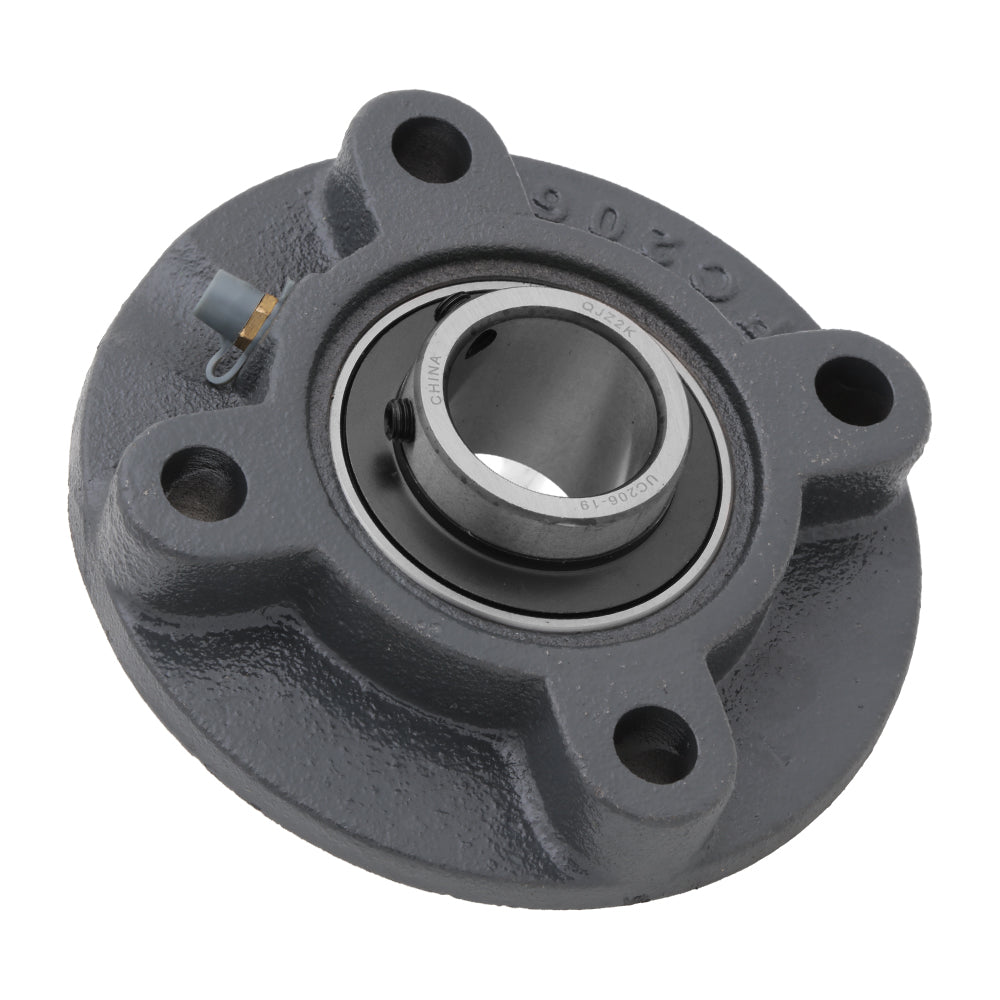

UCFC206-19 - 4-Bolt Flange Mounted Ball Bearing, Insert Bearing: UC206-19 , Housing: FC206

In stock
SKU: UCFC206-19
All of our mounted unit bearings are supplied fully assembled. Please contact us if you require a specific dimension that is not listed.
$21.99

Product details

  • Type Mounted Unit Bearings
    • Part Number UCFC206-19
    • Insert Bearing UC206-19
    • Housing FC206
    • Bore (ID) 1.19 in
    • Flange Length 4.921 in
    • Flange Height (Thickness) 1.268 in
    • Pitch Circle Diameter 3.937 in
Description

4-Bolt Mounted Unit Ball Bearing:

UCFC206-19

Pitch Circle Diameter:

3.937 in | 100 mm

Flange Length Diameter:

4.921 in | 125 mm

Flange Height:

1.268 in | 32.2 mm

Bolt to Bolt Spacing:

2.783 in | 70.7 mm

Bolt Used (MM):

M10
