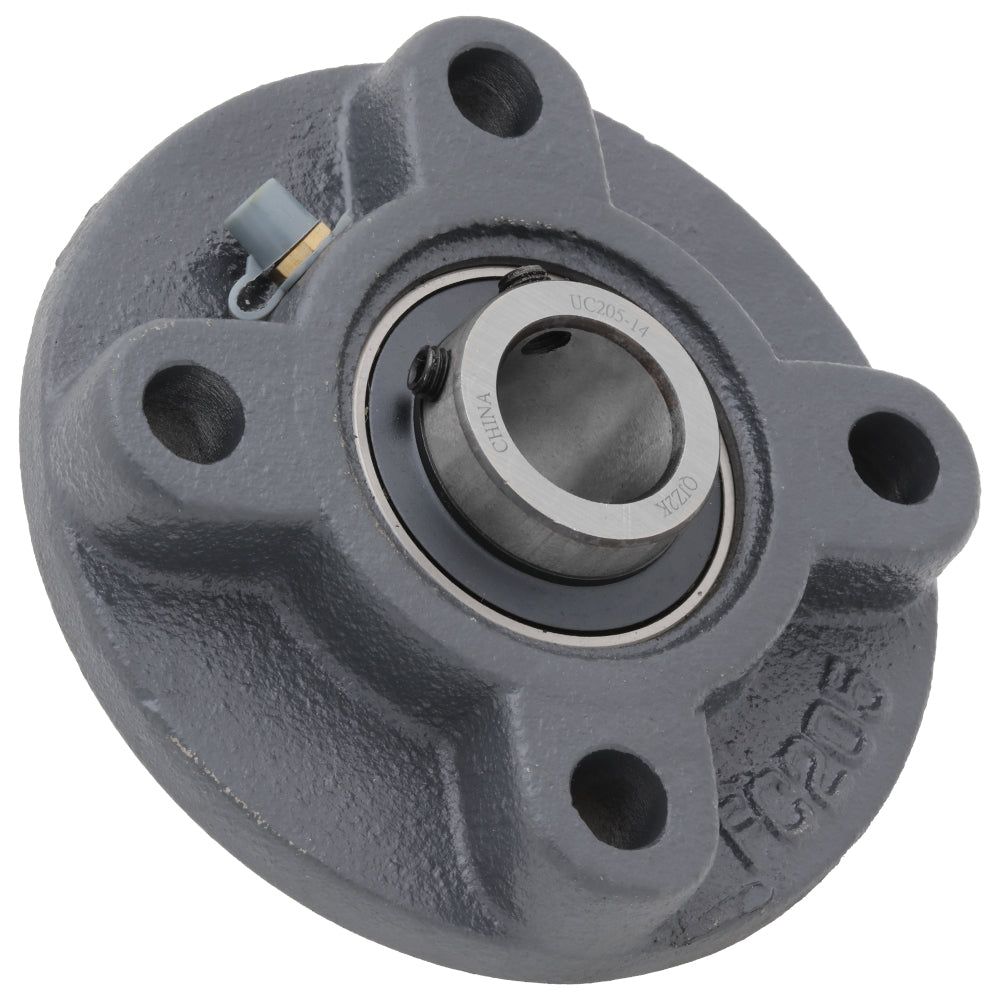

Gray mounted unit bearing housing on a white background
Gray mounted unit bearing housing on a white background
QJZ

UCFC205-14, 4-Bolt Flange Mounted Ball Bearing, 0.875"Bore (ID), Insert Bearing: UC205-14, Housing: FC205

In stock
SKU: UCFC205-14
$17.99
Product details
  • Type Mounted Unit Bearings
  • Part Number UCFC205-14
  • Insert Bearing UC205-14
  • Housing FC205
  • Bore (ID) 0.875 in | 22.225 mm
  • Length 4.528 in | 115 mm
  • Height (Thickness) 1.169 in | 29.7 mm
  • Pitch Circle Diameter 3.543 in | 90 mm
Description

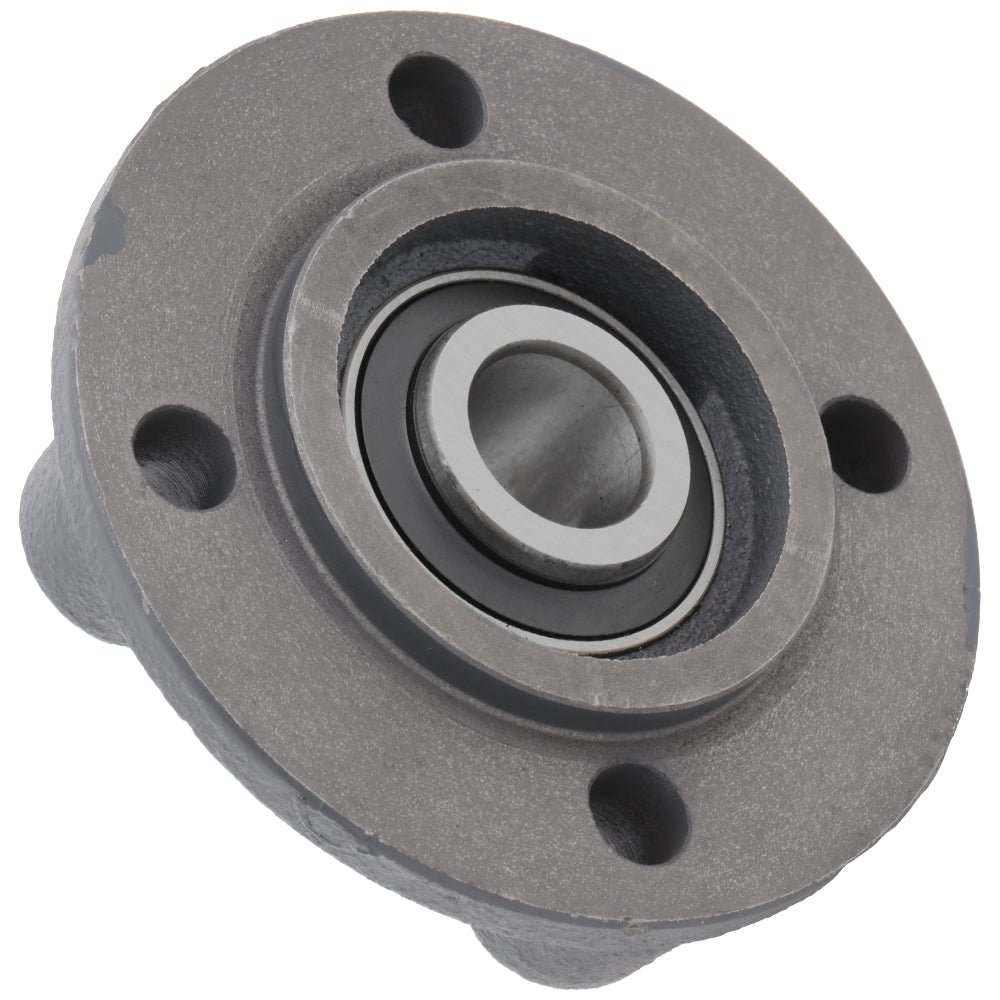

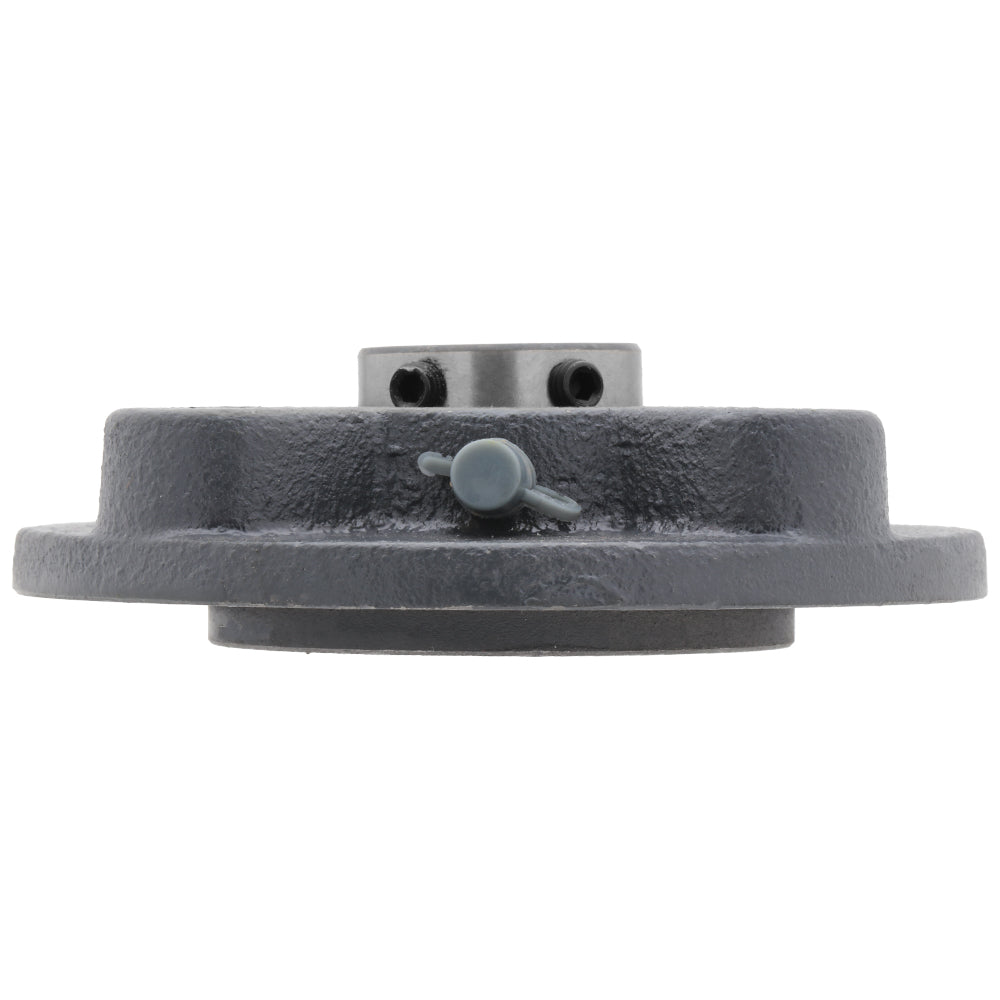

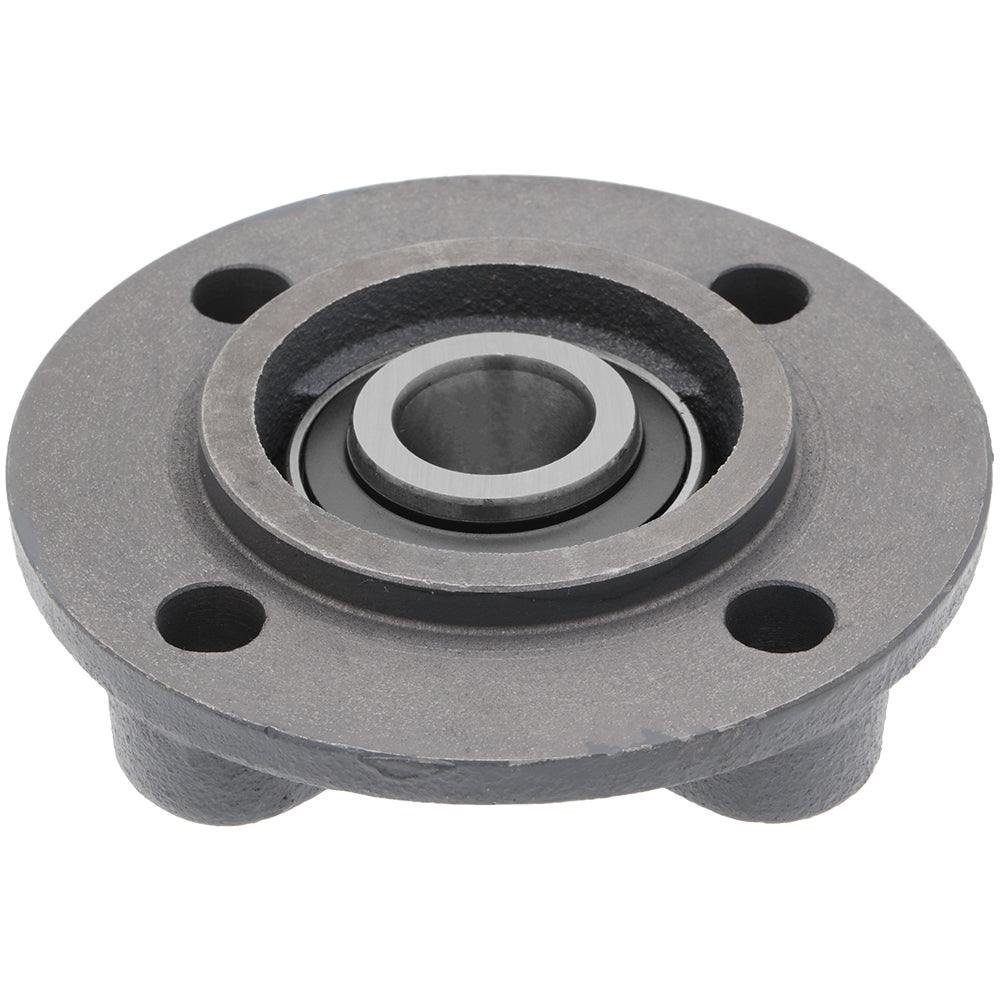

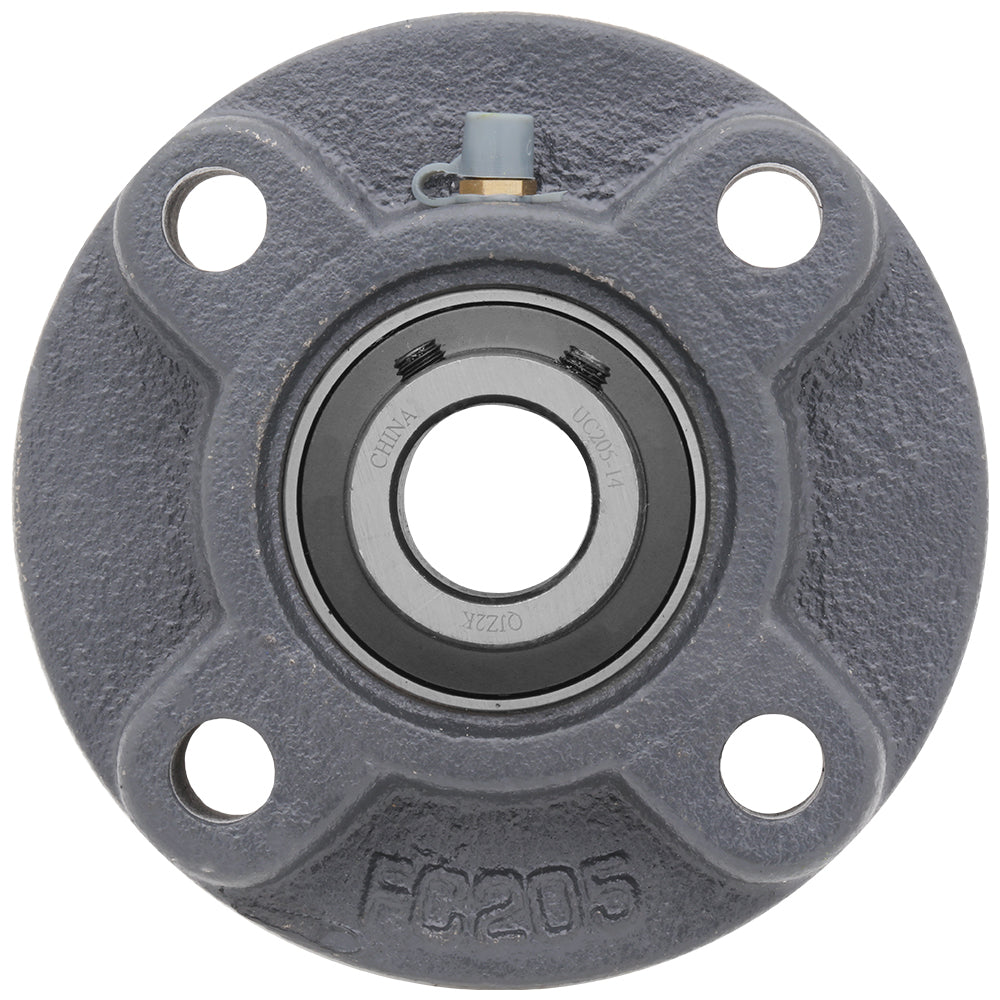

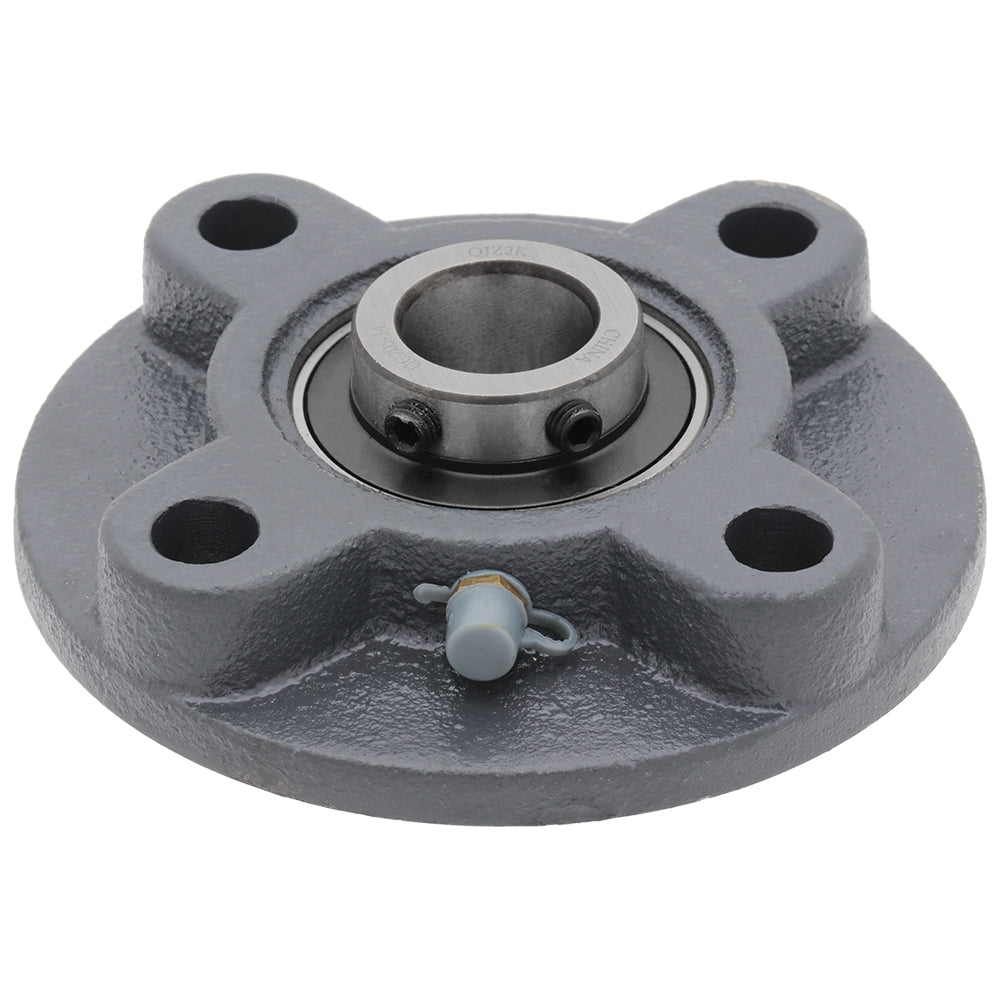

4-Bolt Flange Mounted Unit Ball Bearing

The UCFC series 4-bolt flange mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit features a round flange housing with secure locking insert bearing for stable mounting and long service life.

Part Number UCFC205-14
Shaft Bore (ID) 0.875 in | 22.225 mm
Bolt Circle Diameter 3.543 in | 90 mm
Height 1.169 in | 29.7 mm
Length 4.528 in | 115 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
