UCFB202 - 3-Bolt Flange Bracket Mounted Ball Bearing, 0.591" Bore (ID), Insert Bearing: UCW202, Housing: FB203

Out of stock
SKU: UCFB202
All of our mounted unit bearings are provided fully assembled. Should you require to receive insert bearing and housing separately, please contact us for assistance.
$20.99
Product details
  • Type Mounted Unit Bearings
  • Part Number UCFB202
  • Insert Bearing UCW202
  • Cast Iron Housing FB203
  • Bore (ID) 0.59 in
  • Length 4.094 in | 104 mm
  • Height 1.177 in | 30 mm
  • Width 2.165 in | 55 mm

Please contact us for more information on dimensions.

Description

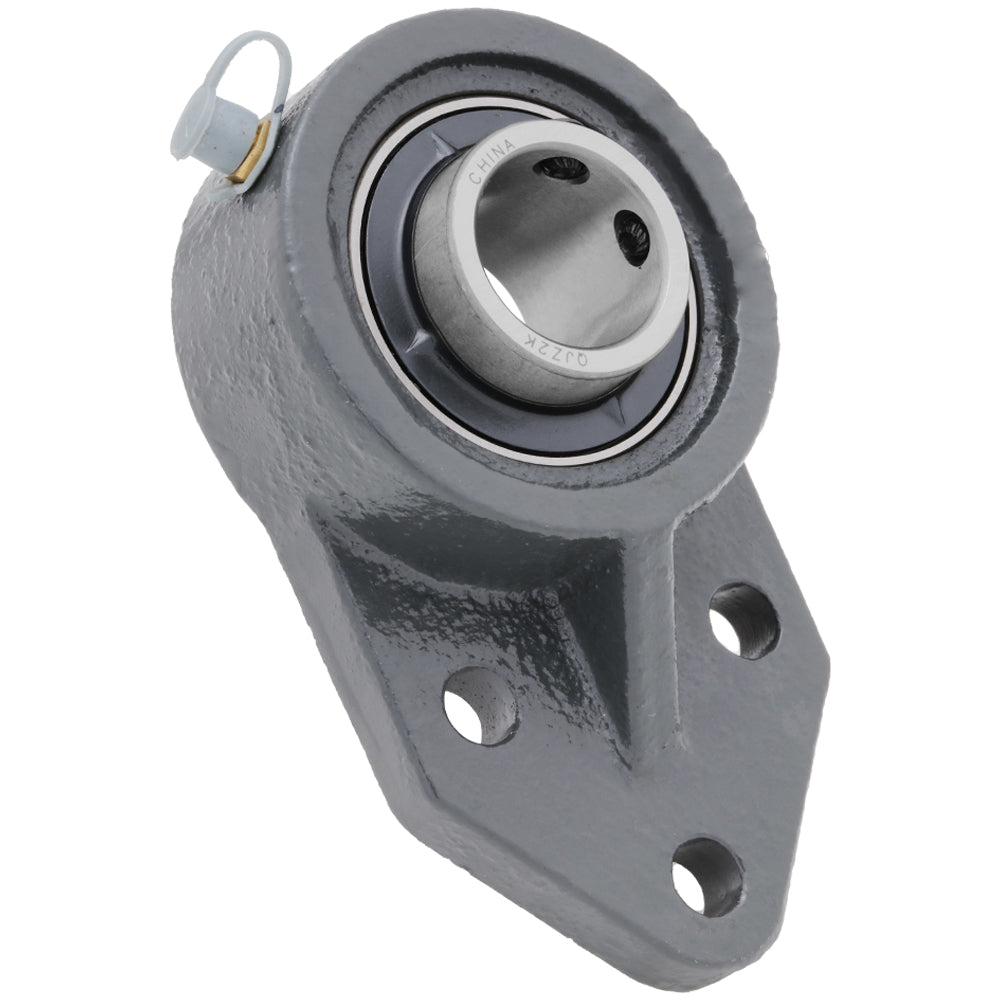

3-Bolt Flange Bracket Mounted Unit Bearing

The UC series 3-bolt mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (UCW202) and housing(FB203) with set-screw locking for secure shaft attachment, easy installation, and long service life.

Model UCFB202
Shaft Bore (ID) 0.591 in | 15 mm
Length 4.094 in | 104 mm
Height 1.177 in | 29.896 mm
Width 2.165 in | 55 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
