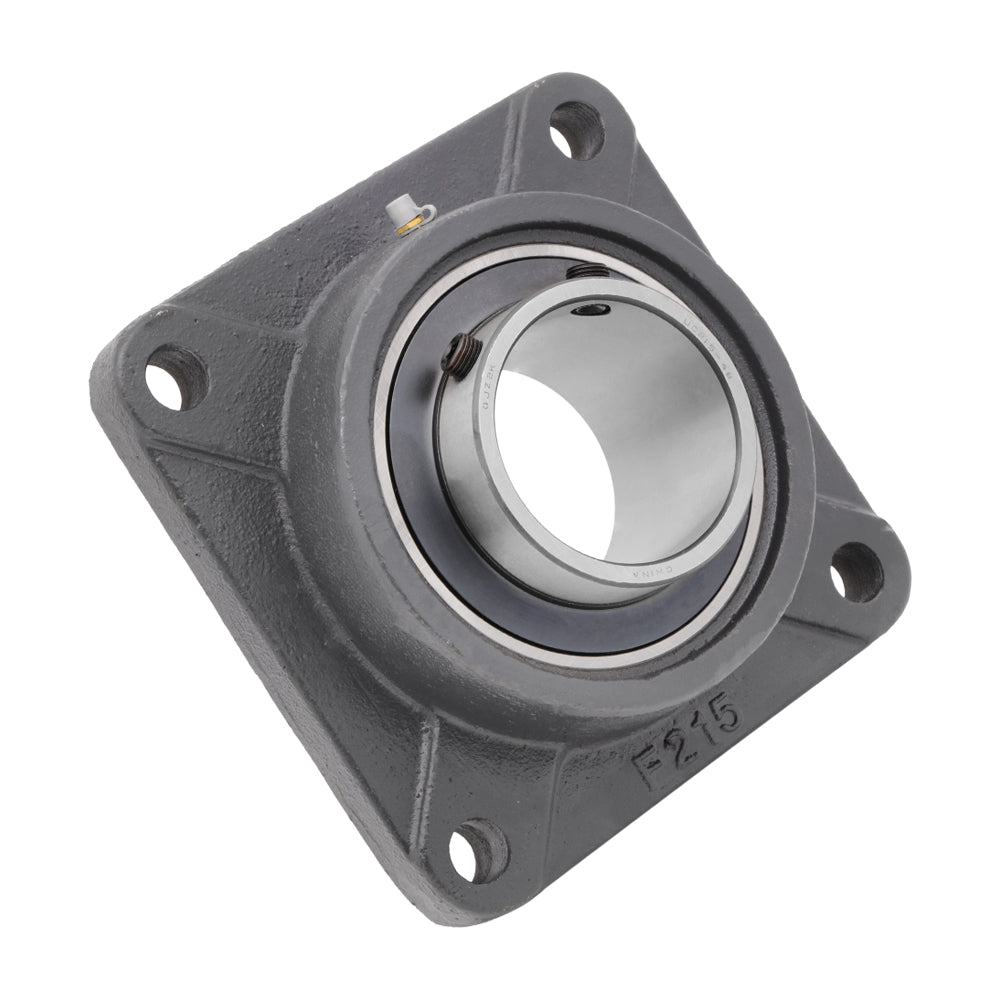

UCF215-48, 4-Bolt Flange Mounted Ball Bearing, 3.0" Bore (ID), Insert Bearing: UC215-48, Housing: F204

In stock
SKU: UCF215-48
$72.99
Product details
  • Type Mounted Unit Bearings
  • Part Number UCF215-48
  • Insert Bearing UC215-48
  • Housing F215
  • Bore (ID) 3 in | 76.2 mm
  • Length 7.874 in | 200 mm
  • Height (Thickness) 3.091 in | 78.5 mm
  • Bolt-to-Bolt Spacing 6.26 in | 159 mm
Description

4-Bolt Flange Mounted Unit Ball Bearing

The UC series 4-bolt square flange mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Designed with a square flange housing and secure locking insert bearing, these units ensure stable mounting and long service life.

Part Number UCF215-48
Shaft Bore (ID) 3 in | 76.2 mm
Height 3.091 in | 78.5 mm
Length 7.874 in | 200 mm
Bolt to Bolt Spacing 6.26 in | 159 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
