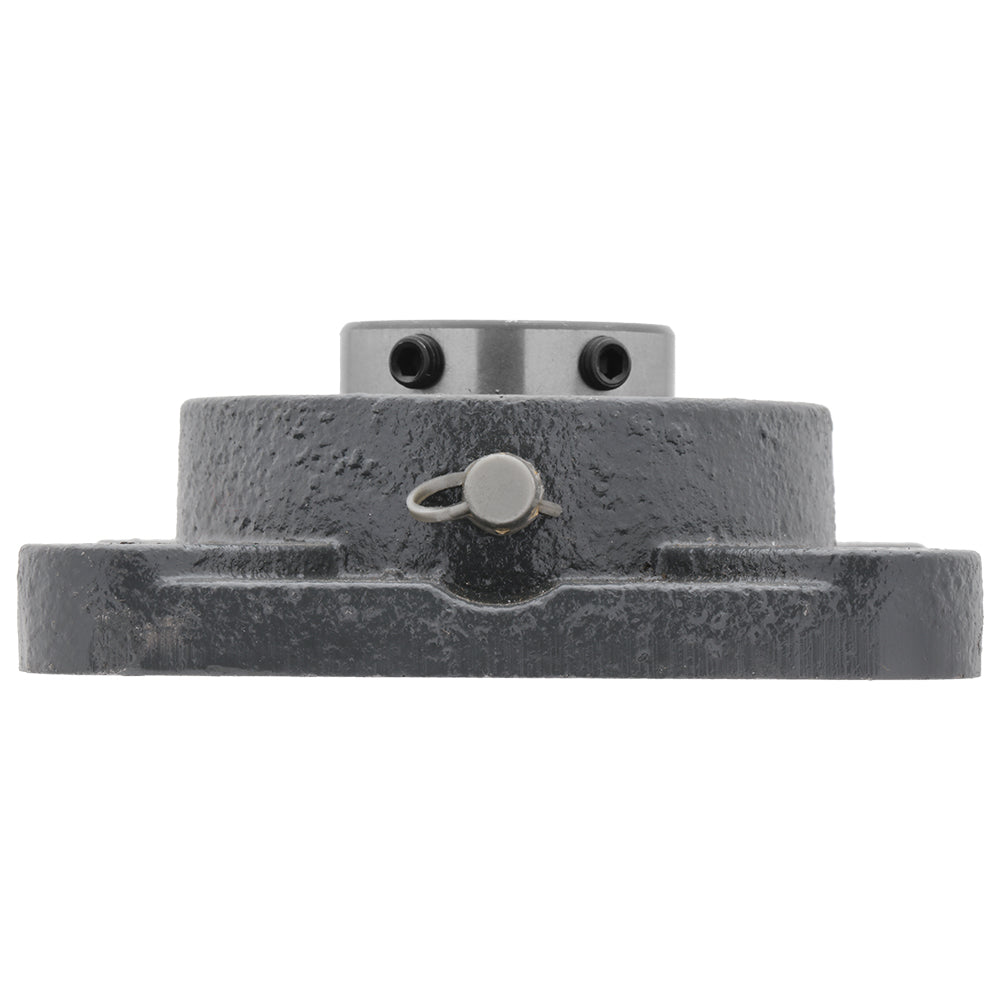

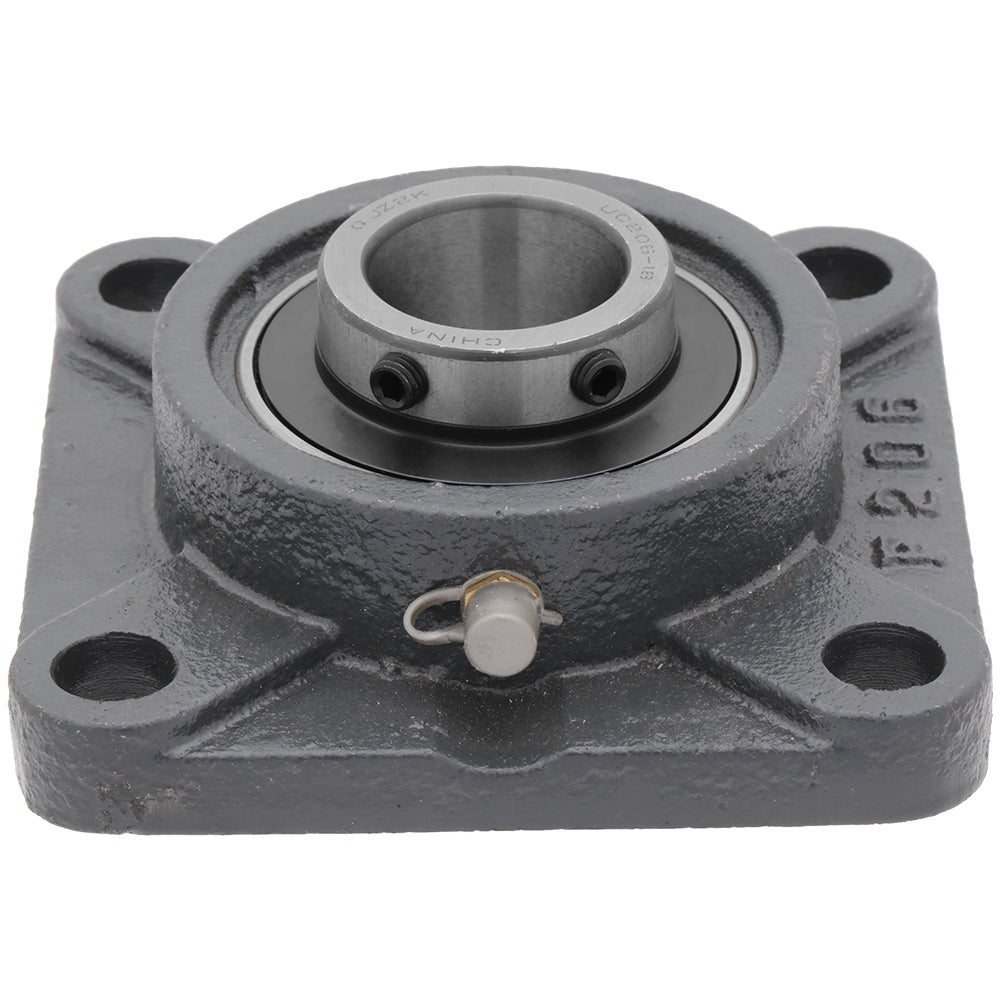

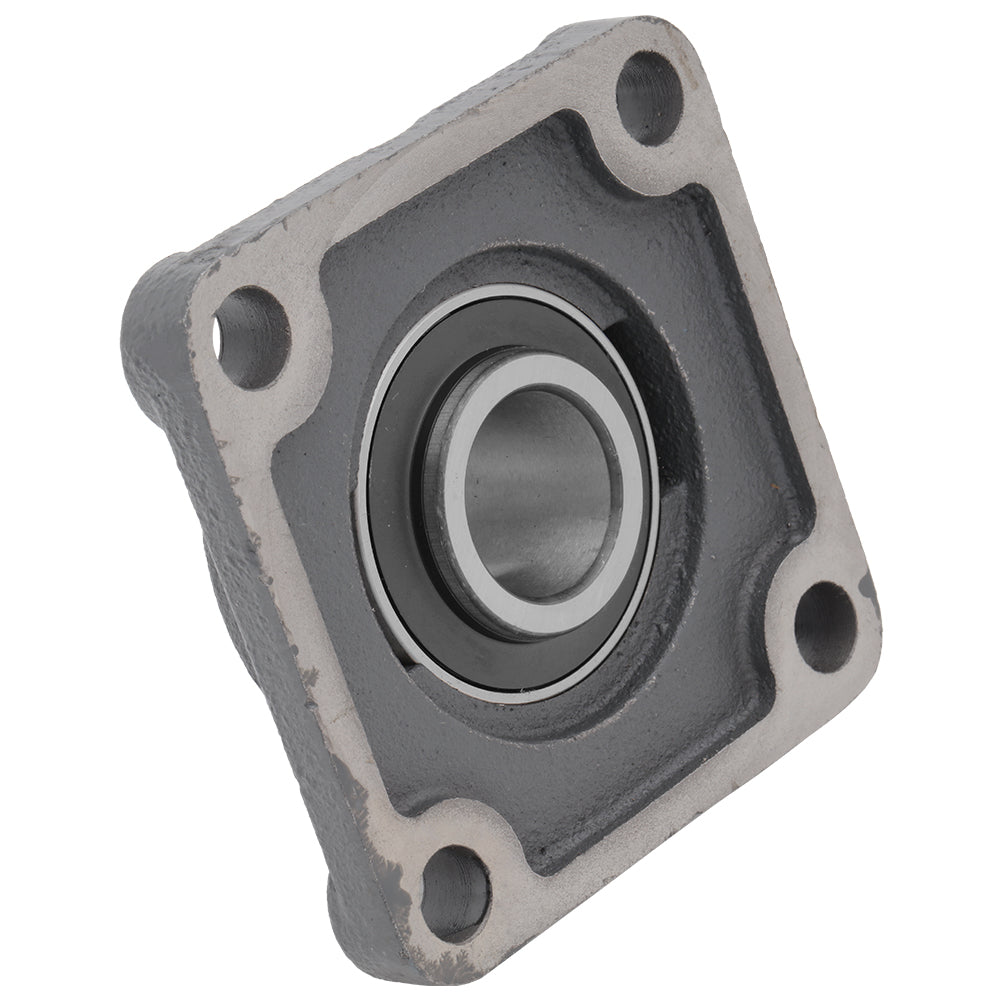

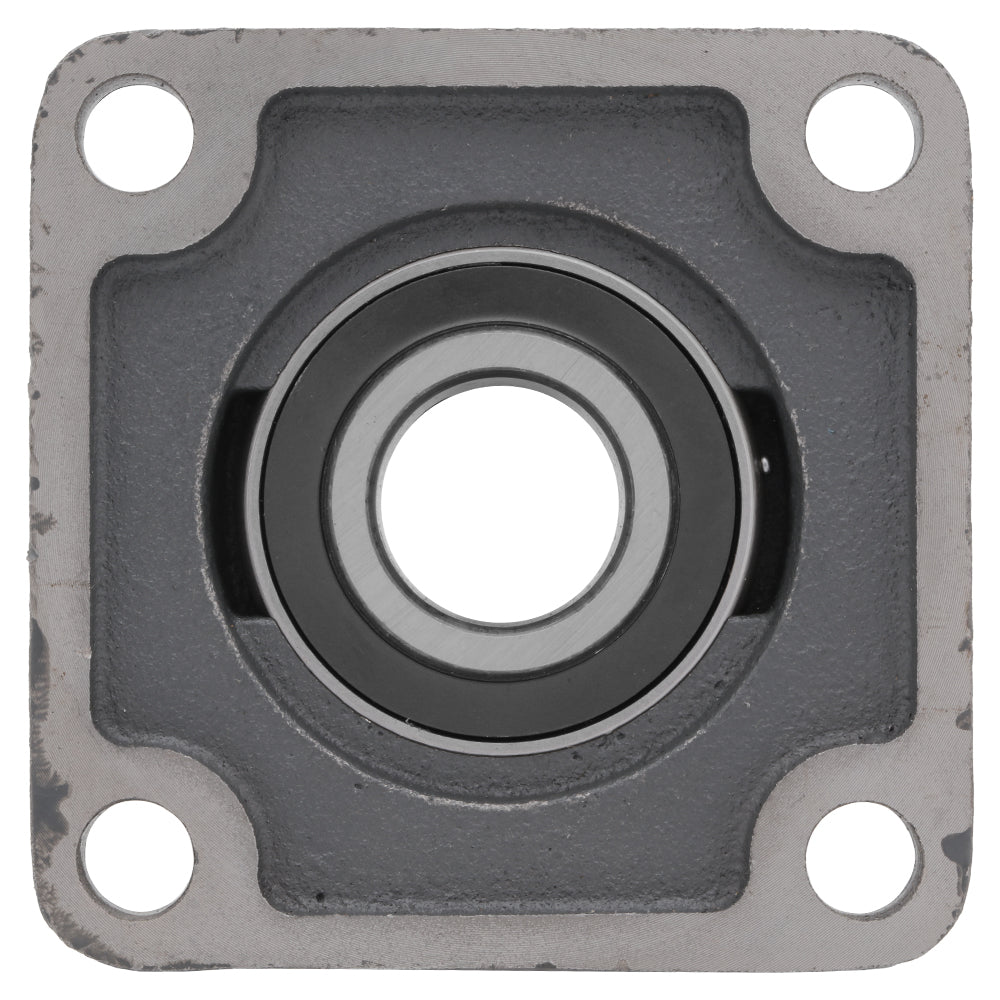

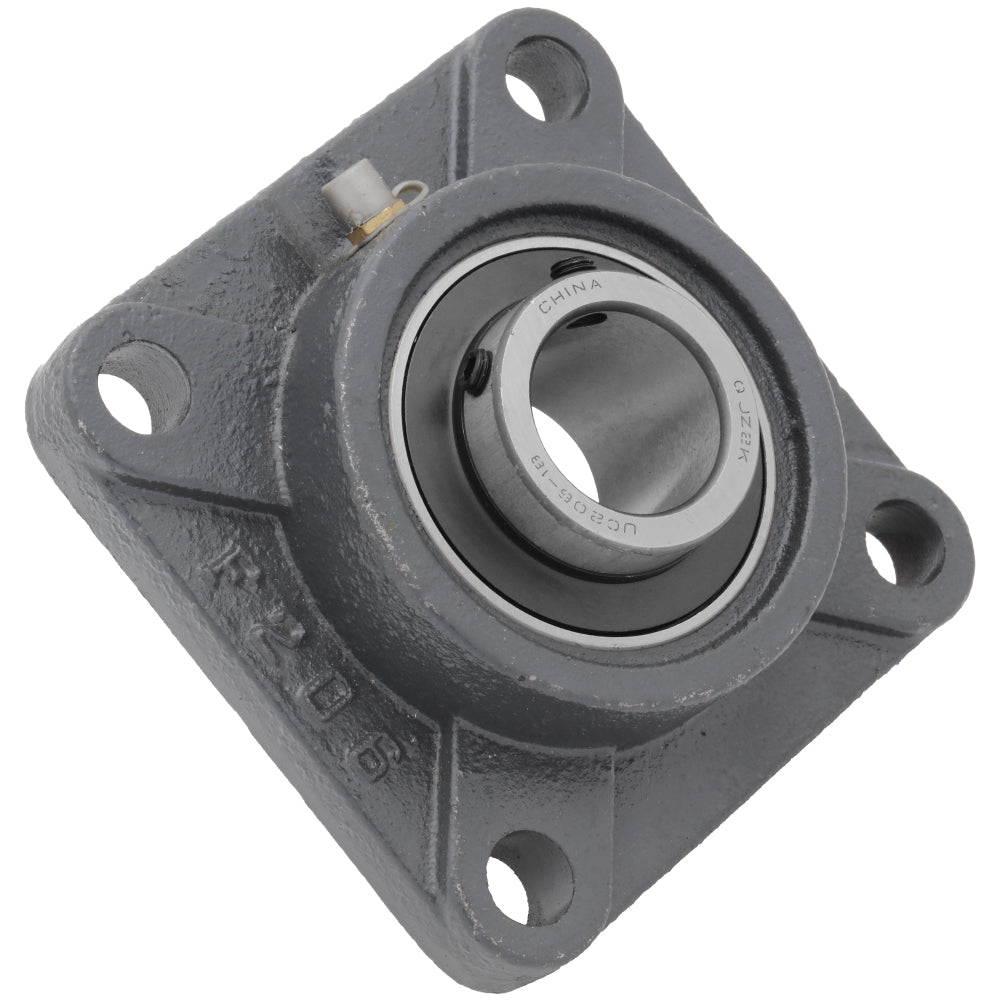

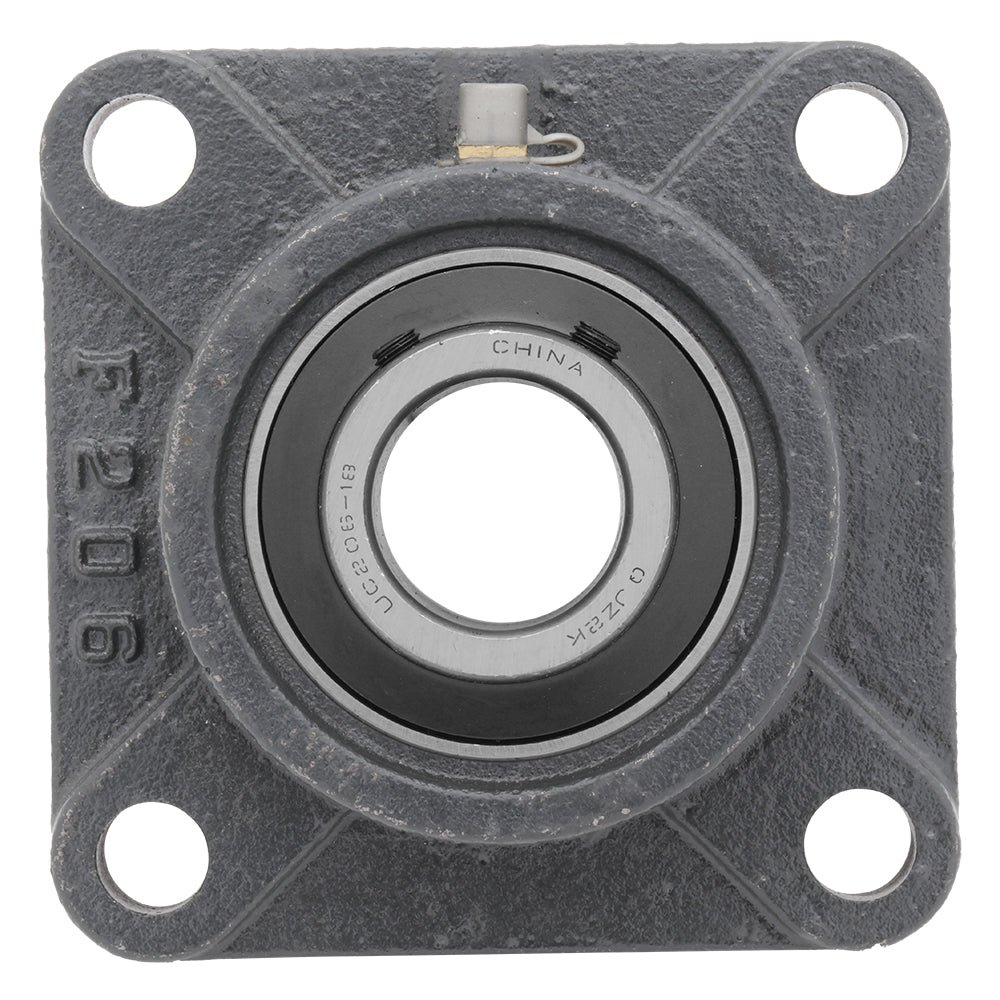

UCF206-18, 4-Bolt Flange Mounted Ball Bearing, 1.125" Bore (ID), Insert Bearing: UC206-18, Housing: F204

In stock
SKU: UCF206-18
$19.99
Product details
  • Type Mounted Unit Bearings
  • Part Number UCF206-18
  • Insert Bearing UC206-18
  • Housing F206
  • Bore (ID) 1.125 in | 28.575 mm
  • Length 4.252 in | 108 mm
  • Height (Thickness) 1.583 in | 40.2 mm
  • Bolt-to-Bolt Spacing 3.268 in | 83 mm
Description

4-Bolt Flange Mounted Unit Ball Bearing

The UC series 4-bolt square flange mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Designed with a square flange housing and secure locking insert bearing, these units ensure stable mounting and long service life.

Part Number UCF206-18
Shaft Bore (ID) 1.125 in | 28.575 mm
Height 1.583 in | 40.2 mm
Length 4.252 in | 108 mm
Bolt to Bolt Spacing 3.268 in | 83 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
