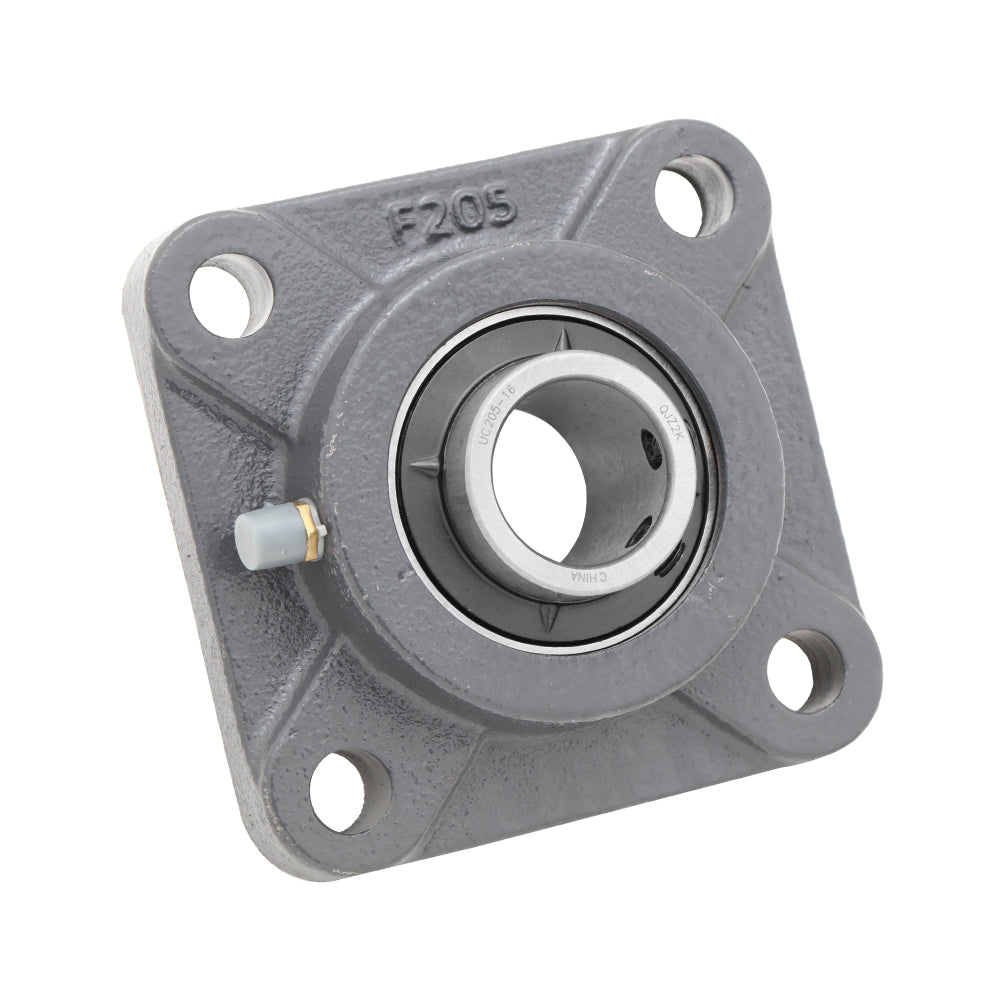

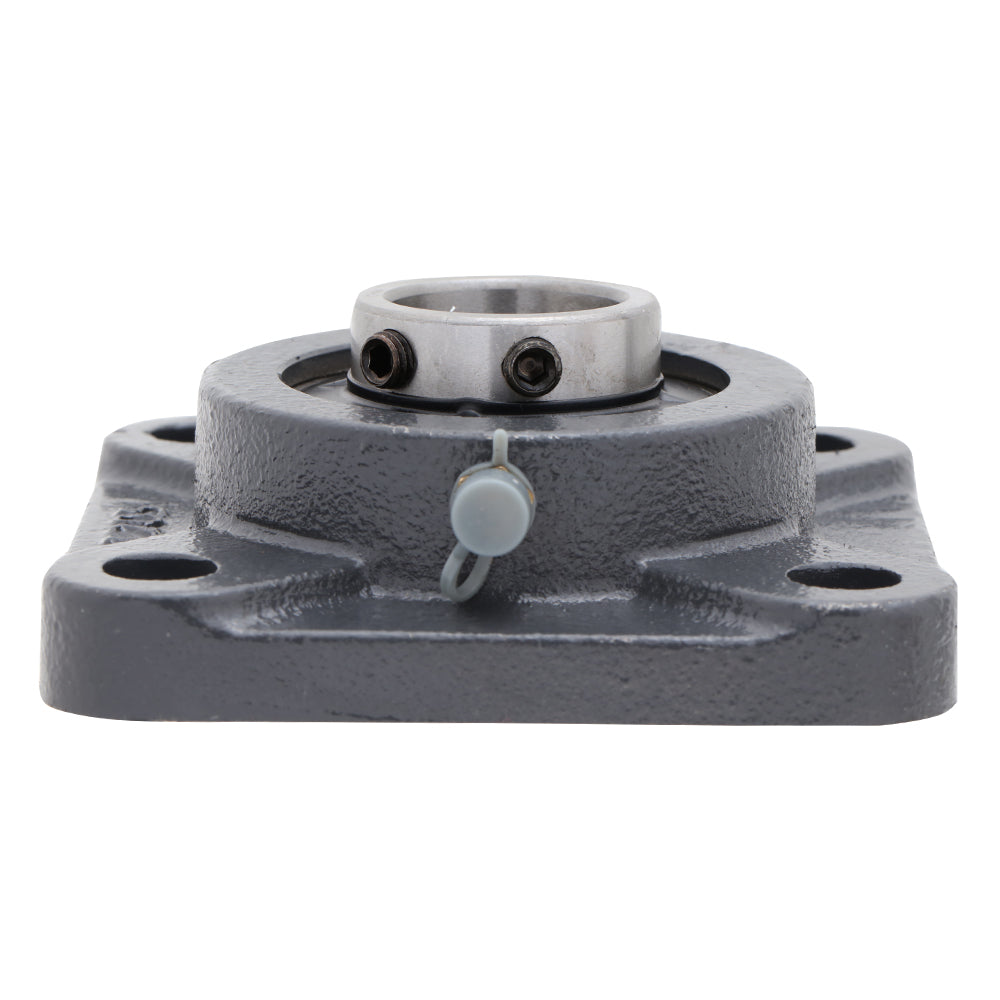

UCF205-16, 4-Bolt Flange Mounted Ball Bearing, 1.0" Bore (ID), Insert Bearing: UC205-16, Housing: F204

In stock
SKU: UCF205-16
$16.99
Product details
  • Type Mounted Unit Bearings
  • Part Number UCF205-16
  • Insert Bearing UC205-16
  • Housing F205
  • Bore (ID) 1 in | 25.4 mm
  • Length 3.74 in | 95 mm
  • Height (Thickness) 1.406 in | 35.7 mm
  • Bolt-to-Bolt Spacing 2.756 in | 70 mm
Description

4-Bolt Flange Mounted Unit Ball Bearing

The UC series 4-bolt square flange mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Designed with a square flange housing and secure locking insert bearing, these units ensure stable mounting and long service life.

Part Number UCF205-16
Shaft Bore (ID) 1 in | 25.4 mm
Height 1.406 in | 35.7 mm
Length 3.74 in | 95 mm
Bolt to Bolt Spacing 2.756 in | 70 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
