QJZ

UCF204-12, 4-Bolt Flange Mounted Unit Bearing, 3/4 in Bore (ID), Insert Bearing: UC204-12, Housing: FS204

In stock
SKU: UCF204-12
All of our mounted unit bearings are supplied fully assembled. Please contact us if you require a specific dimension that is not listed.
$8.50

Product details

  • Type Mounted Unit Bearings
    • Part Number UCF204-12
    • Insert Bearing UC202
    • Housing FS202
    • Bore (ID) 0.75 in
    • Flange Length 3.386 in | 86 mm
    • Flange Height (Thickness) 1.531 in | 38.9 mm
    • Bolt-to-Bolt Spacing 2.5 in | 63.5 mm
Description

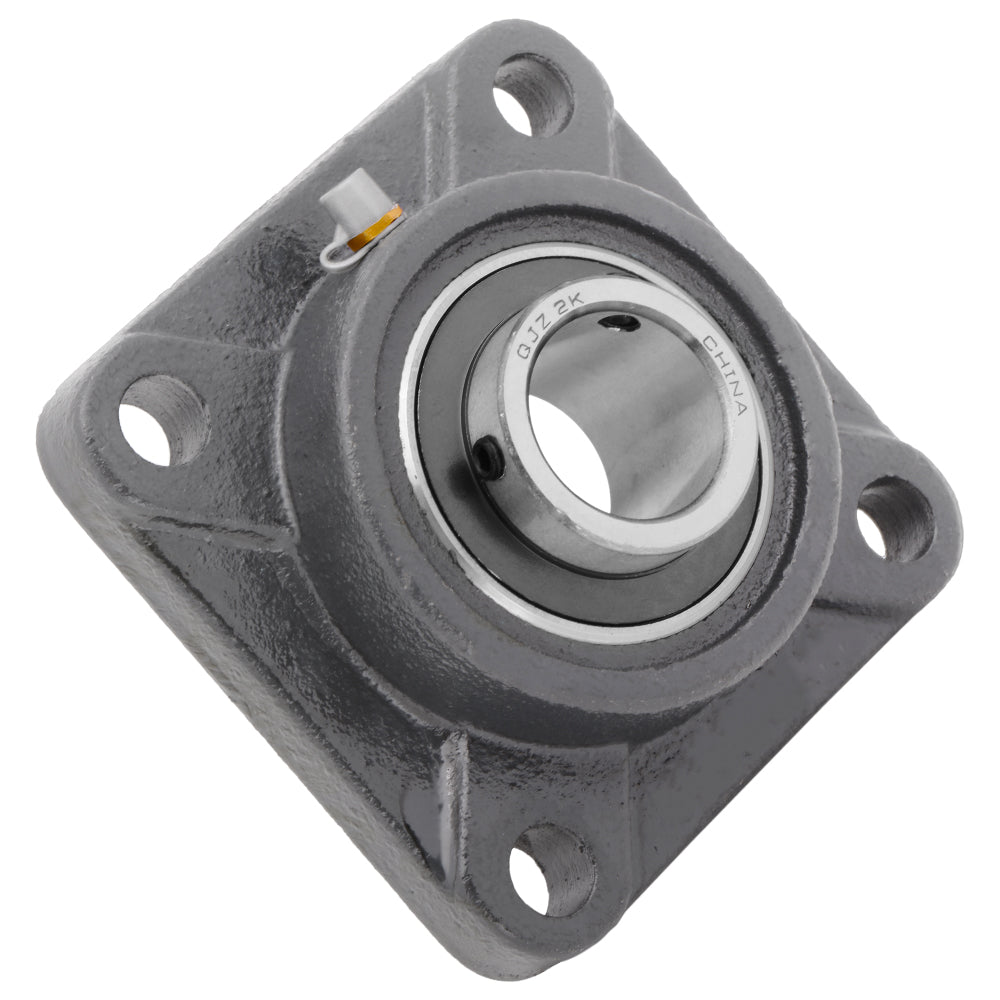

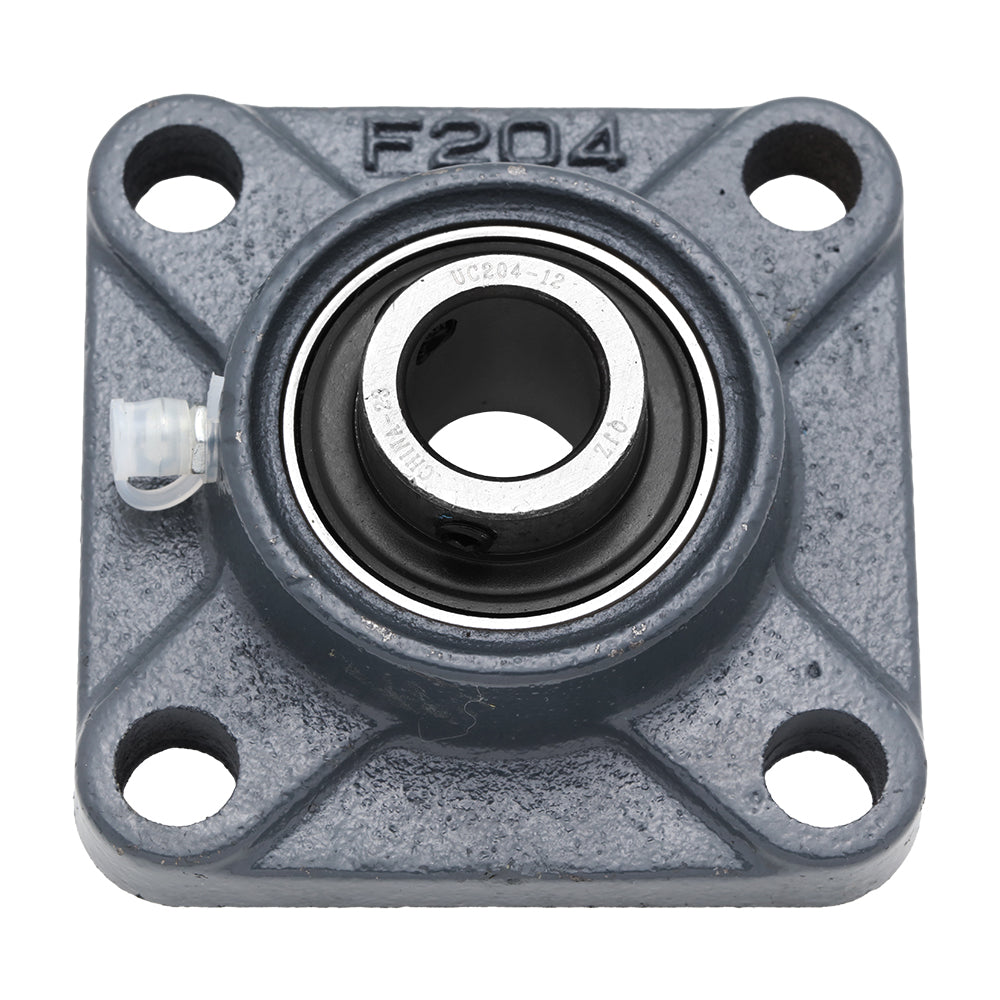

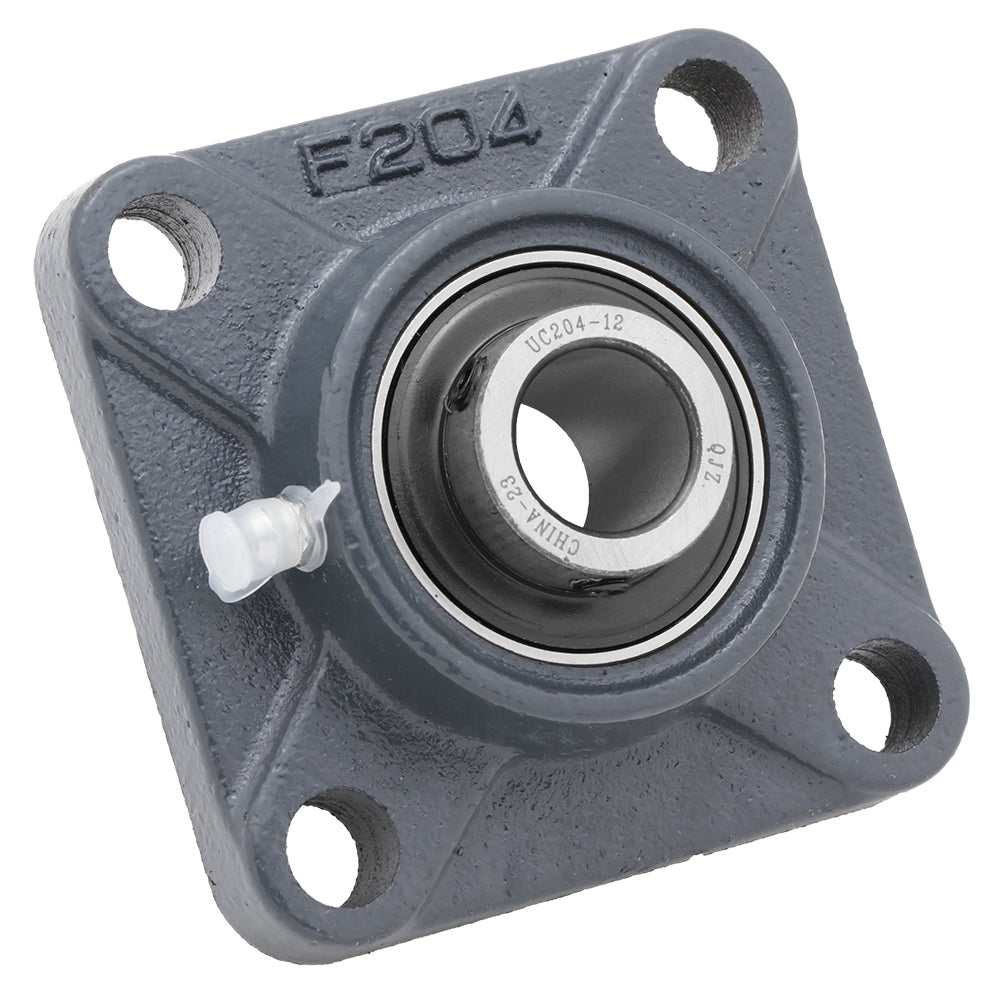

4-Bolt Flange Mounted Unit Ball Bearing: UCF204-12

The UC series 4-bolt flange mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (UC204-12) and a cast iron housing (FS204) with set-screw locking for secure shaft attachment, easy installation, and long service life.

Model UCF204-12
Shaft Bore (ID) 0.75 in | 19.05 mm
Length 3.386 in | 86 mm
Height (Thickness) 1.531 in | 38.9 mm
Bolt to Bolt Spacing 2.5 in | 63.5 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
