QJZ

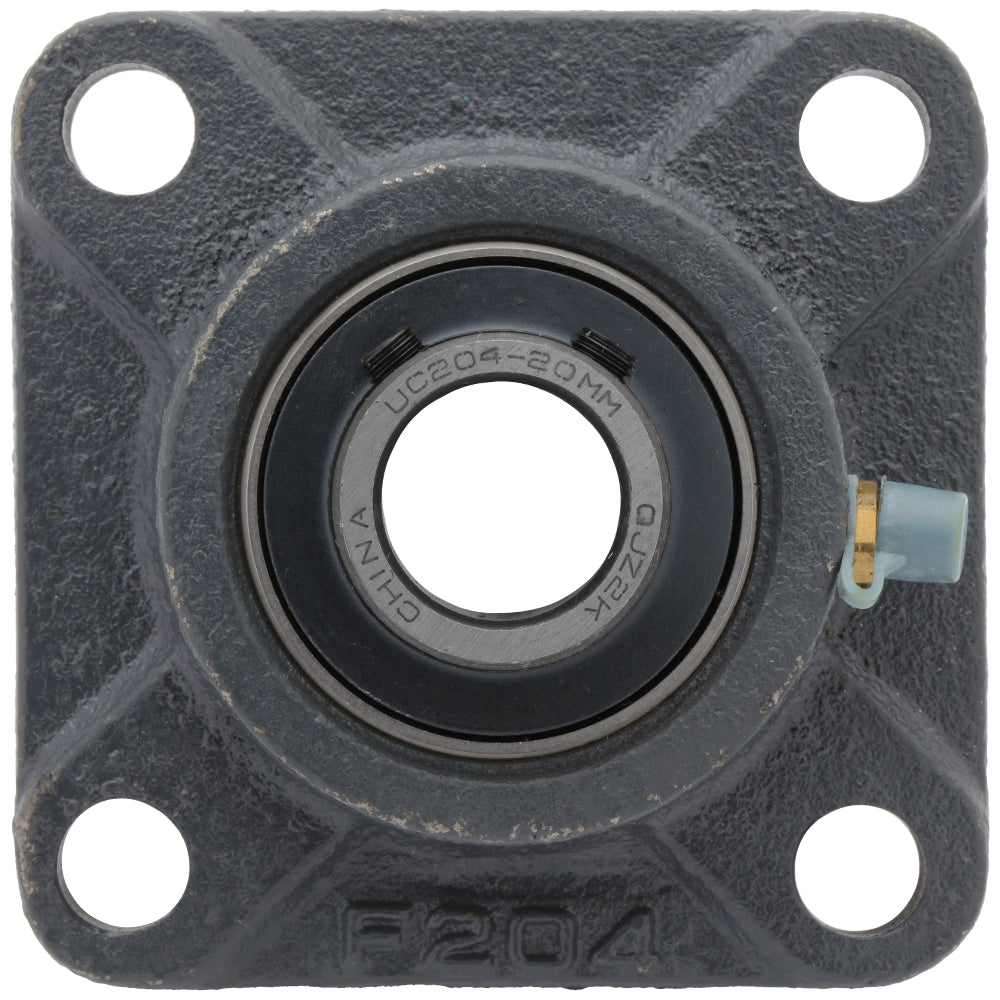

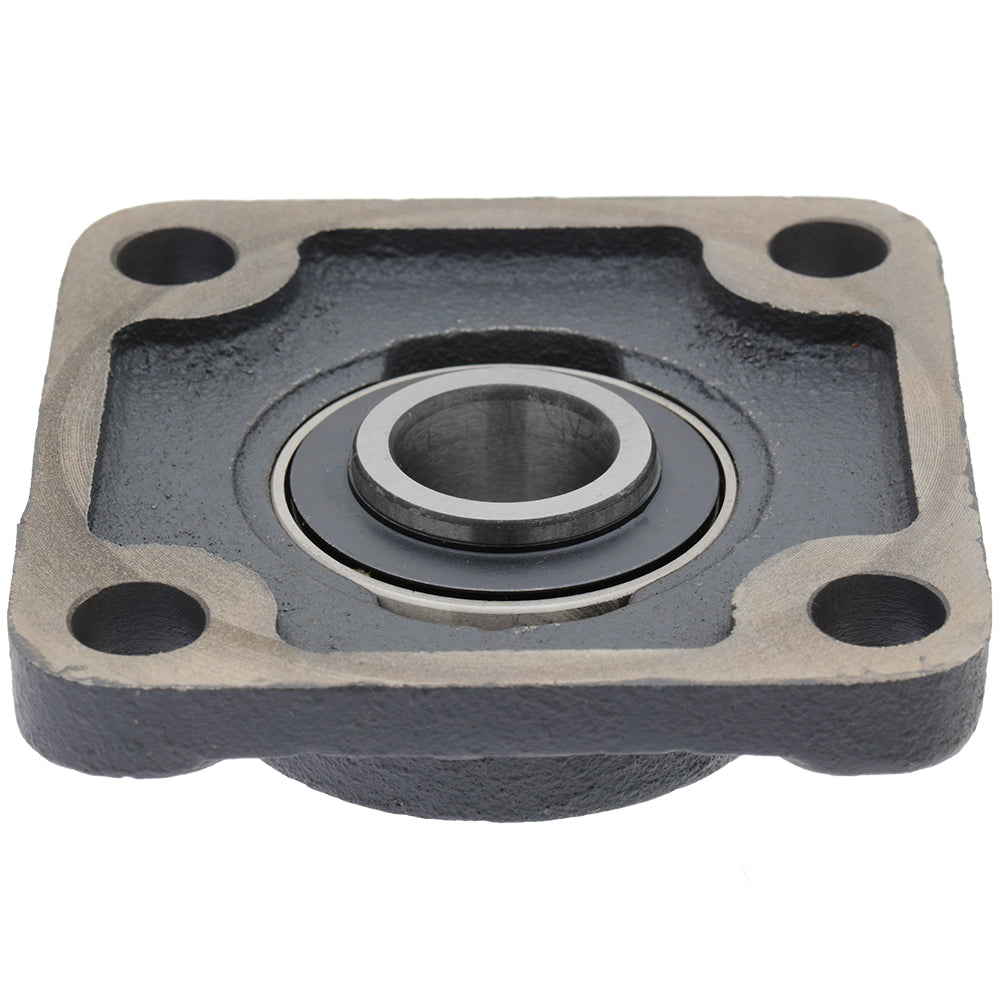

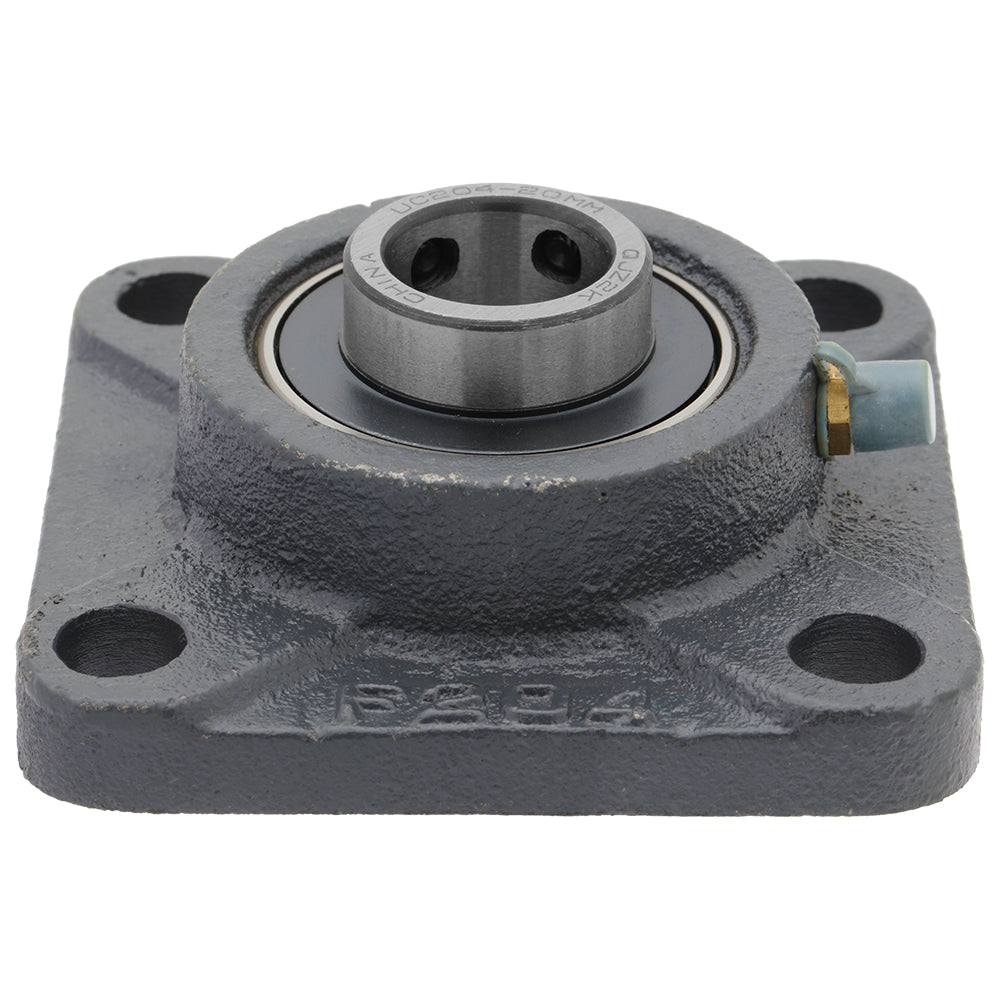

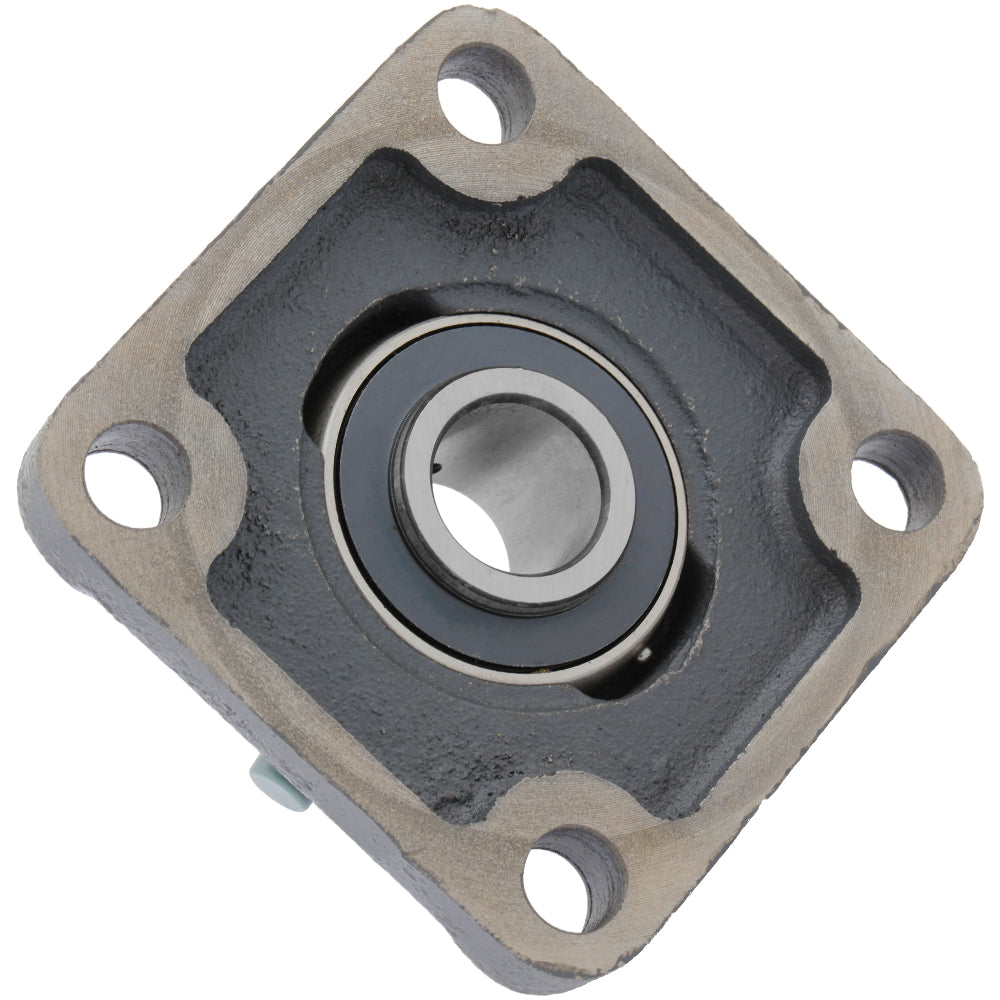

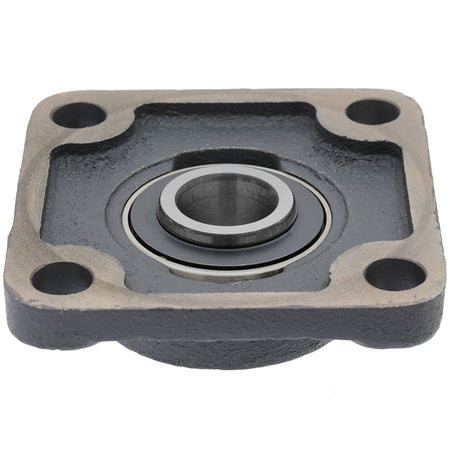

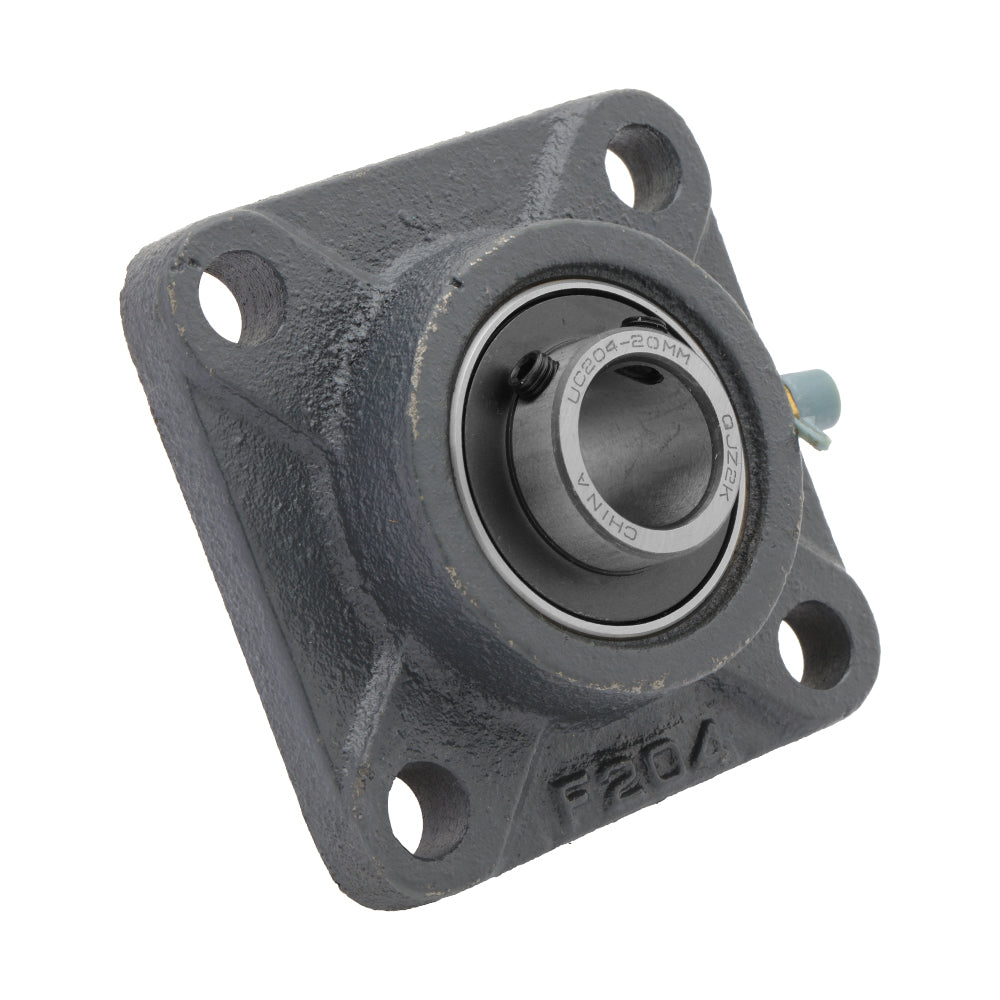

UCF204, 4-Bolt Flange Mounted Ball Bearing, 0.787" Bore (ID), Insert Bearing: UC204, Housing: F204

In stock
SKU: UCF204
$16.99
Product details
  • Type Mounted Unit Bearings
  • Part Number UCF204
  • Insert Bearing UC204
  • Housing F204
  • Bore (ID) 0.787 in | 20 mm
  • Length 3.386 in | 86 mm
  • Height (Thickness) 1.311 in | 33.3 mm
  • Bolt-to-Bolt Spacing 2.52 in | 64 mm
Description

4-Bolt Flange Mounted Unit Ball Bearing

The UC series 4-bolt square flange mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Designed with a square flange housing and secure locking insert bearing, these units ensure stable mounting and long service life.

Part Number UCF204
Shaft Bore (ID) 0.787 in | 20 mm
Height 1.311 in | 33.3 mm
Length 3.386 in | 86 mm
Bolt to Bolt Spacing 2.52 in | 64 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
