UCAK213, Pillow Block Mounted Unit Bearing, 2.559 in Bore (ID), Insert Bearing: UC213, Housing: AK213

Out of stock
SKU: UCAK213
All of our mounted unit bearings are provided fully assembled. Should you require to receive insert bearing and housing separately, please contact us for assistance.
$61.25

Product details

  • Type Mounted Unit Bearings
    • Part Number UCAK213
    • Housing AK213
    • Insert Bearing UC213
    • Bore (ID) 2.56 in
    • Height (in) 5.551 in | 141 mm
    • Length (in) 9.764 in | 248 mm

Please contact us if you have more questions on the dimensions.

Description

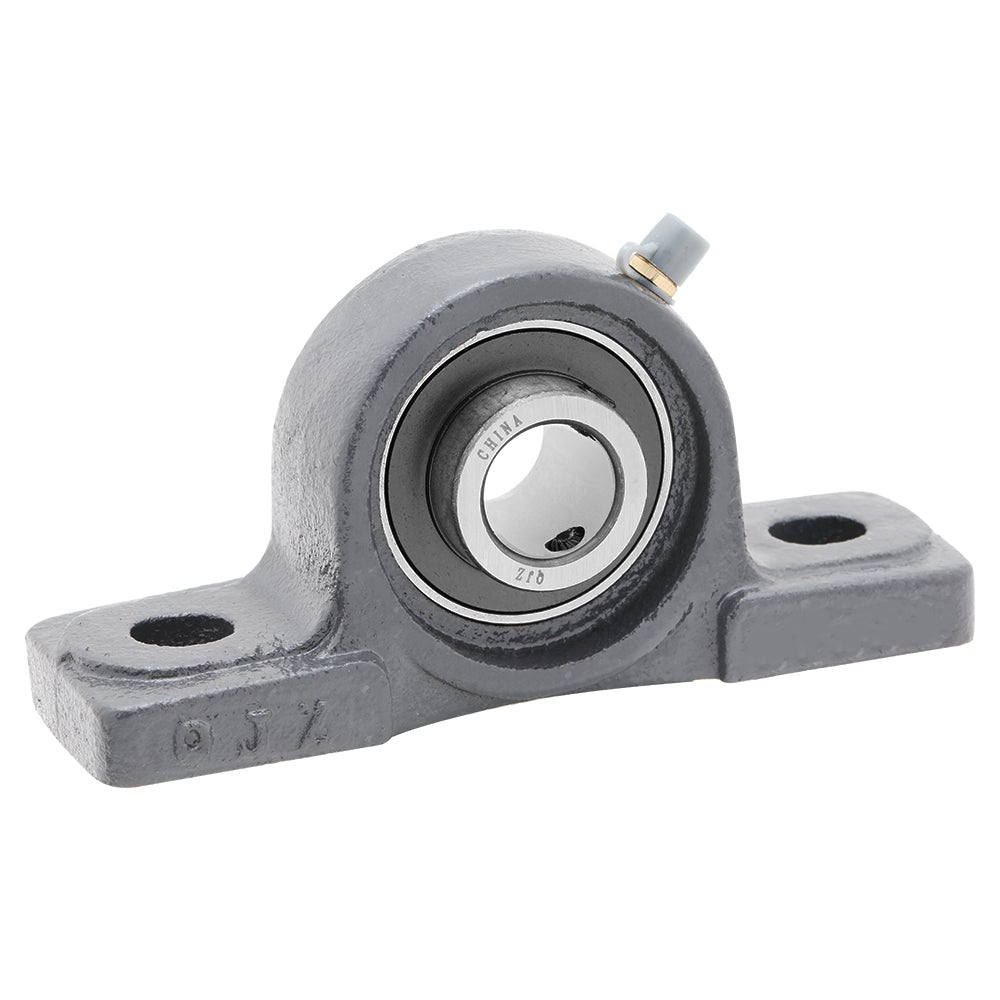

Pillow Block Mounted Unit Bearing

The UC series Pillow Block Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with set-screw locking for secure shaft attachment, easy installation, and long service life.

Model UCAK213
Shaft Bore (ID) 2.559 in | 65 mm
Length 9.764 in | 248 mm
Height (Thickness) 5.551 in | 141 mm
Width 2.756 in | 70 mm
Bolt to Bolt Spacing 7.638 in | 194 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
