UCAK212-37, Pillow Block Mounted Unit Bearing, 2.3125 in Bore (ID), Insert Bearing: UC212-37, Housing: AK212

In stock
$49.75
Product details
  • Type Mounted Unit Bearings
  • Part Number UCAK212-37
  • Housing AK212
  • Insert Bearing UC212-37
  • Bore (ID) 2.3125 in | 58.738 mm
  • Height 5.354 in | 136 mm
  • Length 9.488 in | 241 mm
  • Bolt to Bolt 7.52 in | 191 mm
Description

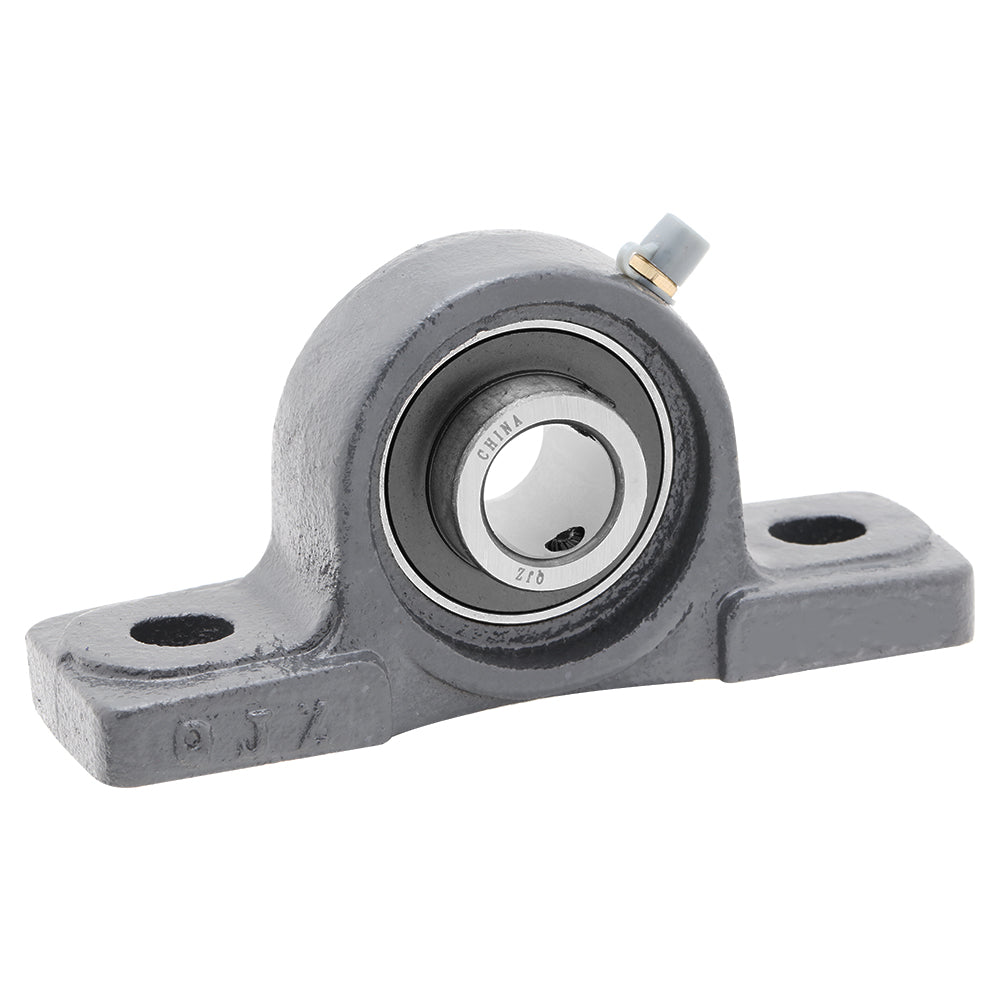

Pillow Block Mounted Unit Bearing

The UC series Pillow Block Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with set-screw locking for secure shaft attachment, easy installation, and long service life.

Model UCAK212-37
Shaft Bore (ID) 2.3125 in | 58.738 mm
Length 9.488 in | 241 mm
Height (Thickness) 5.354 in | 136 mm
Width 2.52 in | 64 mm
Bolt to Bolt Spacing 7.52 in | 191 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
