UCAK210-31, Pillow Block Mounted Unit Bearing, 1.9375 in Bore (ID), Insert Bearing: UC210-31, Housing: AK210

In stock
$30.25
Product details
  • Type Mounted Unit Bearings
  • Part Number UCAK210-31
  • Housing AK210
  • Insert Bearing UC210-31
  • Bore (ID) 1.938 in | 49.213 mm
  • Height 4.39 in | 111.5 mm
  • Length 7.992 in | 203 mm
  • Bolt to Bolt 6.26 in | 159 mm
Description

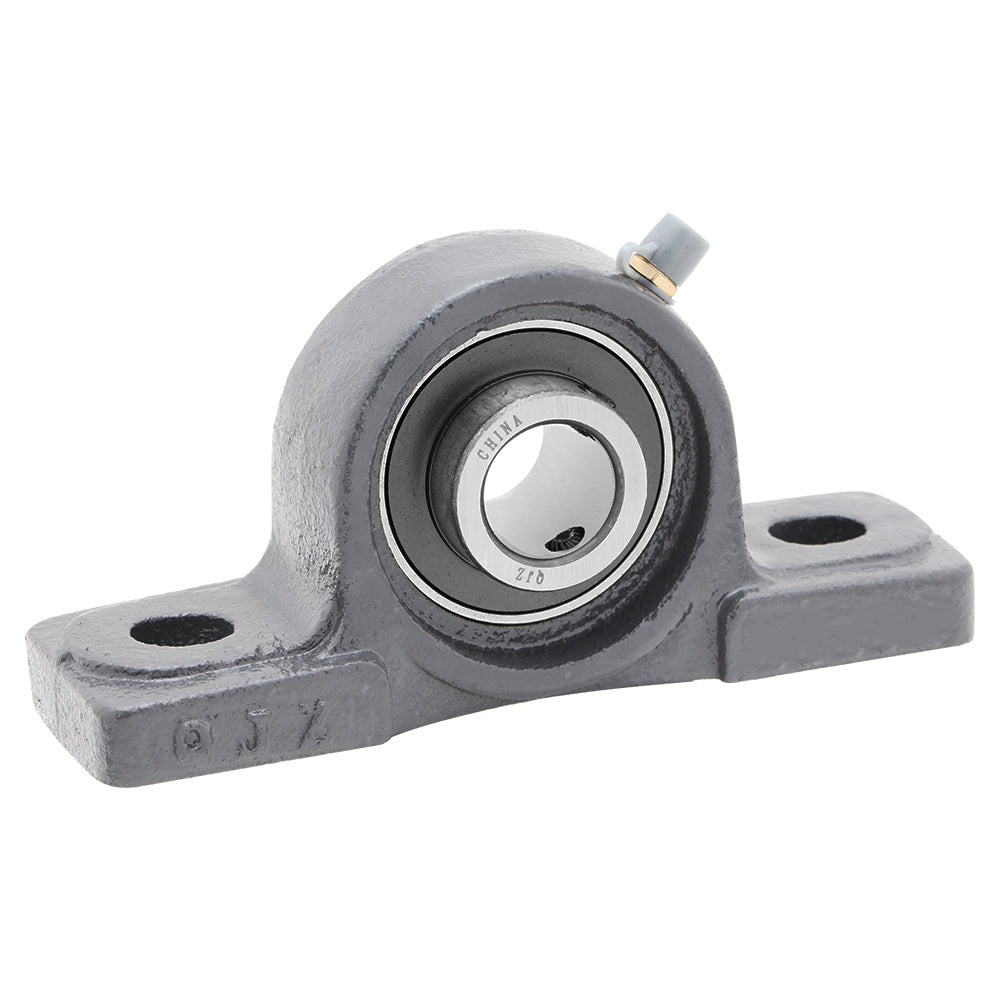

Pillow Block Mounted Unit Bearing

The UC series Pillow Block Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with set-screw locking for secure shaft attachment, easy installation, and long service life.

Model UCAK210-31
Shaft Bore (ID) 1.938 in | 49.213 mm
Length 7.992 in | 203 mm
Height (Thickness) 4.39 in | 111.5 mm
Width 2.244 in | 57 mm
Bolt to Bolt Spacing 6.26 in | 159 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
